TOYOTA SCION IQ NGJ10L-BGXNGA / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

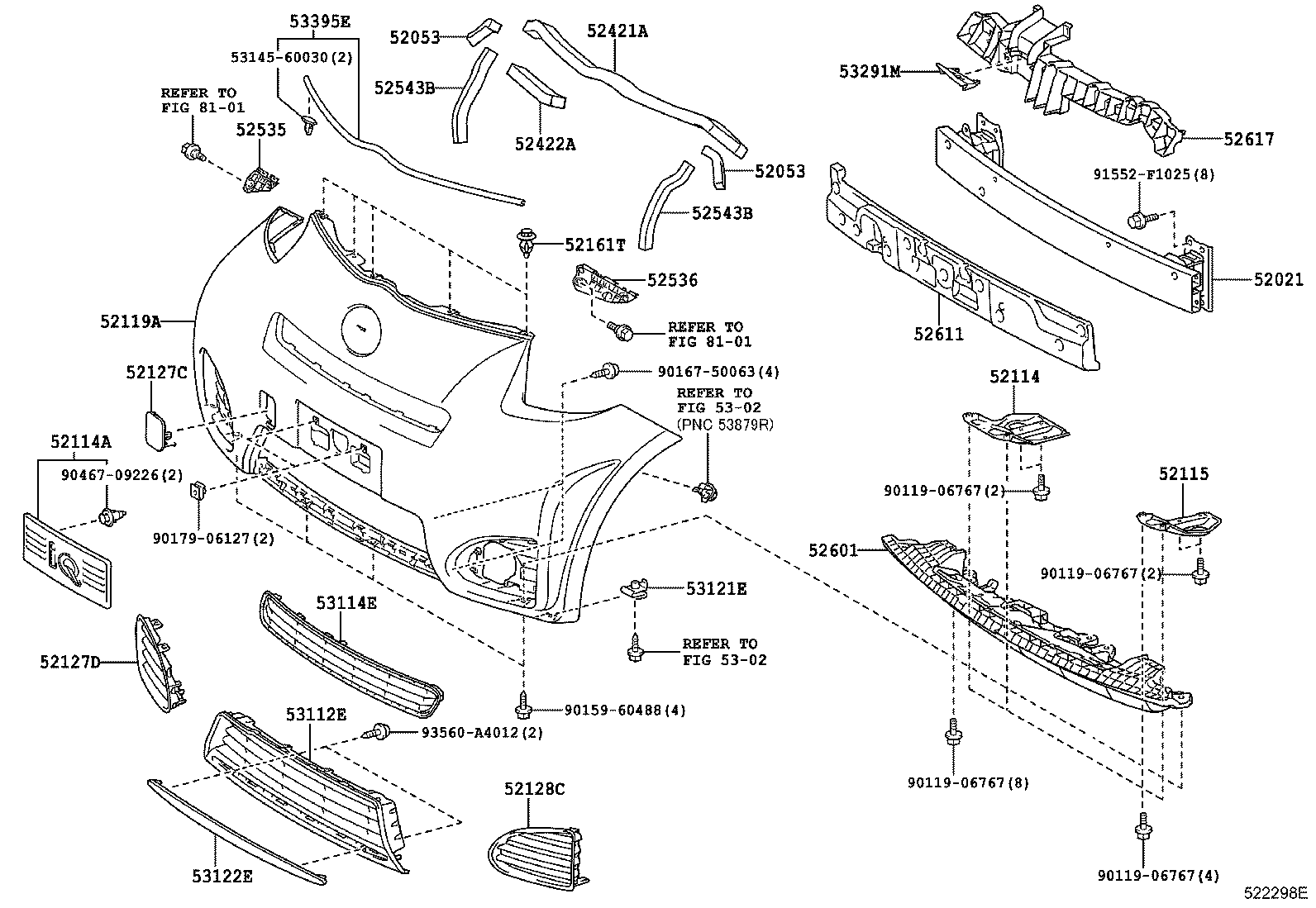

FRONT BUMPER BUMPER STAY

(1107- )

 SCION IQ |  FRONT BUMPER BUMPER STAY 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52053 - PAD SUB-ASSY, FRONT BUMPER 52053 - PAD SUB-ASSY, FRONT BUMPER 52114 - GUARD, BUMPER, FRONT RH 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52115 - GUARD, BUMPER, FRONT LH 52119A - COVER, FRONT BUMPER 52127C - COVER, FRONT BUMPER HOLE 52127D - COVER, FRONT BUMPER HOLE, RH 52128C - COVER, FRONT BUMPER HOLE, LH 52161T - PIECE, FRONT BUMPER 52421A - PAD, FRONT BUMPER 52422A - PAD, FRONT BUMPER, RH 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52543B - SEAL, FRONT BUMPER 52543B - SEAL, FRONT BUMPER 52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY 52611 - ABSORBER, FRONT BUMPER ENERGY 52617 - ABSPRBER, RADIATOR SUPPORT, UPPER ** Refer Fig ** Refer Fig 53112E - GRILLE, RADIATOR, LOWER NO.1 53114E - GRILLE, RADIATOR, UPPER 53121E - CLIP(FOR FRONT BUMPER), NO.1 53122E - MOULDING, RADIATOR GRILLE, LOWER  ** Std Part 53291M - SEAL, RADIATOR SUPPORT TO FRAME, RH 53395E - SEAL, HOOD TO FRONT END PANEL ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
