TOYOTA RAV4 NAP GSA33L-CNAGKA / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

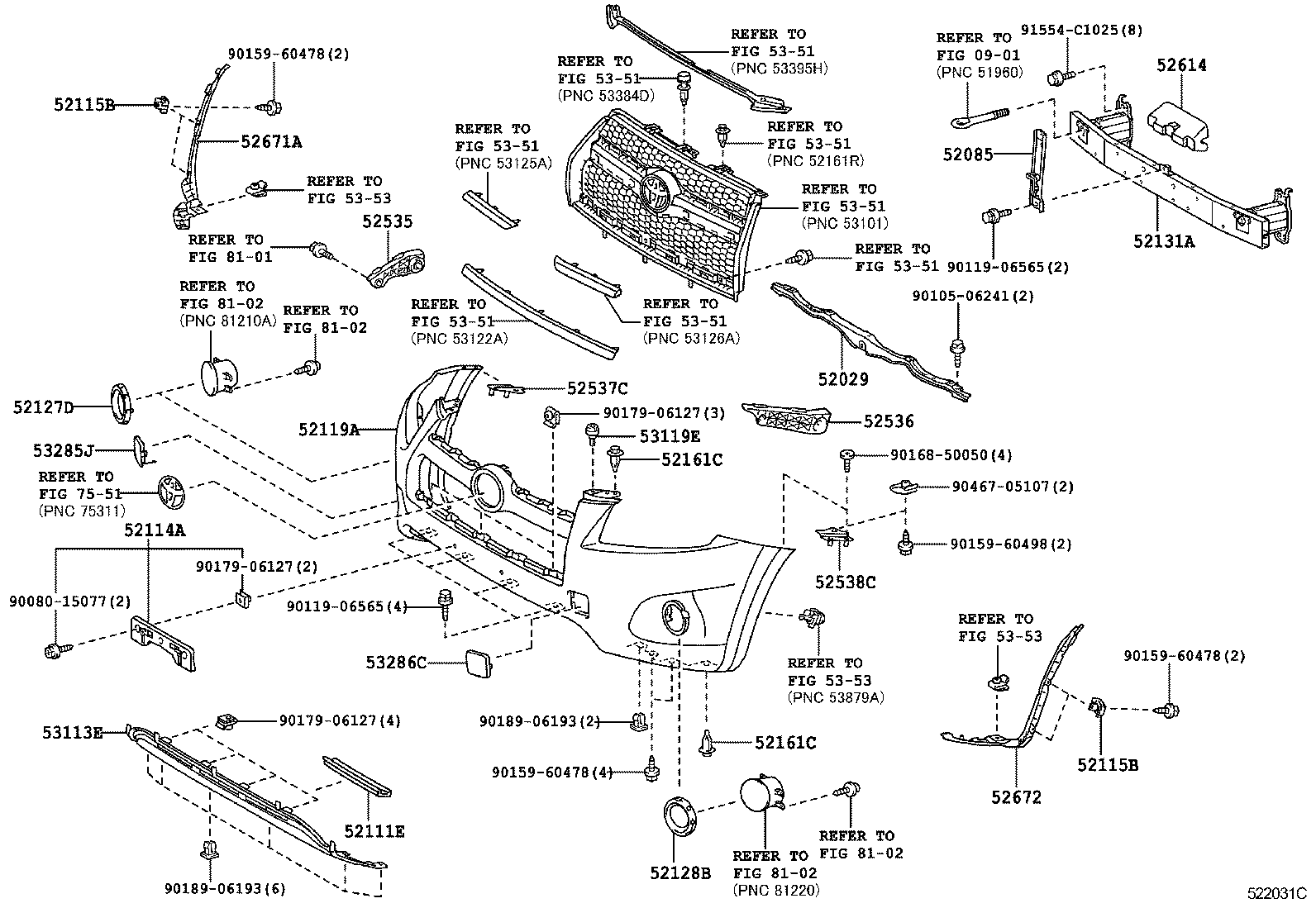

FRONT BUMPER BUMPER STAY

(0811- )NAP..LIMD

 RAV4 NAP |  FRONT BUMPER BUMPER STAY ** Refer Fig 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER 52085 - STAY SUB-ASSY, FRONT BUMPER, CENTER 52111E - BAR, FRONT BUMPER 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52115B - RETAINER, FRONT BUMPER EXTENSION, NO.1 52115B - RETAINER, FRONT BUMPER EXTENSION, NO.1 52119A - COVER, FRONT BUMPER 52127D - COVER, FRONT BUMPER HOLE, RH 52128B - COVER, FRONT BUMPER HOLE, LH 52131A - REINFORCEMENT, FRONT BUMPER 52161C - PIECE, FRONT BUMPER 52161C - PIECE, FRONT BUMPER 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52537C - RETAINER, FRONT BUMPER SIDE, NO.2 RH 52538C - RETAINER, FRONT BUMPER SIDE, NO.2 LH 52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2 52671A - EXTENSION, FRONT BUMPER ARM, RH 52672 - EXTENSION, FRONT BUMPER ARM, LH 53113E - GRILLE, RADIATOR, LOWER NO.2 53119E - PROTECTOR, RADIATOR GRILLE 53285J - COVER, FRONT BUMPER ARM HOLE, RH 53286C - COVER, FRONT BUMPER ARM HOLE, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
