TOYOTA MATRIX AZE144L-DHPNKA / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

(0801- )AZE144

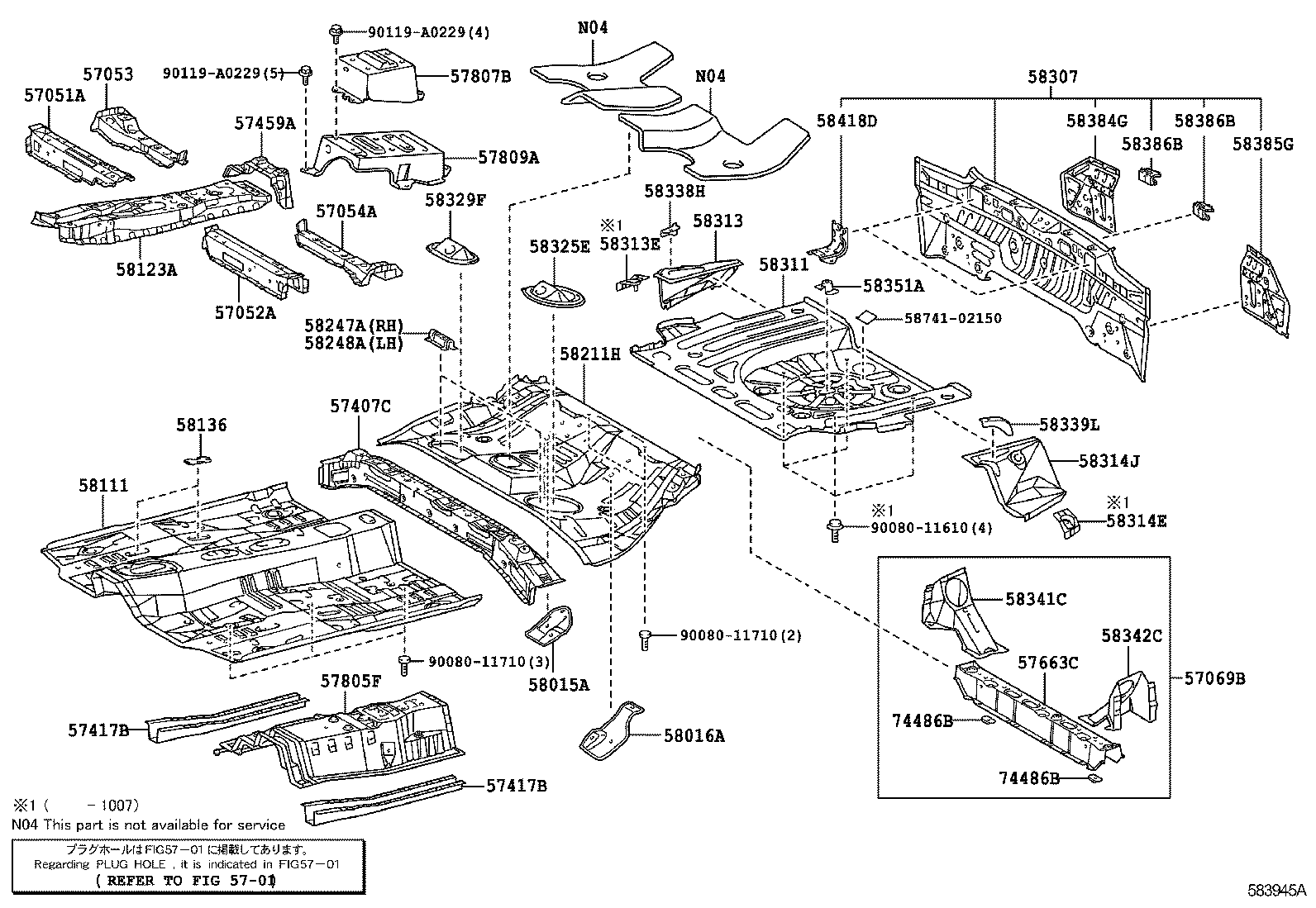

MATRIX | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57069B - MEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 57417B - REINFORCEMENT, FRONT FLOOR UNDER 57417B - REINFORCEMENT, FRONT FLOOR UNDER 57459A - MEMBER, FRONT FLOOR CROSS, NO.2 57663C - MEMBER, REAR FLOOR CROSS, CENTER 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 57807B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2 57809A - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 58111 - PAN, FRONT FLOOR 58123A - SUPPORT, SHIFT & SELECT LEVER 58136 - COVER, FRONT FLOOR HOLE 58211H - PAN, CENTER FLOOR 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58313E - EXTENSION, REAR FLOOR SIDE PANEL, RH 58314E - EXTENSION, REAR FLOOR SIDE PANEL, LH 58314J - PANEL, REAR FLOOR SIDE, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 58338H - REINFORCEMENT, REAR FLOOR PAN, NO.2 RH 58339L - REINFORCEMENT, REAR FLOOR PAN, NO.2 LH 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH 58351A - BRACKET, SPARE WHEEL CARRIER 58384G - GUSSET, LOWER BACK, UPPER RH 58385G - GUSSET, LOWER BACK, UPPER LH 58386B - BRACKET, REAR BUMPER COVER, NO.2 58386B - BRACKET, REAR BUMPER COVER, NO.2 58418D - BRACKET, DECK BOARD, NO.2 ** Std Part 74486B - SUPPORT, BATTERY CLAMP, LOWER 74486B - SUPPORT, BATTERY CLAMP, LOWER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
