TOYOTA 4RUNNER GRN280L-GKAGKA / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

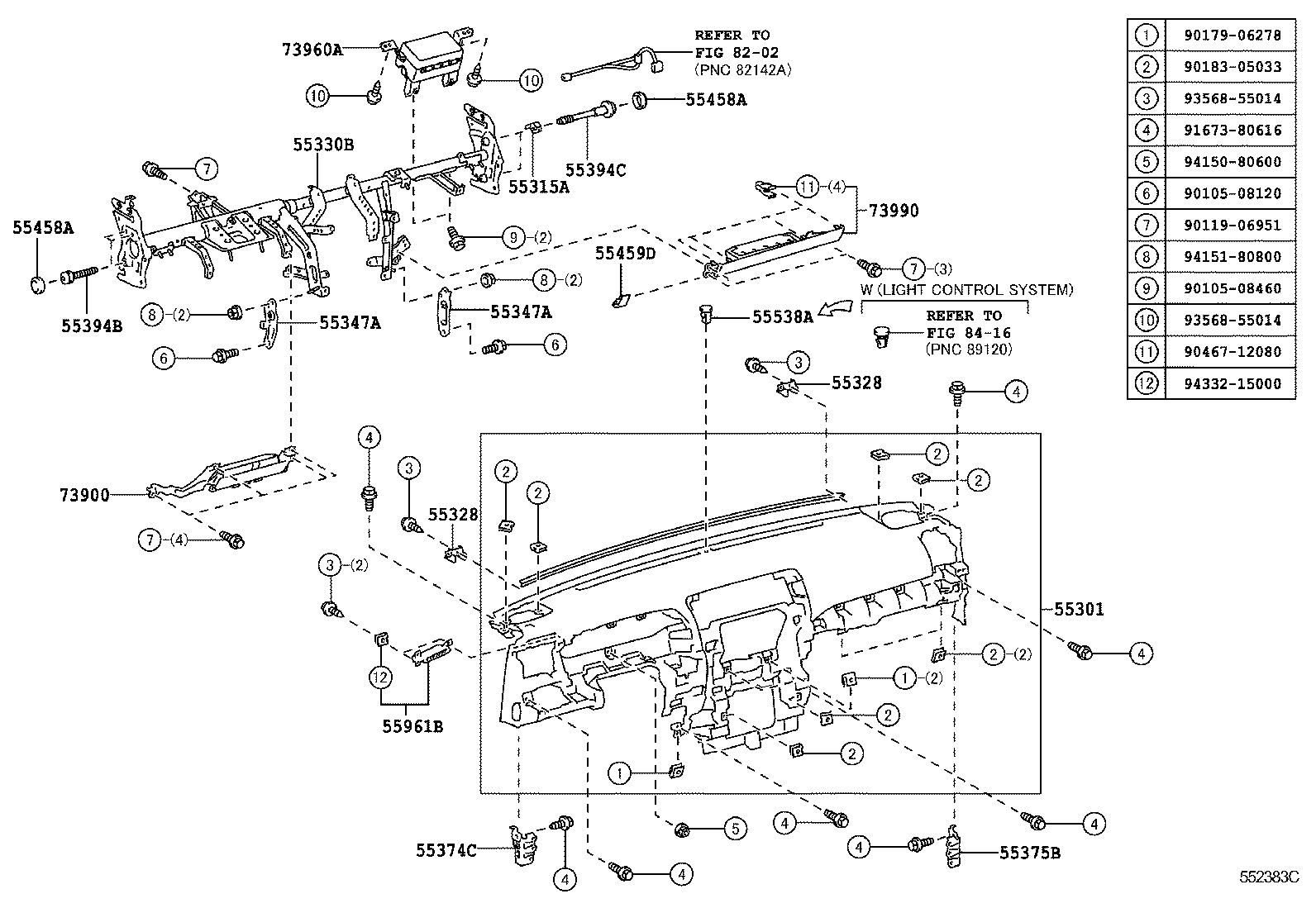

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 1 OF 2(0908- )

4RUNNER | INSTRUMENT PANEL GLOVE COMPARTMENT 55301 - PANEL SUB-ASSY, INSTRUMENT 55315A - SPACER, INSTRUMENT PANEL, NO.1 55328 - PIN, INSTRUMENT PANEL, NO.1 55328 - PIN, INSTRUMENT PANEL, NO.1 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 55394B - BOLT, INSTRUMENT PANEL 55394C - BOLT, INSTRUMENT PANEL 55458A - CAP, INSTRUMENT PANEL SAFETY PAD 55458A - CAP, INSTRUMENT PANEL SAFETY PAD 55459D - COVER, INSTRUMENT, LOWER LH 55538A - COVER, COOLER SWITCH HOLE 55961B - NOZZLE, SIDE DEFROSTER, NO.1 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
