TOYOTA SCION XD ZSP110L-AHPRKA / BODY / REAR BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

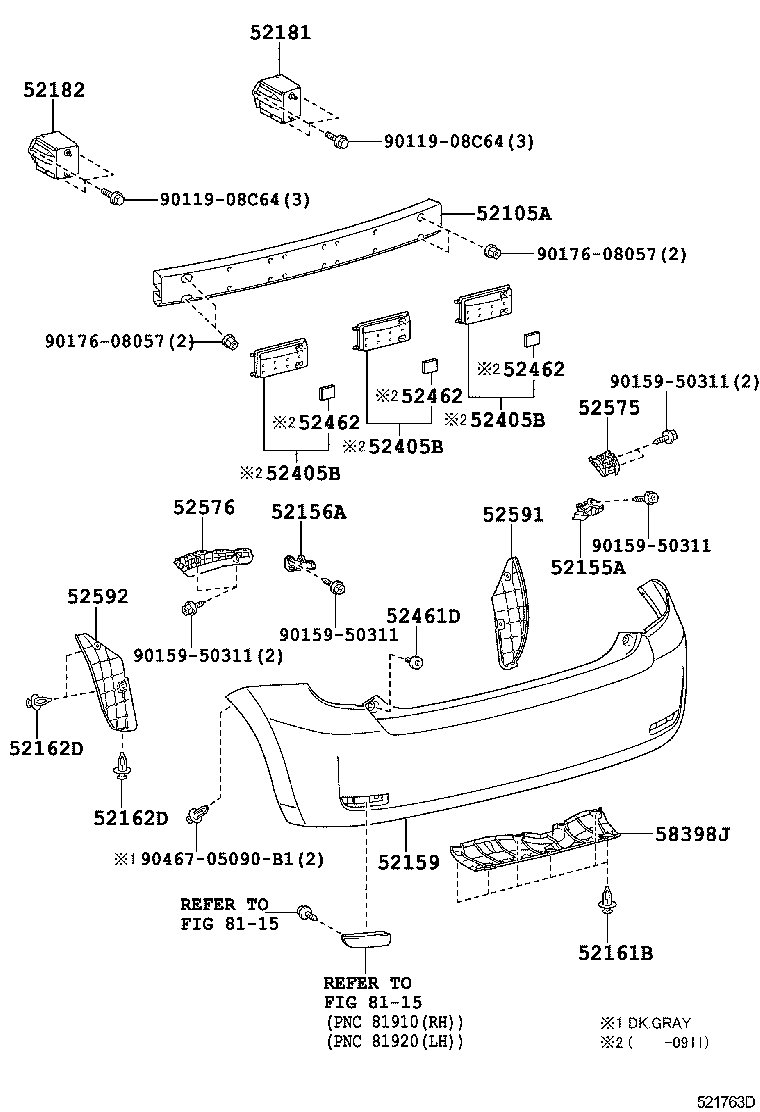

REAR BUMPER BUMPER STAY

(0706- )

 SCION XD |  REAR BUMPER BUMPER STAY 52105A - BUMPER SUB-ASSY, REAR CENTER 52155A - SUPPORT, REAR BUMPER SIDE, RH 52156A - SUPPORT, REAR BUMPER SIDE, LH 52159 - COVER, REAR BUMPER 52161B - PIECE, REAR BUMPER 52162D - PIECE, REAR BUMPER 52162D - PIECE, REAR BUMPER 52181 - ARM, REAR BUMPER, RH 52182 - ARM, REAR BUMPER, LH 52405B - GUARD SUB-ASSY, REAR BUMPER 52405B - GUARD SUB-ASSY, REAR BUMPER 52405B - GUARD SUB-ASSY, REAR BUMPER 52461D - CUSHION, REAR BUMPER 52462 - PAD, REAR BUMPER, RH 52462 - PAD, REAR BUMPER, RH 52462 - PAD, REAR BUMPER, RH 52575 - RETAINER, REAR BUMPER SIDE, RH 52576 - RETAINER, REAR BUMPER SIDE, LH 52591 - SEAL, REAR BUMPER SIDE, RH 52592 - SEAL, REAR BUMPER SIDE, LH 58398J - COVER, FLOOR UNDER, NO.1 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
