TOYOTA HILUX LAN25R-PRMDEN / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

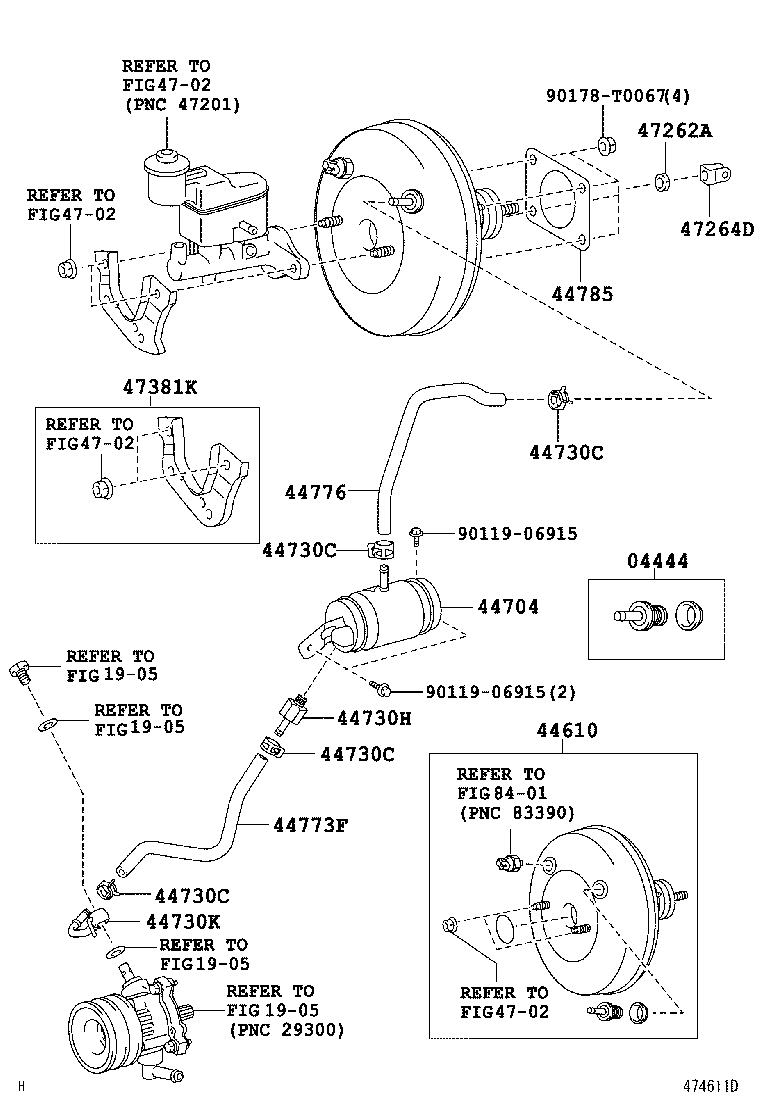

BRAKE BOOSTER VACUUM TUBE

(0507- )LAN15,25,35..RHD..SA

 HILUX |  BRAKE BOOSTER VACUUM TUBE 04444 - VALVE KIT, BOOSTER CONTROL ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 44610 - BOOSTER ASSY, BRAKE 44704 - RESERVOIR SUB-ASSY, VACUUM 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) 44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP) 44773F - HOSE, UNION TO CHECK VALVE 44776 - HOSE, BRAKE BOOSTER 44785 - GASKET, BRAKE BOOSTER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD 47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP ** Refer Fig  ** Std Part  ** Std Part  ** Std Part
