TOYOTA SCION XB AZE151L-FHPNKA / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SIDE MEMBER

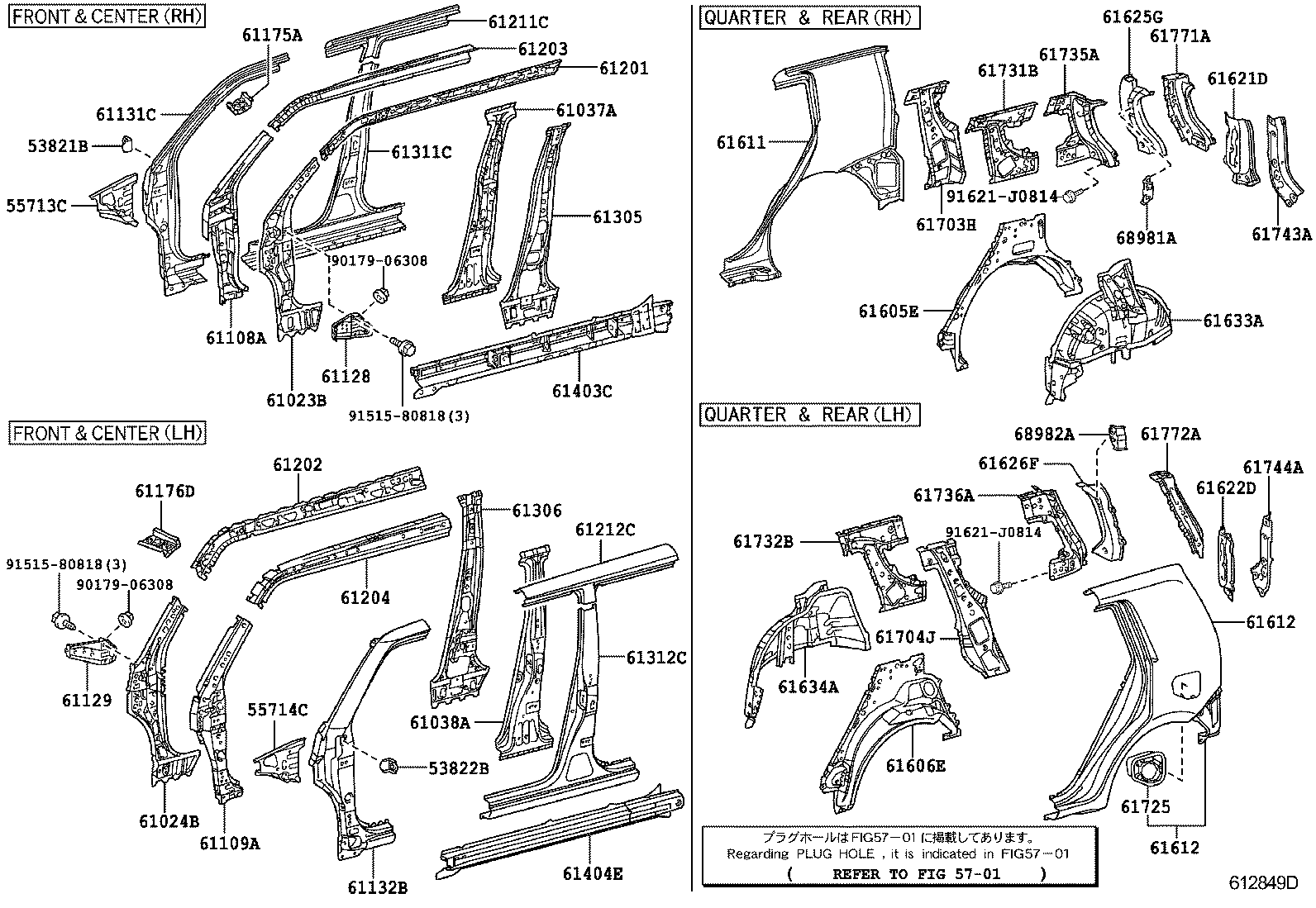

ILLUST NO. 1 OF 2(0703- )

 SCION XB |  SIDE MEMBER 53821B - BRACKET, FRONT FENDER, REAR RH 53822B - BRACKET, FRONT FENDER, REAR LH 55713C - PANEL, COWL TOP SIDE, RH 55714C - PANEL, COWL TOP SIDE, LH ** Refer Fig 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61128 - REINFORCEMENT, COWL SIDE PANEL, RH 61129 - REINFORCEMENT, COWL SIDE PANEL, LH 61131C - PILLAR, FRONT BODY, OUTER RH 61132B - PILLAR, FRONT BODY, OUTER LH 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH 61201 - RAIL SUB-ASSY, ROOF SIDE, RH 61202 - RAIL SUB-ASSY, ROOF SIDE, LH 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH 61211C - RAIL, ROOF SIDE, RH 61212C - RAIL, ROOF SIDE, LH 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH 61311C - PANEL, REAR BODY FRONT OUTSIDE, RH 61312C - PANEL, REAR BODY FRONT OUTSIDE, LH 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH 61605E - PANEL, QUARTER, RH 61606E - PANEL, QUARTER, LH 61611 - PANEL, QUARTER, RH 61612 - PANEL, QUARTER, LH 61612 - PANEL, QUARTER, LH 61621D - TROUGH, BACK DOOR OPENING, RH 61622D - TROUGH, BACK DOOR OPENING, LH 61625G - EXTENSION, QUARTER PANEL, REAR RH 61626F - EXTENSION, QUARTER PANEL, UPPER LH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH 61725 - BOX, FUEL INLET 61731B - PANEL, ROOF SIDE, INNER RH 61732B - PANEL, ROOF SIDE, INNER LH 61735A - PANEL, ROOF SIDE, INNER REAR RH 61736A - PANEL, ROOF SIDE, INNER REAR LH 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH 61771A - GUSSET, BACK WINDOW OPENING, RH 61772A - GUSSET, BACK WINDOW OPENING, LH 68981A - RETAINER, BACK DOOR STAY, RH 68982A - RETAINER, BACK DOOR STAY, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
