TOYOTA YARIS NCP91L-AHPVKK / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

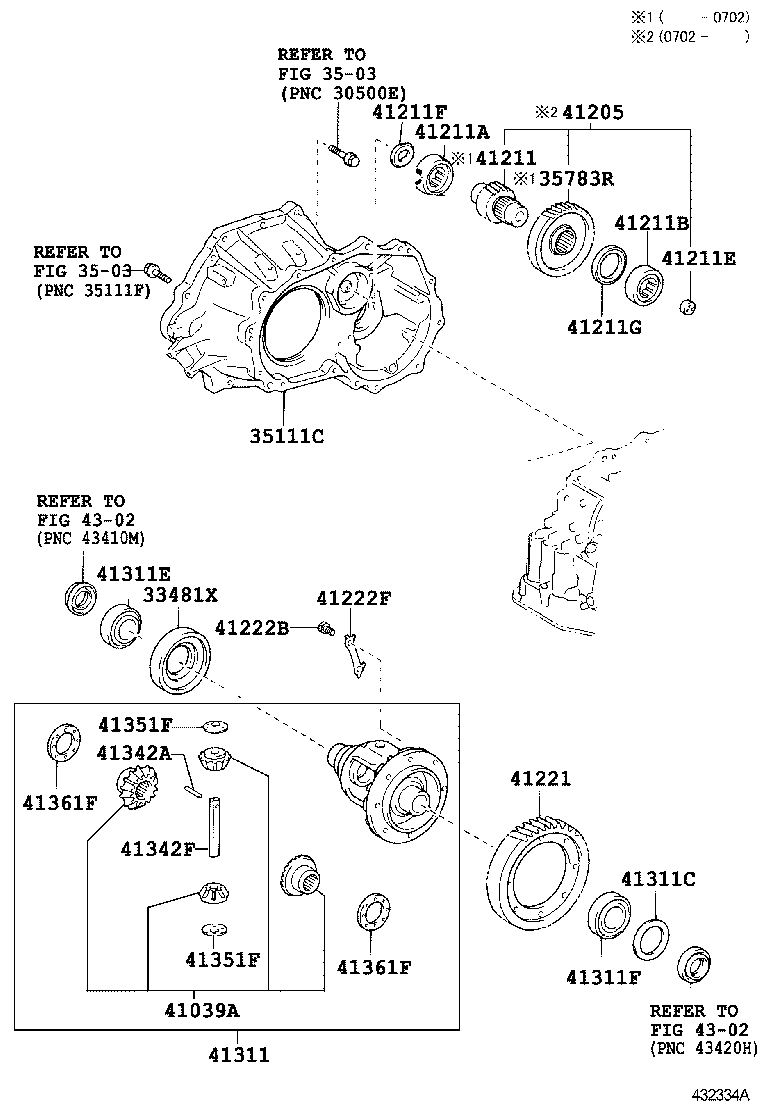

FRONT AXLE HOUSING DIFFERENTIAL

U340E (0508- )4FC

 YARIS |  FRONT AXLE HOUSING DIFFERENTIAL 33481X - GEAR, SPEEDOMETER DRIVE ** Refer Fig ** Refer Fig 35111C - HOUSING, TRANSAXLE 35783R - GEAR, COUNTER DRIVEN 41039A - GEAR KIT, DIFFERENTIAL 41205 - PINION SUB-ASSY, DIFFERENTIAL DRIVE 41211 - PINION, DIFFERENTIAL DRIVE 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) 41211E - PLUG(FOR DIFFERENTIAL DRIVE PINION) 41211F - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH) 41211G - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH) 41221 - GEAR, FRONT DIFFERENTIAL RING 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK 41311 - CASE, FRONT DIFFERENTIAL 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 ** Refer Fig ** Refer Fig
