TOYOTA CAMRY HV JPP AHV40L-AEXGBA / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

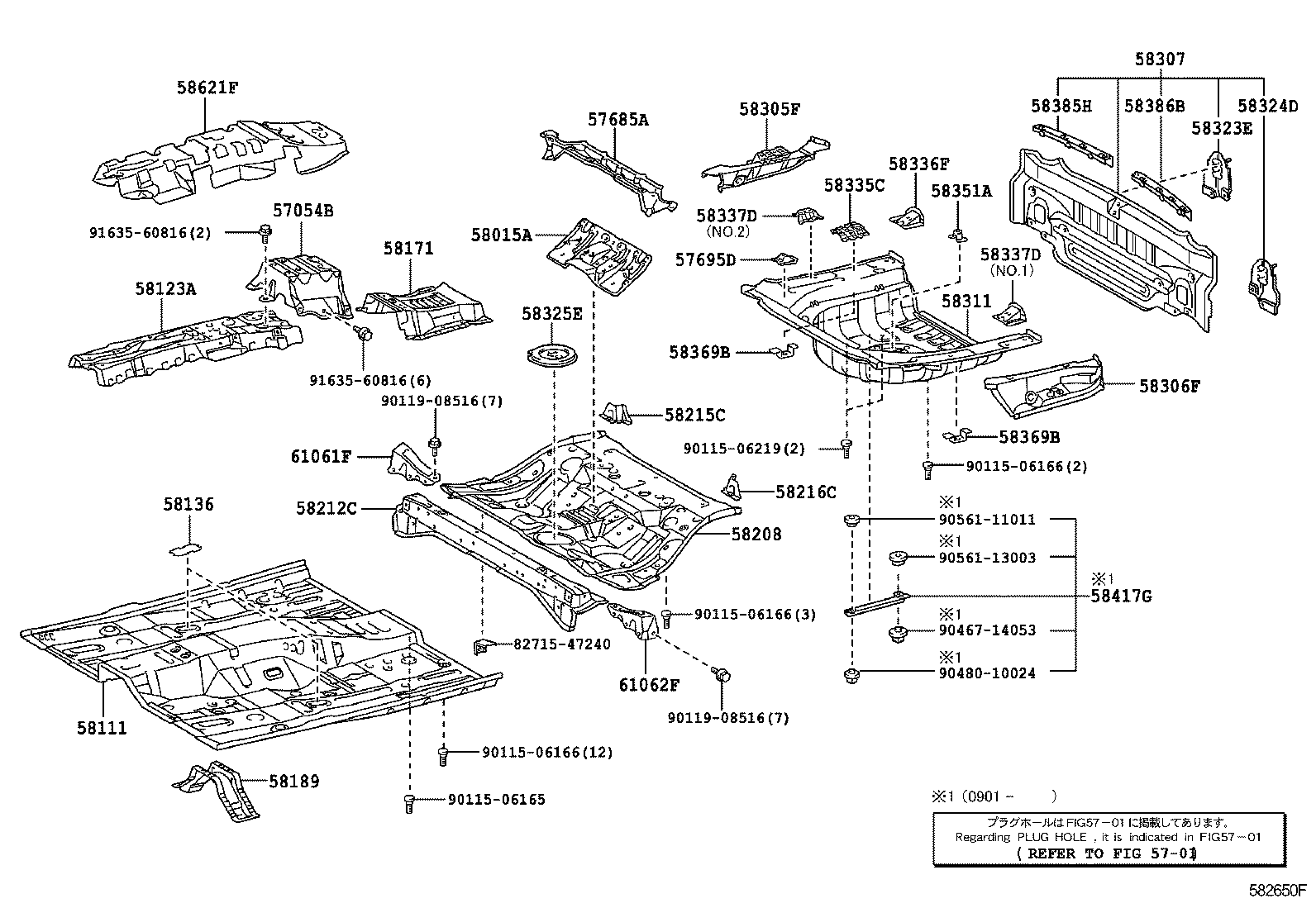

FLOOR PAN LOWER BACK PANEL

(0603- )JPP

CAMRY HV JPP | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57054B - REINFORCET SUB-ASSY, CROSS MEMBER FLOOR, NO.4 57685A - BRACKET, REAR FLOOR MOUNTING, NO.1 RH 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58111 - PAN, FRONT FLOOR 58123A - SUPPORT, SHIFT & SELECT LEVER 58136 - COVER, FRONT FLOOR HOLE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET 58208 - PAN, CENTER FLOOR 58212C - PAN, CENTER FLOOR, FRONT 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58335C - PLATE, FLOOR SIDE, FRONT RH 58336F - REINFORCEMENT, REAR FLOOR PAN, RH 58337D - REINFORCEMENT, REAR FLOOR PAN, LH 58337D - REINFORCEMENT, REAR FLOOR PAN, LH 58351A - BRACKET, SPARE WHEEL CARRIER 58369B - BRACKET, FUEL TUBE, NO.3 58369B - BRACKET, FUEL TUBE, NO.3 58385H - BRACKET, REAR BUMPER COVER, NO.1 58386B - BRACKET, REAR BUMPER COVER, NO.2 58417G - BOARD, REAR FLOOR, NO.3 58621F - SILENCER, CENTER CONSOLE, NO.1 61061F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 61062F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
