TOYOTA AVANZA F601RM-GQMFMM / POWERTRAIN-CHASSIS / FRONT AXLE HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT AXLE HUB

(0312- )

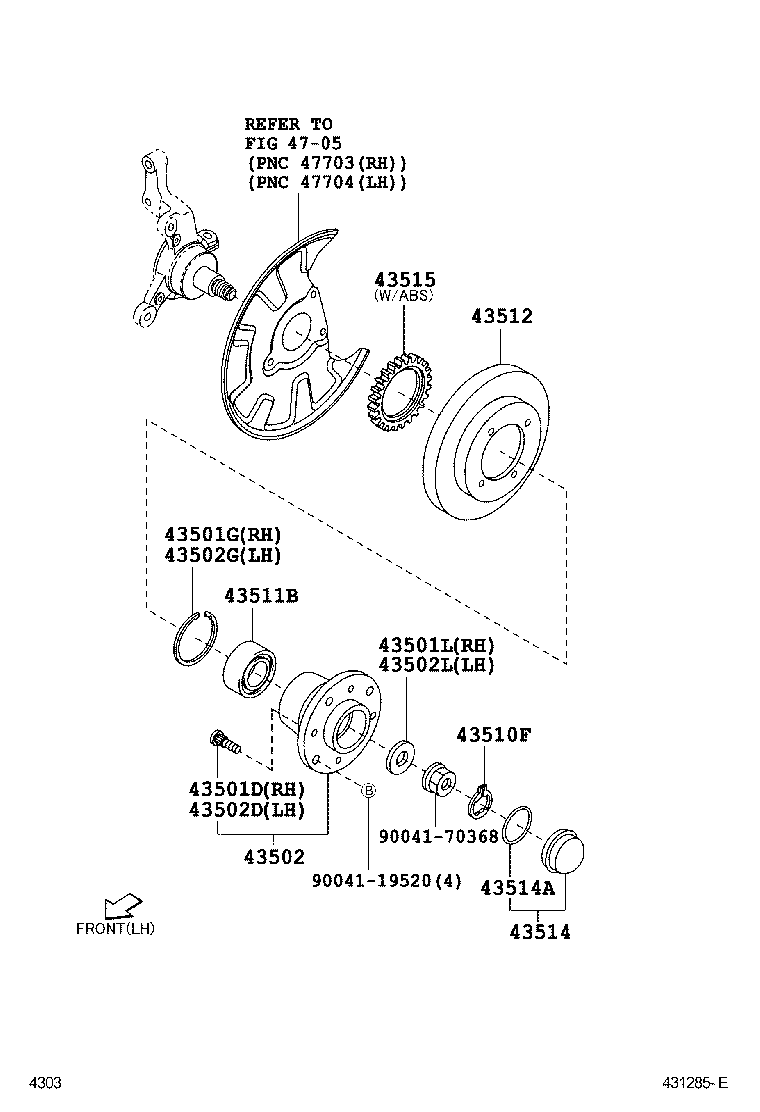

 AVANZA |  FRONT AXLE HUB 43501D - BOLT, HUB (FOR FRONT AXLE RH) 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) 43502 - HUB SUB-ASSY, FRONT AXLE 43502D - BOLT, HUB (FOR FRONT AXLE LH) 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) 43510F - RING, SHAFT SNAP (FOR FRONT AXLE HUB) 43511B - BEARING (FOR FRONT AXLE HUB) 43512 - DISC, FRONT 43514 - CAP, FRONT HUB GREASE 43514A - RING, O (FOR FRONT HUB GREASE CAP) 43515 - ROTOR, SKID CONTROL, FRONT ** Refer Fig  ** Std Part  ** Std Part
