TOYOTA TACOMA GRN245L-CRADKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

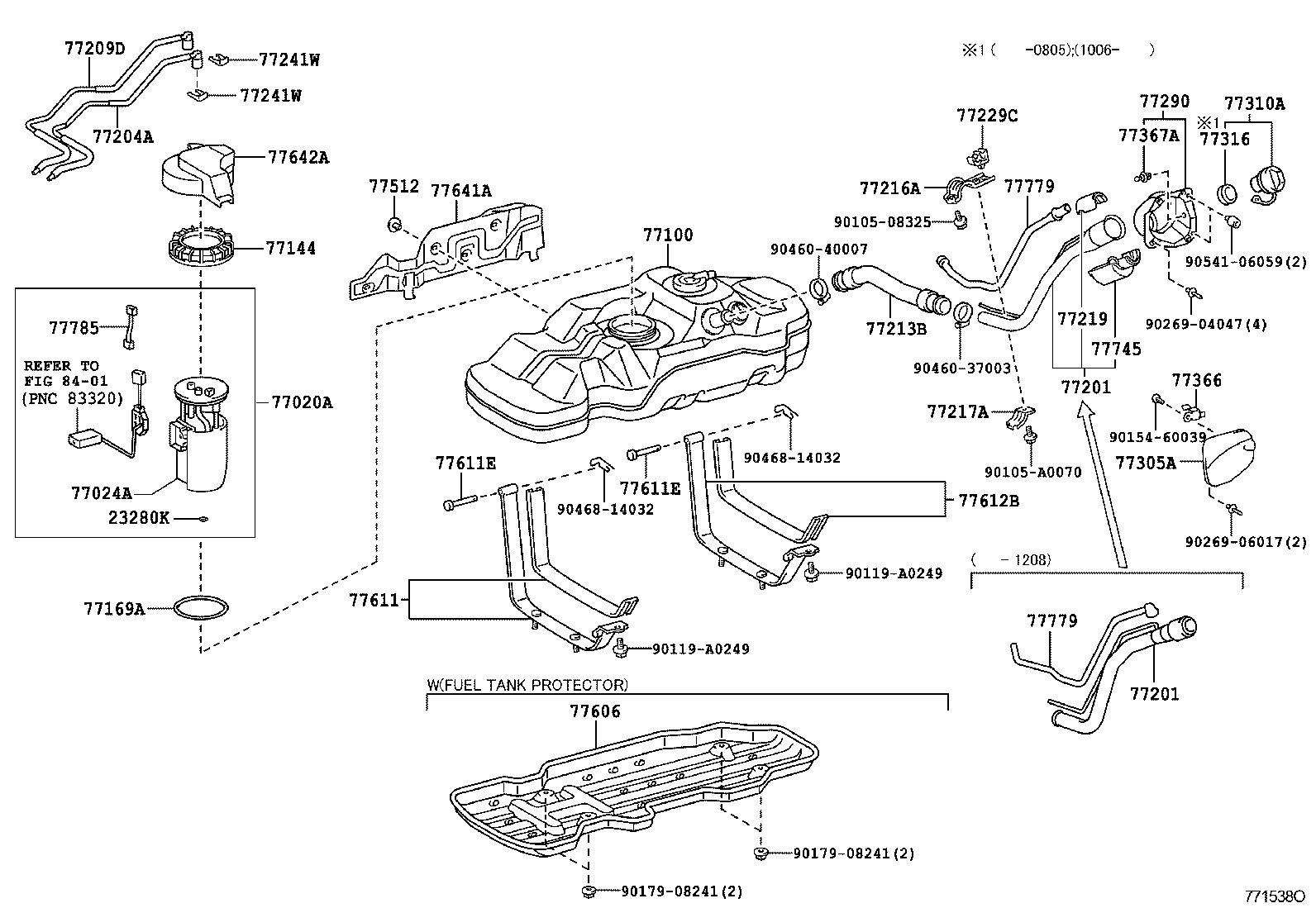

FUEL TANK ILLUST NO. 1 OF 2(0409- )

TACOMA | FUEL TANK TUBE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77204A - TUBE, FUEL TANK RETURN 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77219 - COVER, FUEL TANK FILLER PIPE 77229C - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77305A - LID SUB-ASSY, FUEL FILLER OPENING 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77367A - CLAMP, FUEL FILLER LID PIN, NO.1 77512 - BRACKET, FUEL TANK, REAR 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611 - BAND, FUEL TANK 77611E - PIN, FUEL TANK BAND 77611E - PIN, FUEL TANK BAND 77612B - BAND, FUEL TANK, NO.2 77641A - PROTECTOR, FUEL TANK, NO.1 77642A - PROTECTOR, FUEL TANK, NO.2 77745 - FILTER, CHARCOAL CANISTER, NO.1 77779 - TUBE, CHARCOAL CANISTER OUTLET 77779 - TUBE, CHARCOAL CANISTER OUTLET 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
