TOYOTA TACOMA GRN245L-CRADKA / BODY / FRONT FLOOR PANEL FRONT FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

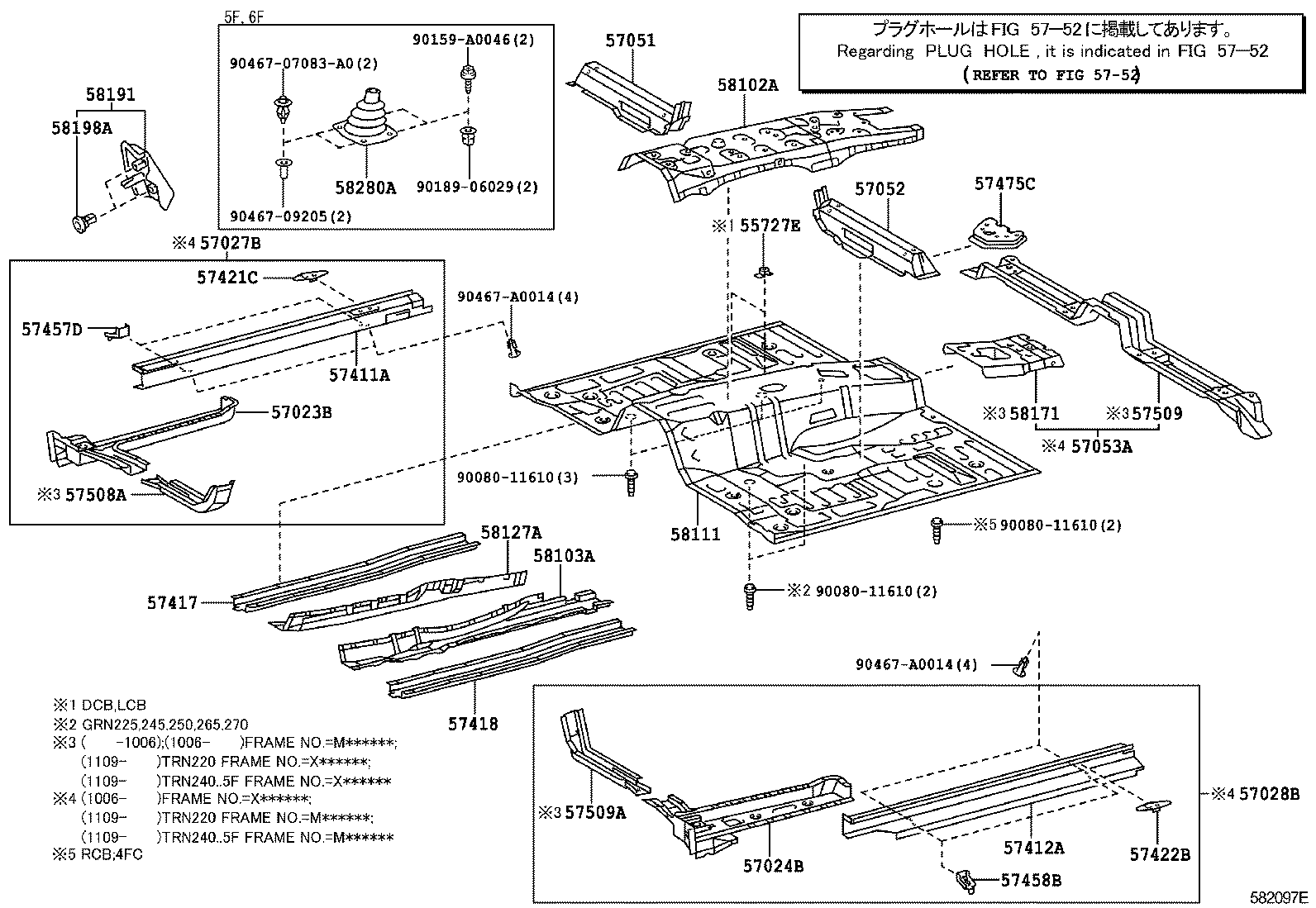

FRONT FLOOR PANEL FRONT FLOOR MEMBER

ILLUST NO. 1 OF 2(0409- )

TACOMA | FRONT FLOOR PANEL FRONT FLOOR MEMBER 55727E - RETAINER, FRONT PANEL UPPER REINFORCEMENT 57023B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH 57024B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER 57411A - MEMBER, FLOOR SIDE, INNER RH 57412A - MEMBER, FLOOR SIDE, INNER LH 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH 57421C - PLATE, FLOOR SIDE RAIL, RH 57422B - PLATE, FLOOR SIDE RAIL, LH 57457D - PATCH, FLOOR SIDE MEMBER, REAR RH 57458B - PATCH, FLOOR SIDE MEMBER, REAR LH 57475C - PLATE, FRONT FLOOR CROSSMEMBER 57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER 57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH ** Refer Fig 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR 58103A - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH 58111 - PAN, FRONT FLOOR 58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH 58171 - REINFORCEMENT, PARKING BRAKE BASE 58191 - FOOTREST, FRONT FLOOR 58198A - CLIP, FOOTREST, NO.1 58280A - BOOT ASSY, SHIFT LEVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
