TOYOTA 4RUNNER UZN210L-GKAZKA / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

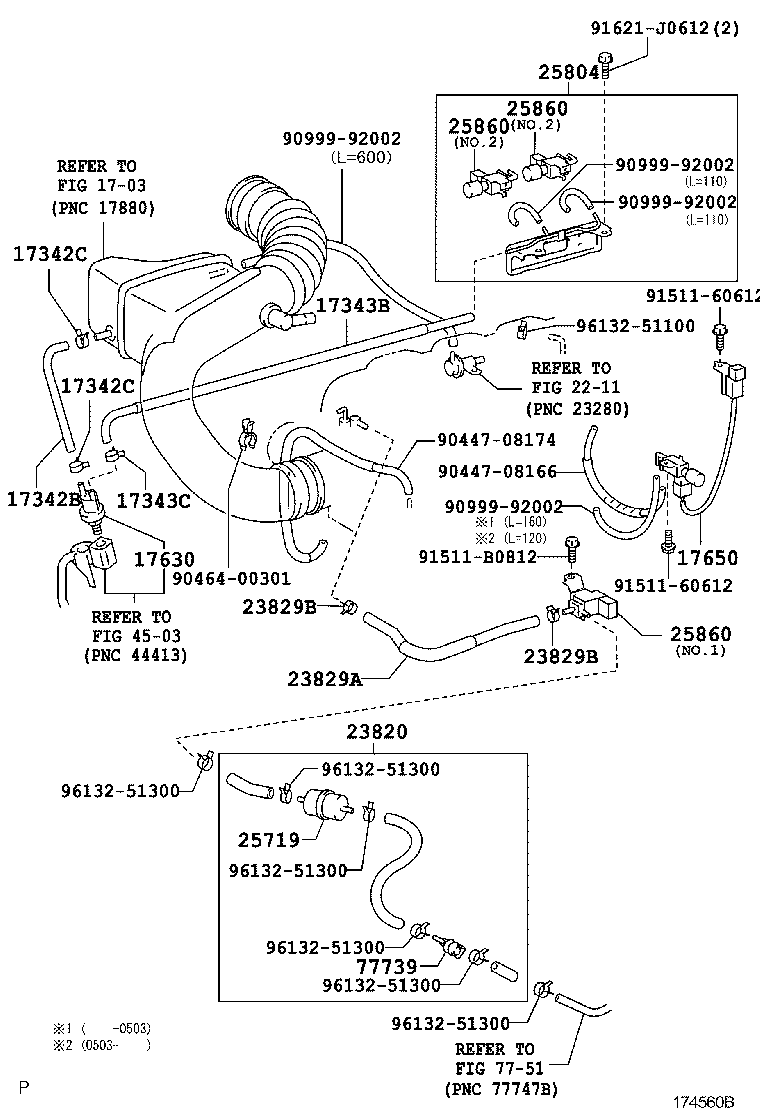

VACUUM PIPING

(0411-0508)2UZFE

 4RUNNER |  VACUUM PIPING ** Refer Fig 17342B - HOSE, NO.2(FOR IDLE-UP) 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) 17343B - HOSE, NO.3(FOR IDLE-UP) 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) 17630 - VALVE ASSY, AIR CONTROL 17650 - VALVE ASSY, VACUUM SWITCHING ** Refer Fig 23820 - HOSE ASSY, FUEL VAPOR FEED 23829A - HOSE, FUEL VAPOR FEED 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 25719 - TANK, VACUUM SURGE 25804 - VALVE SET, VACUUM CONTROL 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Refer Fig ** Refer Fig 77739 - VALVE, EVAP SERVICE PORT  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
