TOYOTA AVANZA F601RM-GMMFM / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

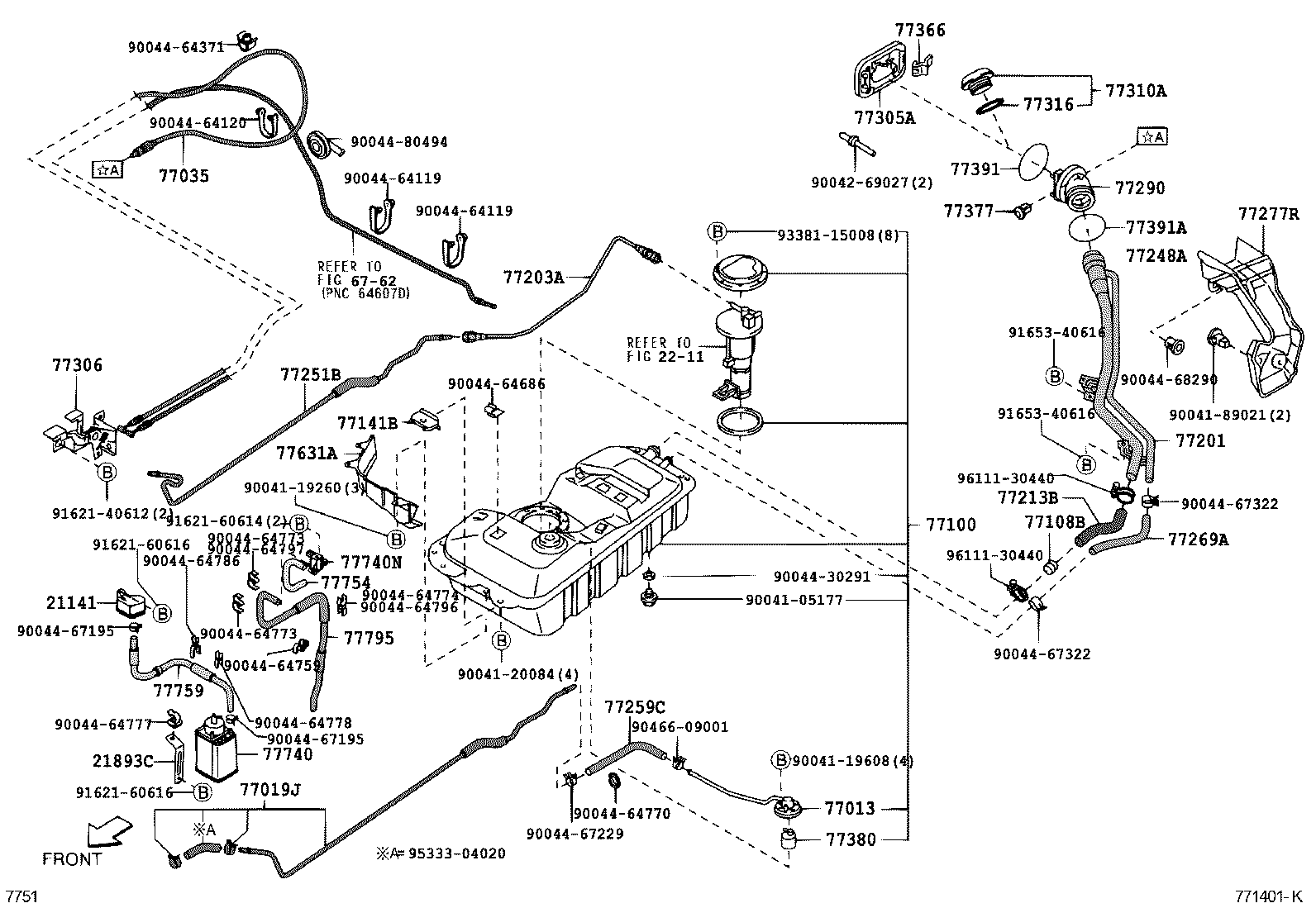

FUEL TANK TUBE

(0404-0608)WVVT

AVANZA | FUEL TANK TUBE 21141 - CHAMBER, SUCTION 21893C - BRACKET ** Refer Fig ** Refer Fig 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77203A - TUBE SUB-ASSY, FUEL SUCTION 77213B - HOSE, FUEL TANK TO FILLER PIPE 77248A - HOLDER, FUEL TANK FILLER PIPE COVER 77251B - TUBE, FUEL MAIN 77259C - HOSE, FUEL 77269A - HOSE, FUEL TANK BREATHER 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77305A - LID SUB-ASSY, FUEL FILLER OPENING 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77631A - PROTECTOR, FUEL TANK, LOWER CENTER 77740 - CANISTER ASSY, CHARCOAL 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77759 - HOSE, CHARCOAL CANISTER 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
