TOYOTA SIENNA MCL25L-PFAEKK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

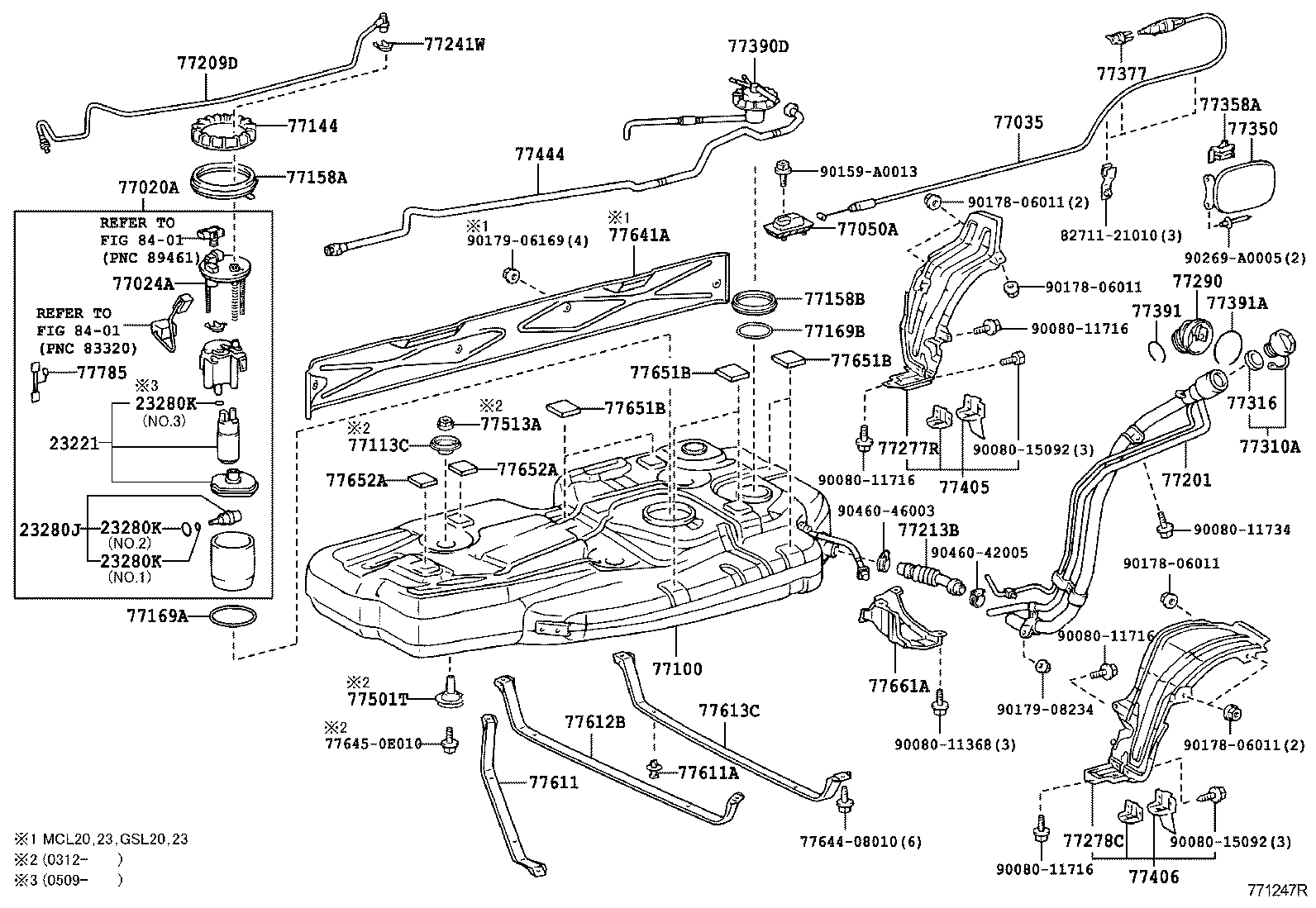

FUEL TANK ILLUST NO. 1 OF 2(0301-0612)

 SIENNA |  FUEL TANK TUBE 23221 - PUMP, FUEL 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77050A - CONTROL OPENER ASSY, FUEL LID LOCK 77100 - TANK ASSY, FUEL 77113C - PLATE, FUEL TANK SIDE 77144 - RETAINER, FUEL PUMP GAUGE 77158A - SUPPORT, TANK SUCTION TUBE 77158B - SUPPORT, TANK SUCTION TUBE, NO.1 77169A - GASKET, FUEL SUCTION TUBE SET 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77241W - CLIP, TUBE JOINT 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77358A - STOPPER, FUEL FILLER OPENING LID 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77405 - PROTECTOR SUB-ASSY, FUEL INLET HOSE 77406 - PROTECTOR SUB-ASSY, FUEL TUBE 77444 - HOSE, FUEL TANK VENT 77501T - BRACKET SUB-ASSY, FUEL TANK 77513A - RETAINER, TANK BRACKET 77611 - BAND, FUEL TANK 77611A - PIN (FOR FUEL TANK BAND) 77612B - BAND, FUEL TANK, NO.2 77613C - BAND, FUEL TANK, NO.3 77641A - PROTECTOR, FUEL TANK, NO.1  ** Std Part  ** Std Part 77651B - CUSHION, FUEL TANK 77651B - CUSHION, FUEL TANK 77651B - CUSHION, FUEL TANK 77652A - CUSHION, FUEL TANK, NO.2 77652A - CUSHION, FUEL TANK, NO.2 77661A - COVER, FUEL TANK FILLER HOSE 77785 - HARNESS, FUEL PUMP  ** Std Part ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
