TOYOTA PRIUS NHW11L-AEEEBA / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

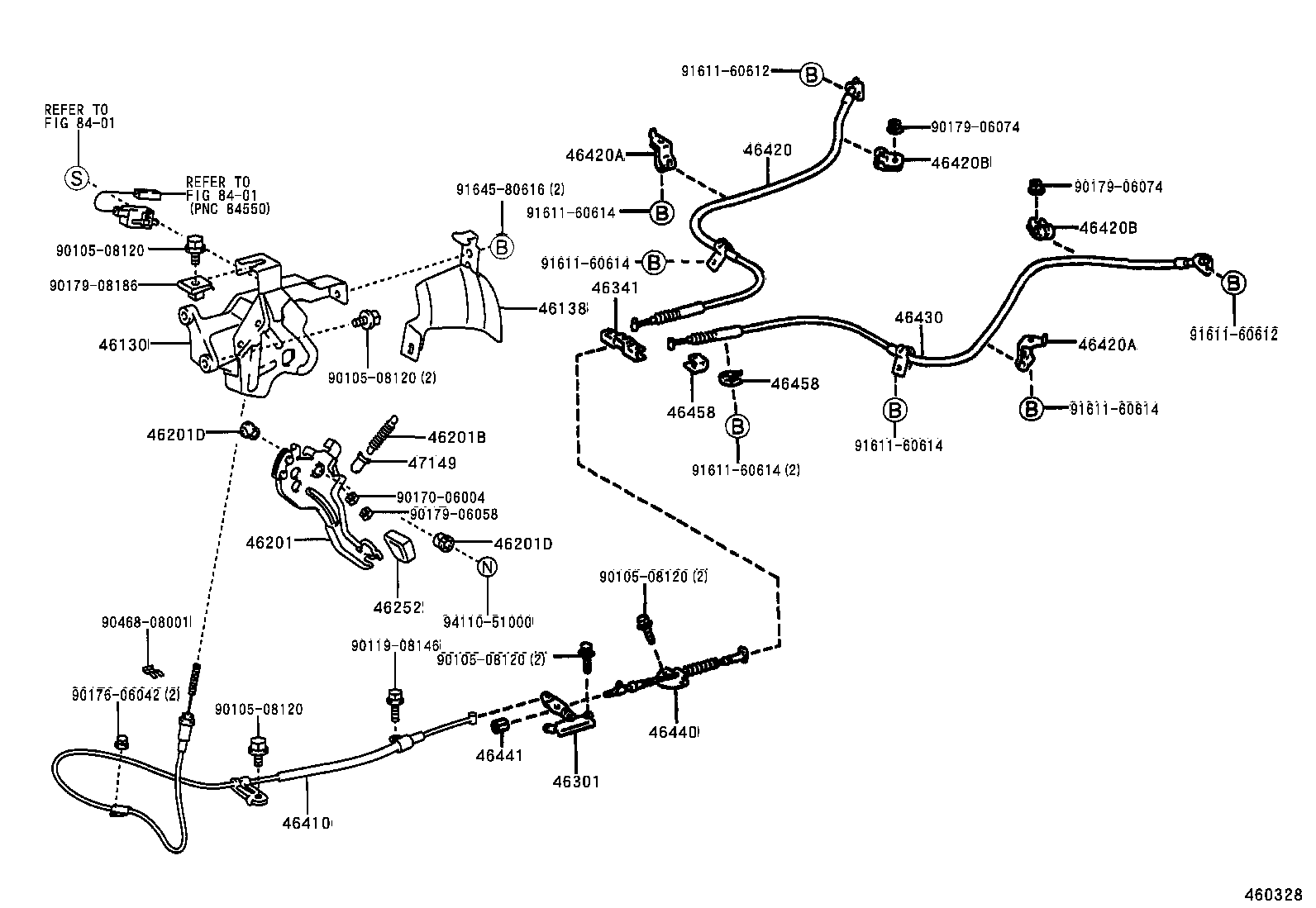

PARKING BRAKE CABLE

(0005- )

PRIUS | PARKING BRAKE CABLE 46130 - BRACKET ASSY, PARKING BRAKE PEDAL 46138 - PROTECTOR, PARKING BRAKE PEDAL BRACKET 46201 - PEDAL SUB-ASSY, PARKING BRAKE 46201B - SPRING, TENSION 46201D - BUSH(FOR PARKING BRAKE PEDAL) 46201D - BUSH(FOR PARKING BRAKE PEDAL) 46252 - PAD, PARKING PEDAL 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE 46341 - EQUALIZER, PARKING BRAKE 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46440 - CABLE ASSY, PARKING BRAKE, NO.4 46441 - NUT, WIRE ADJUSTING, NO.1 46458 - RETAINER, CABLE 46458 - RETAINER, CABLE 47149 - DAMPER, RETURN SPRING ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
