TOYOTA PRIUS NHW11L-AEEEBA / POWERTRAIN-CHASSIS / TRANSAXLE ASSY HYBRID VEHICLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSAXLE ASSY HYBRID VEHICLE

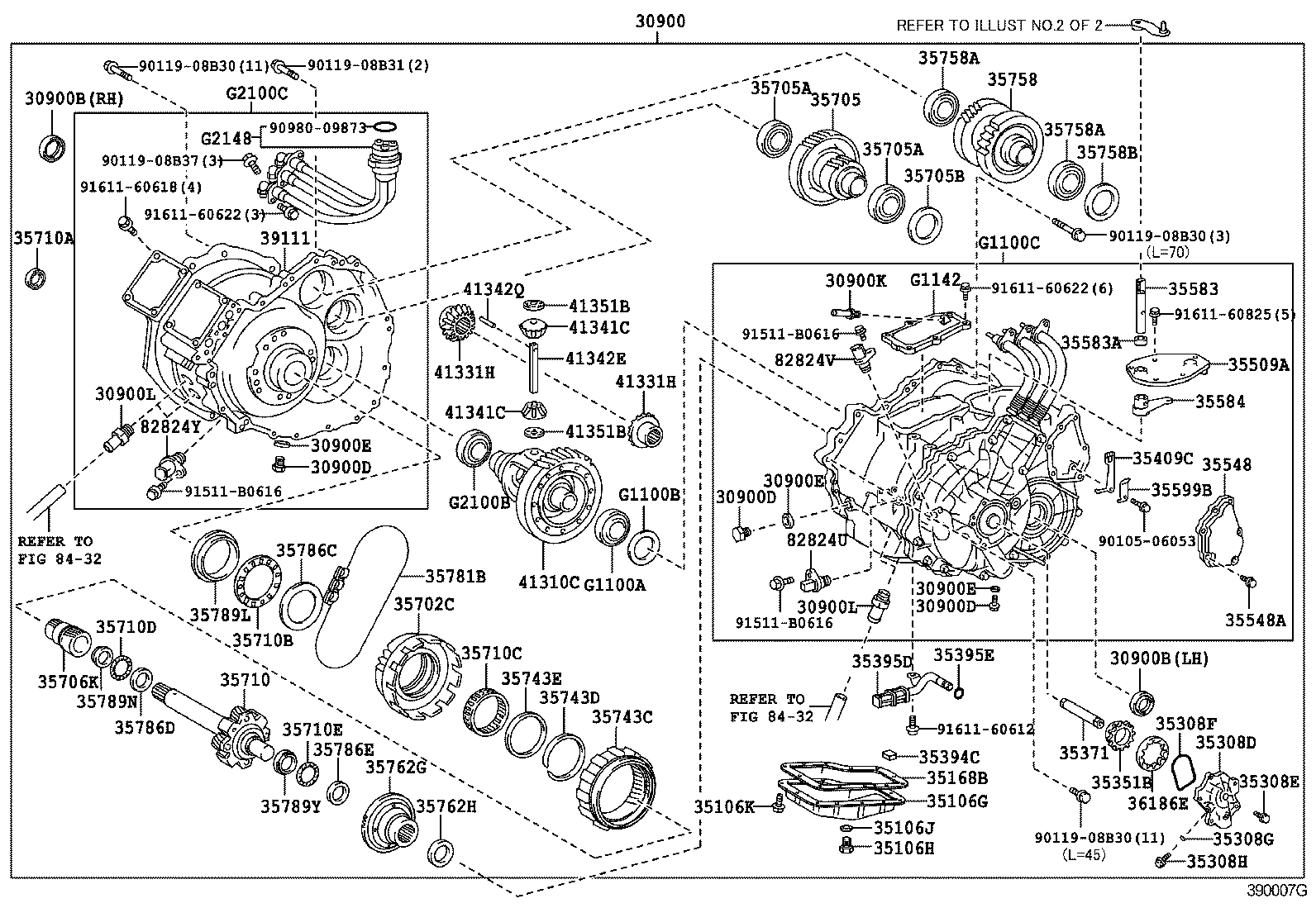

ILLUST NO. 1 OF 2(0005- )

PRIUS | TRANSAXLE ASSY HYBRID VEHICLE 30900 - TRANSAXLE ASSY, HYBRID VEHICLE 30900B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) 30900B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) 30900D - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE) 30900D - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE) 30900D - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE) 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) 30900K - CONNECTOR, TUBE(FOR TRANSAXLE HOUSING) 30900L - UNION(FOR TRANSAXLE HOUSING) 30900L - UNION(FOR TRANSAXLE HOUSING) 35106G - PAN SUB-ASSY, TRANSAXLE OIL 35106H - PLUG, W/HEAD STRAIGHT SCREW (FOR TRANSAXLE OIL PAN & CASE) 35106J - GASKET (FOR TRANSAXLE OIL PAN & CASE) 35106K - BOLT, W/WASHER (FOR TRANSAXLE OIL PAN & CASE) 35168B - GASKET, TRANSAXLE OIL PAN 35308D - COVER SUB-ASSY, TRANSMISSION OIL PUMP 35308E - BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER) 35308F - RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) 35308G - RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) 35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER) 35351B - ROTOR, TRANSAXLE OIL PUMP DRIVE 35371 - SHAFT, OIL PUMP DRIVE 35394C - MAGNET, OIL CLEANER 35395D - STRAINER, TRANSMISSION OIL 35395E - RING, O(FOR TRANSAXLE OIL STRAINER) 35409C - SPRING SUB-ASSY, MANUAL DETENT 35509A - COVER SUB-ASSY, PARKING SHAFT 35548 - COVER, PARKING 35548A - BOLT, W/WASHER (FOR PARKING COVE & CASE) 35583 - SHAFT, PARKING LOCK 35583A - SEAL, OIL(FOR PARKING LOCK SHAFT) 35584 - LEVER, PARKING LOCK, NO.3 35599B - COVER, MANUAL DETENT SPRING 35702C - SPROCKET SUB-ASSY, TRANSMISSION DRIVE 35705 - GEAR SUB-ASSY, COUNTER DRIVEN 35705A - BEARING(FOR COUNTER DRIVEN GEAR) 35705A - BEARING(FOR COUNTER DRIVEN GEAR) 35705B - SHIM(FOR COUNTER DRIVEN GEAR) 35706K - GEAR SUB-ASSY, PLANETARY SUN 35710 - SHAFT ASSY, INPUT 35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT) 35710B - BEARING, THRUST NEEDLE ROLLER, NO.1(FOR DRIVE SPROCKET) 35710C - BEARING, NEEDLE ROLLER, NO.2(FOR DRIVE SPROCKET) 35710D - BEARING, THRUST NEEDLE ROLLER, NO.1(FOR INPUT SHAFT) 35710E - BEARING, THRUST NEEDLE ROLLER, NO.2(FOR INPUT SHAFT) 35743C - GEAR, PLANETARY RING 35743D - RING, SNAP(FOR PLANETARY RING GEAR) 35743E - SPACER(FOR PLANETARY RING GEAR) 35758 - GEAR, SPROCKET DRIVEN & COUNTER DRIVE 35758A - BEARING, RADIAL BALL(FOR CONTER DRIVE GEAR) 35758A - BEARING, RADIAL BALL(FOR CONTER DRIVE GEAR) 35758B - SHIM(FOR COUNTER DRIVE GEAR) 35762G - FLANGE, PLANETARY RING GEAR 35762H - SHIM(FOR PLANETARY RING GEAR FLANGE) 35781B - CHAIN, TRANSMISSION DRIVE 35786C - RACE, THRUST BEARING, NO.1 35786D - RACE, THRUST BEARING, NO.1(FOR INPUT SHAFT) 35786E - RACE, THRUST BEARING, NO.2(FOR INPUT SHAFT) 35789L - RACE, THRUST BEARING, NO.2 35789N - RACE, THRUST BEARING, NO.2(FOR INPUT SHAFT) 35789Y - RACE, THRUST BEARING NO.3(FOR INPUT SHAFT) 36186E - ROTOR, OIL PUMP DRIVEN 39111 - COVER, POWER CABLE 41310C - CASE ASSY, DIFFERENTIAL 41331H - GEAR, DIFFERENTIAL SIDE 41331H - GEAR, DIFFERENTIAL SIDE 41341C - PINION, DIFFERENTIAL 41341C - PINION, DIFFERENTIAL 41342E - SHAFT, DIFFERENTIAL PINION 41342Q - PIN, STRAIGHT(FOR DIFFERENTIAL PINION SHAFT) 41351B - WASHER, DIFFERENTIAL PINION THRUST 41351B - WASHER, DIFFERENTIAL PINION THRUST 82824U - CONNECTOR, WIRING HARNESS(FOR MOTOR STATOR) 82824V - CONNECTOR, WIRING HARNESS(FOR MOTOR REVOLUTION SENSOR) 82824Y - CONNECTOR, WIRING HARNESS(FOR GENERATOR) ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G1100A - BEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE LH) G1100B - SHIM(FOR DIFFERENTIAL CASE LH) G1100C - MOTOR ASSY, HYBRID VEHICLE G1142 - COVER, MOTOR WATERJACET G2100B - BEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE RH) G2100C - GENERATOR ASSY, HYBRID VEHICLE G2148 - CABLE, GENERATOR
