TOYOTA PRIUS NHW11L-AEEEBA / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

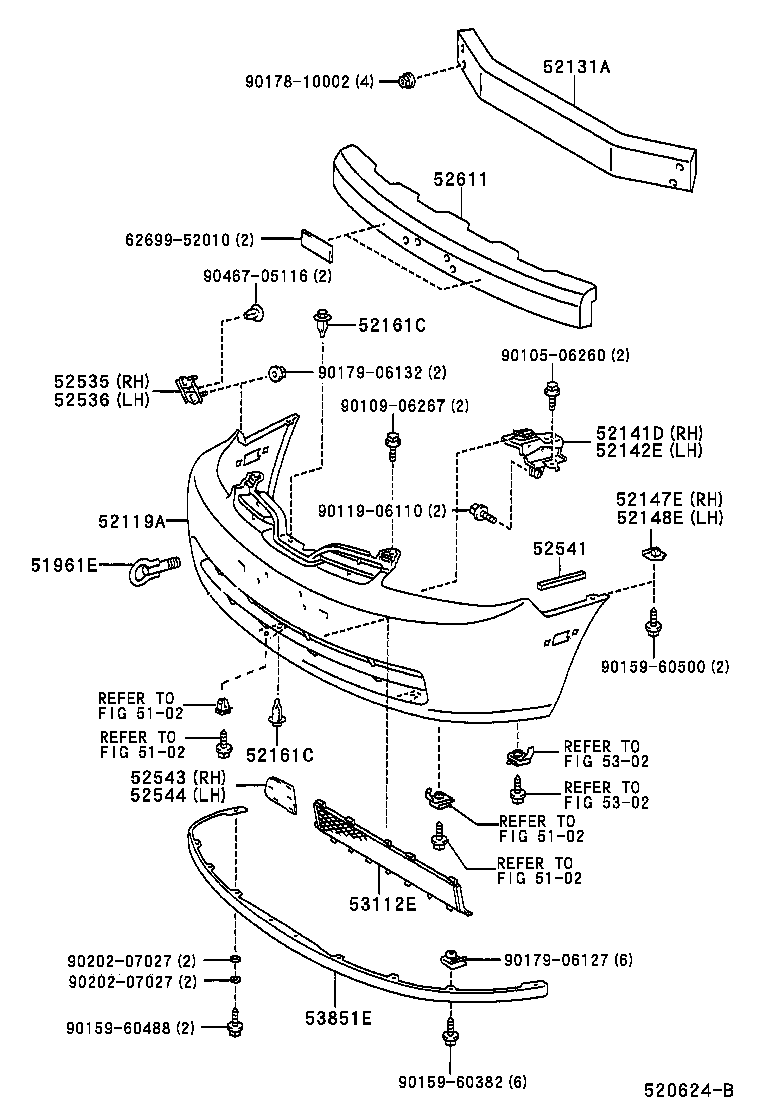

FRONT BUMPER BUMPER STAY

(0005- )

PRIUS | FRONT BUMPER BUMPER STAY ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 51961E - HOOK, FRONT 52119A - COVER, FRONT BUMPER 52131A - REINFORCEMENT, FRONT BUMPER 52141D - STAY, FRONT BUMPER, RH 52142E - STAY SUB-ASSY, FRONT BUMPER, LH 52147E - BRACKET, FRONT BUMPER MOUNTING, RH 52148E - BRACKET, FRONT BUMPER MOUNTING, LH 52161C - PIECE, FRONT BUMPER 52161C - PIECE, FRONT BUMPER 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52541 - PROTECTOR, FRONT BUMPER 52543 - SEAL, FRONT BUMPER SIDE, RH 52544 - SEAL, FRONT BUMPER SIDE, LH 52611 - ABSORBER, FRONT BUMPER ENERGY ** Refer Fig ** Refer Fig 53112E - GRILLE, RADIATOR, LOWER NO.1 53851E - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
