TOYOTA CELICA ZZT231L-BLPVFA / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

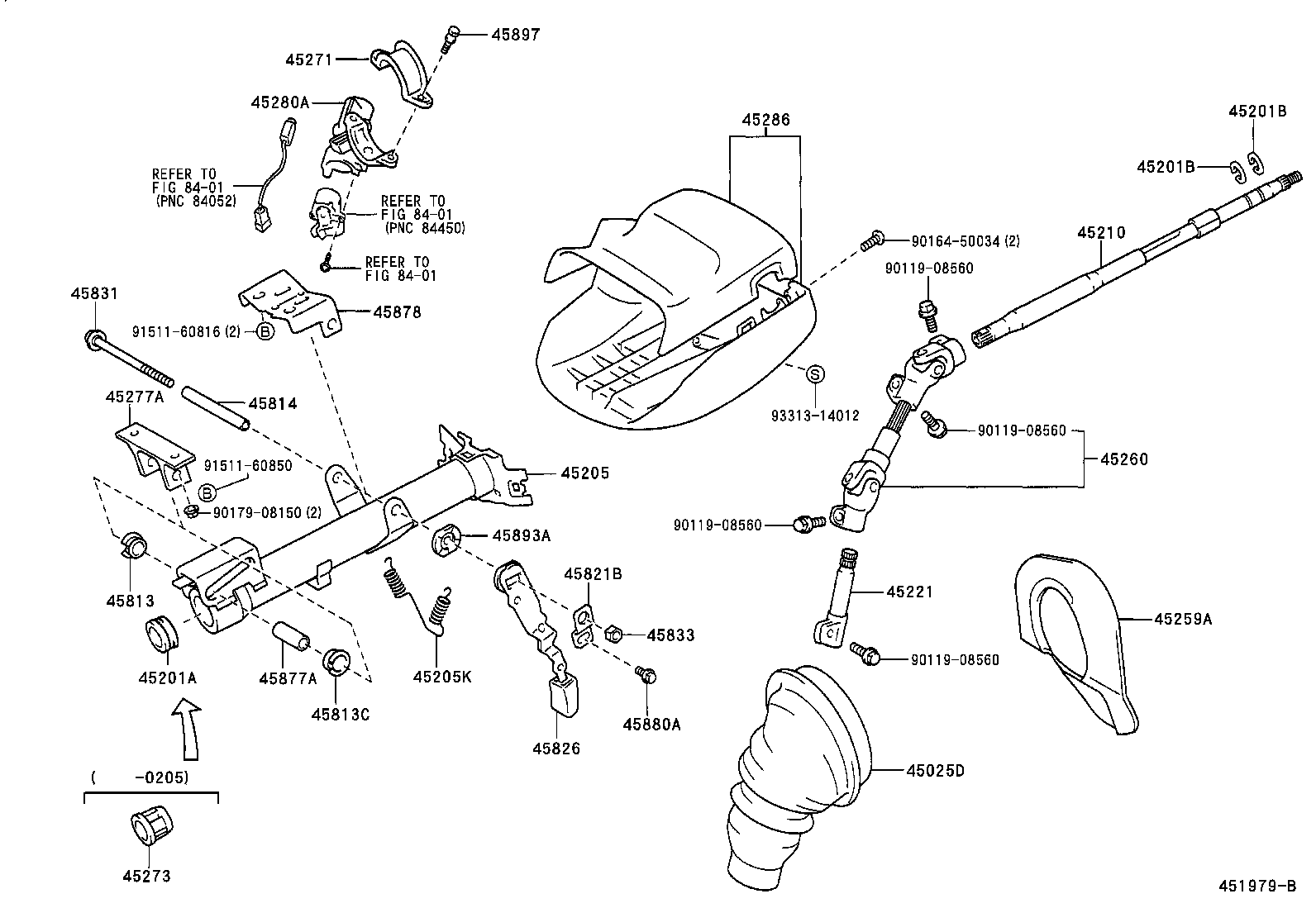

STEERING COLUMN SHAFT

(9908-0208)

 CELICA |  STEERING COLUMN SHAFT 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45205 - TUBE SUB-ASSY, STEERING COLUMN 45205K - SPRING(FOR STEERING COLUMN TUBE) 45210 - SHAFT ASSY, STEERING MAIN 45221 - SHAFT, STEERING INTERMEDIATE 45259A - SHEET, COLUMN HOLE COVER SILENCER 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 45271 - CLAMP, STEERING COLUMN, UPPER 45273 - BUSH, STEERING MAIN SHAFT 45277A - SUPPORT, TILT STEERING 45280A - BRACKET ASSY, STEERING COLUMN, UPPER 45286 - COVER, STEERING COLUMN 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 45813C - COLLAR, TILT STEERING SUPPORT, NO.1 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 45826 - LEVER, STEERING TILT 45831 - BOLT, TILT LEVER LOCK, NO.1 45833 - NUT, TILT STEERING ADJUSTING, NO.1 45877A - SPACER, STEERING COLUMN BRACKET 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT 45880A - BOLT(FOR STEERING TILT LEVER) 45893A - STOPPER, TILT STEERING PAWL 45897 - BOLT, STEERING LOCK SET ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
