TOYOTA CELICA ZZT231L-BLPVFA / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SHIFT LEVER RETAINER

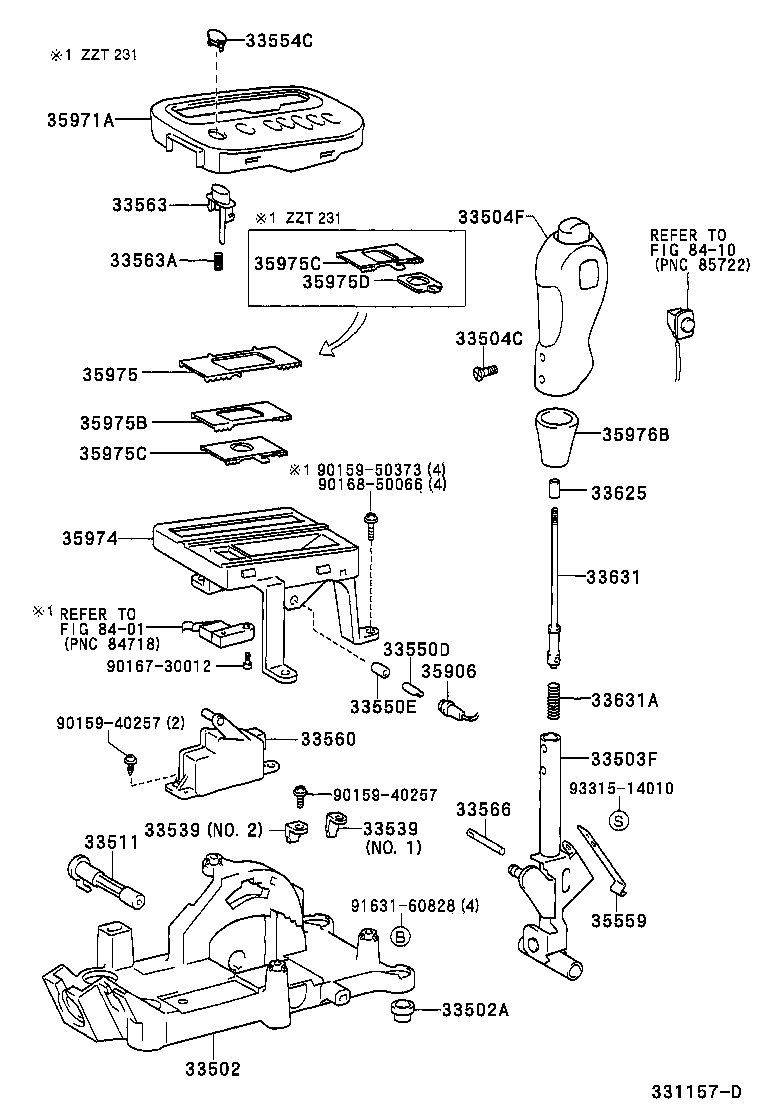

ILLUST NO. 1 OF 2(9908-0208)4FC

 CELICA |  SHIFT LEVER RETAINER 33502 - PLATE SUB-ASSY, SHIFT LEVER 33502A - COLLAR (FOR FLOOR SHIFT SETTING) 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33554C - COVER, SHIFT LOCK RELEASE BUTTON 33560 - UNIT ASSY, SHIFT LOCK CONTROL 33563 - BUTTON, SHIFT LOCK RELEASE 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) 33566 - PIN, SHIFT LEVER STOP 33625 - SLEEVE, SHIFT LEVER KNOB 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 35559 - SPRING, MANUAL DETENT 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35971A - HOUSING, POSITION INDICATOR, UPPER 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35975B - COVER, SLIDE, NO.2(FOR POSITION INDICATOR) 35975C - COVER, SLIDE, NO.3(FOR POSISION INDICATOR) 35975C - COVER, SLIDE, NO.3(FOR POSISION INDICATOR) 35975D - COVER, SLIDE, NO.4(FOR POSITION INDICATOR) 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
