TOYOTA TACOMA VZN170L-CRMGKAB / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

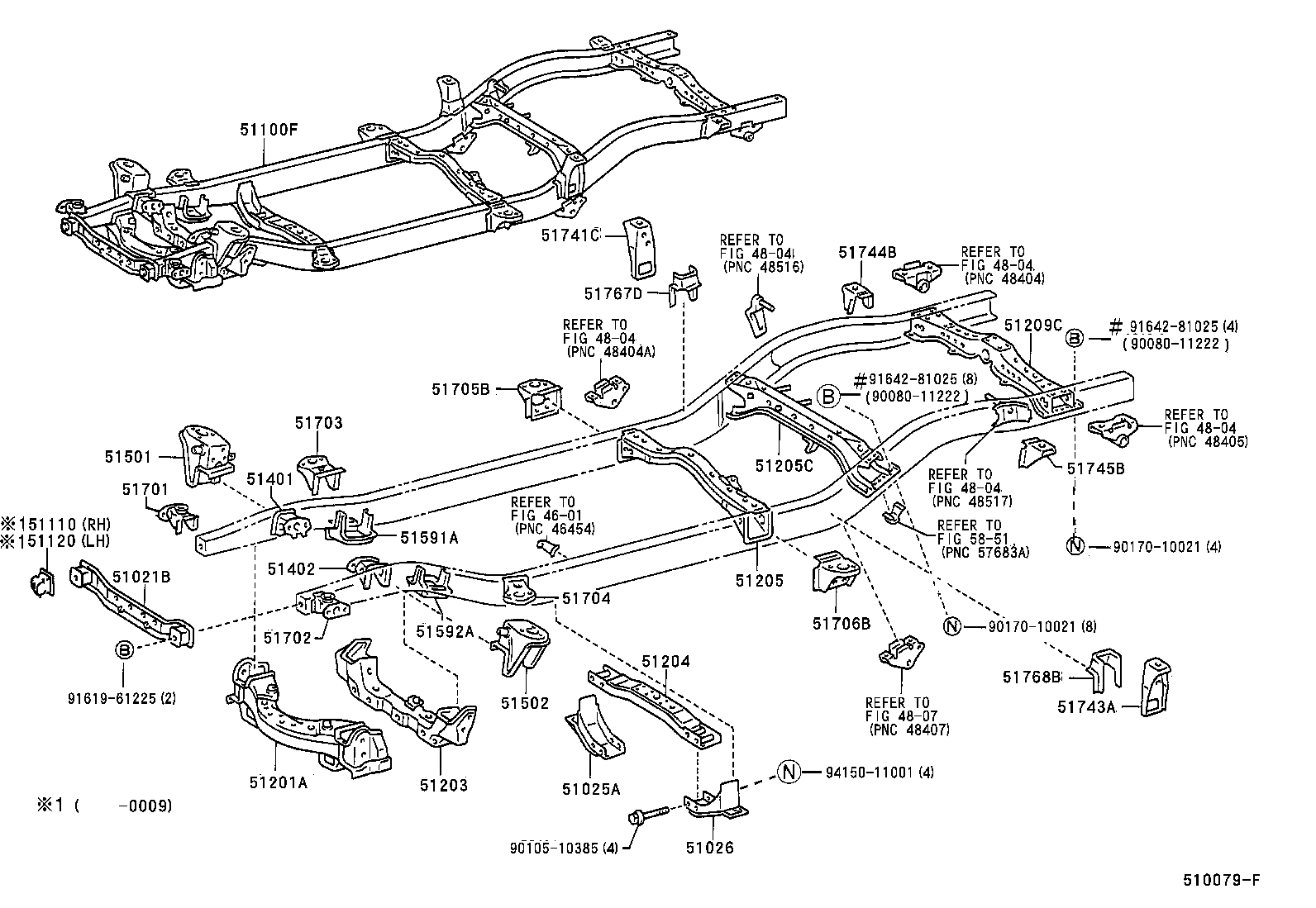

FRAME

(9501- )RZN171,VZN170

 TACOMA |  FRAME ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY 51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH 51100F - FRAME SUB-ASSY 51110 - EXTENSION ASSY, SIDE RAIL, RH 51120 - EXTENSION ASSY, SIDE RAIL, LH 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH 51591A - SUPPORT, STABILIZER, RH 51592A - SUPPORT, STABILIZER, LH 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH 51741C - BRACKET, REAR BODY MOUNTING, NO.2 RH 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH 51744B - BRACKET, REAR BODY MOUNTING, NO.3 RH 51745B - BRACKET, REAR BODY MOUNTING, NO.3 LH 51767D - REINFORCEMENT, BODY SUPPORT BRACKET, RH 51768B - REINFORCEMENT, BODY SUPPORT BRACKET, LH ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
