TOYOTA MR2 SW20L-ACMZZA / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

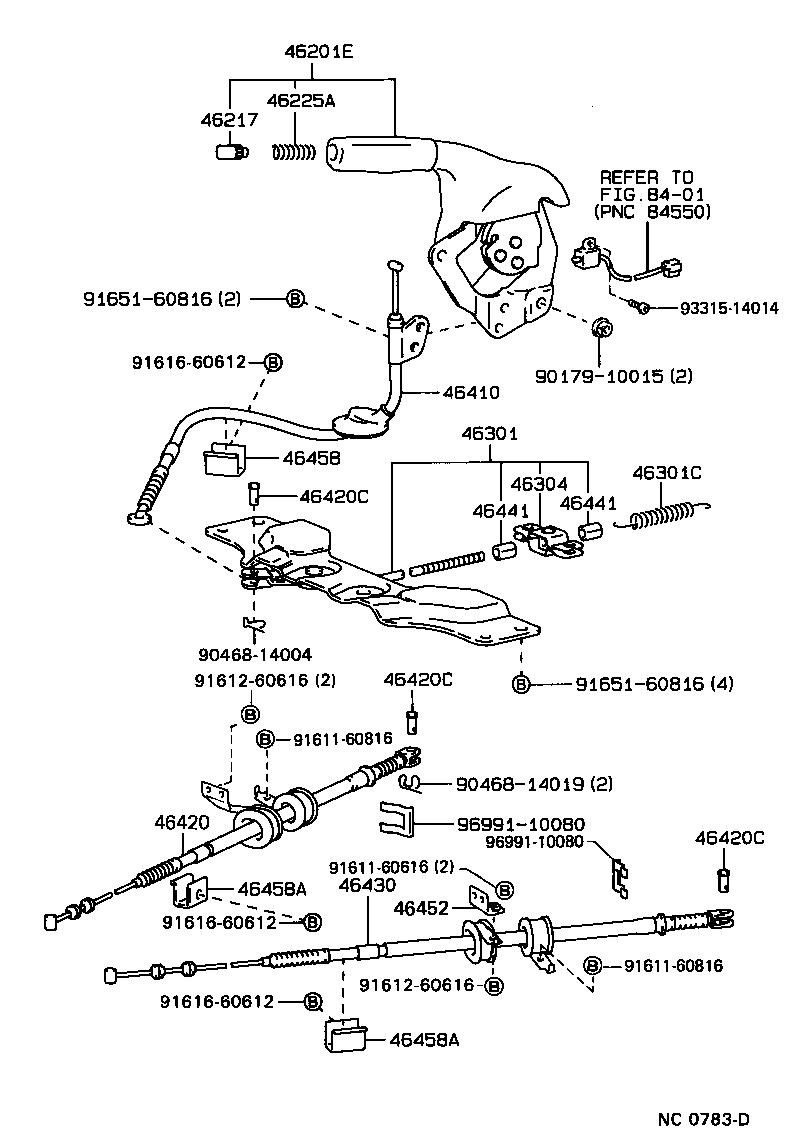

PARKING BRAKE CABLE

(9001- )

 MR2 |  PARKING BRAKE CABLE 46201E - LEVER SUB-ASSY, PARKING BRAKE 46217 - KNOB, PARKING BRAKE RELEASE ROD 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46441 - NUT, WIRE ADJUSTING, NO.1 46441 - NUT, WIRE ADJUSTING, NO.1 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 46458 - RETAINER, CABLE 46458A - RETAINER, CABLE 46458A - RETAINER, CABLE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
