TOYOTA LAND CRUISER 40 BJ42LV-MCJK / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

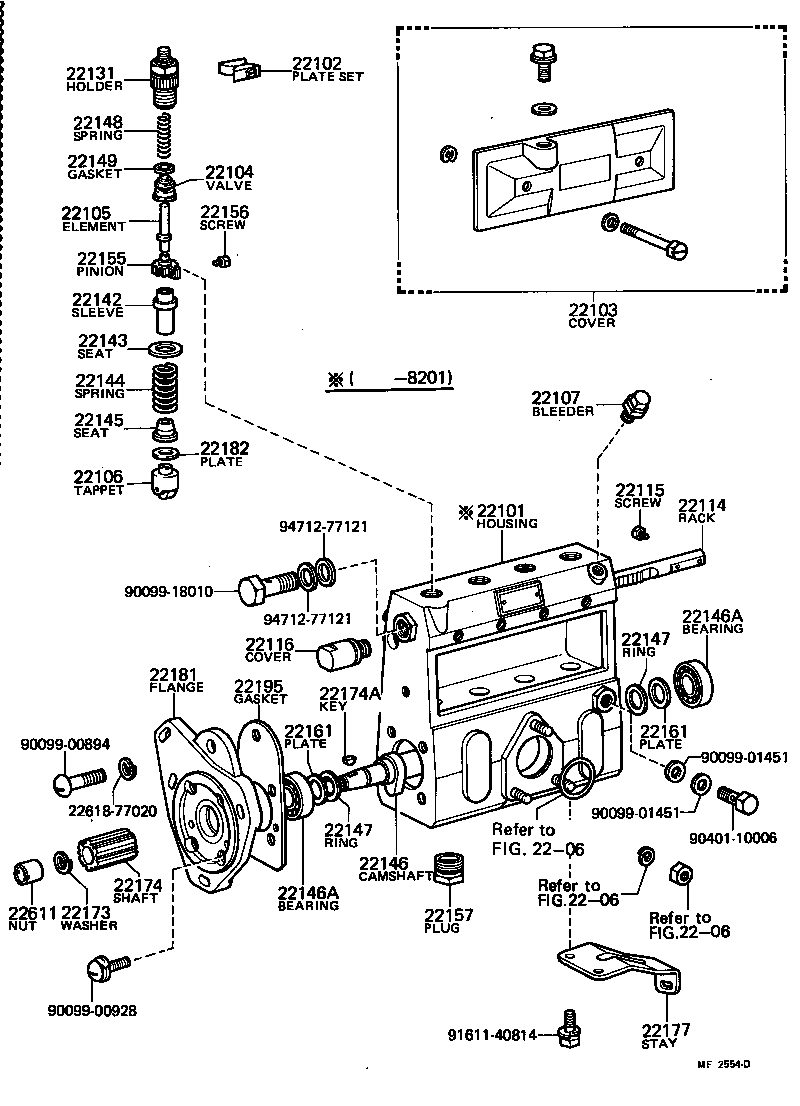

INJECTION PUMP BODY

(8008- )3B

 LAND CRUISER 40 |  INJECTION PUMP BODY ** Refer Fig ** Refer Fig ** Refer Fig 22101 - HOUSING SUB-ASSY, INJECTION PUMP 22102 - PLATE SET, VALVE HOLDER LOCK 22103 - COVER SUB-ASSY, INJECTION PUMP 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY 22105 - ELEMENT SUB-ASSY, INJECTION PUMP 22106 - TAPPET SUB-ASSY, INJECTION PUMP 22107 - BLEEDER SUB-ASSY, AIR 22114 - RACK, CONTROL 22115 - SCREW, RACK GUIDE 22116 - COVER, CONTROL RACK 22131 - HOLDER, DELIVERY VALVE 22142 - SLEEVE, PLUNGER CONTROL 22143 - SEAT, SPRING UPPER 22144 - SPRING, PUMP PLUNGER 22145 - SEAT, SPRING, LOWER 22146 - CAMSHAFT, INJECTION PUMP 22146A - BEARING(FOR INJECTION CAMSHAFT) 22146A - BEARING(FOR INJECTION CAMSHAFT) 22147 - RING, CAMSHAFT ADJUST 22147 - RING, CAMSHAFT ADJUST 22148 - SPRING, DELIVERY VALVE 22149 - GASKET, DELIVERY VALVE 22155 - PINION, PLUNGER CONTROL 22156 - SCREW, PLUNGER CONTROL PINION CLAMP 22157 - PLUG, INJECTION PUMP FELT PLATE 22161 - PLATE, CAMSHAFT SHIM 22161 - PLATE, CAMSHAFT SHIM 22173 - WASHER, SPRING 22174 - SHAFT, SPLINE 22174A - KEY(FOR SPLINE SHAFT) 22177 - STAY, INJECTION PUMP BODY 22181 - FLANGE, INJECTION PUMP 22182 - PLATE, TAPPET ADJUSTING SHIM 22195 - GASKET, BEARING COVER 22611 - NUT, TIMER ROUND  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
