TOYOTA LAND CRUISER 40 BJ42LV-MCJK / TOOL-ENGINE-FUEL / CRANKSHAFT PISTON

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

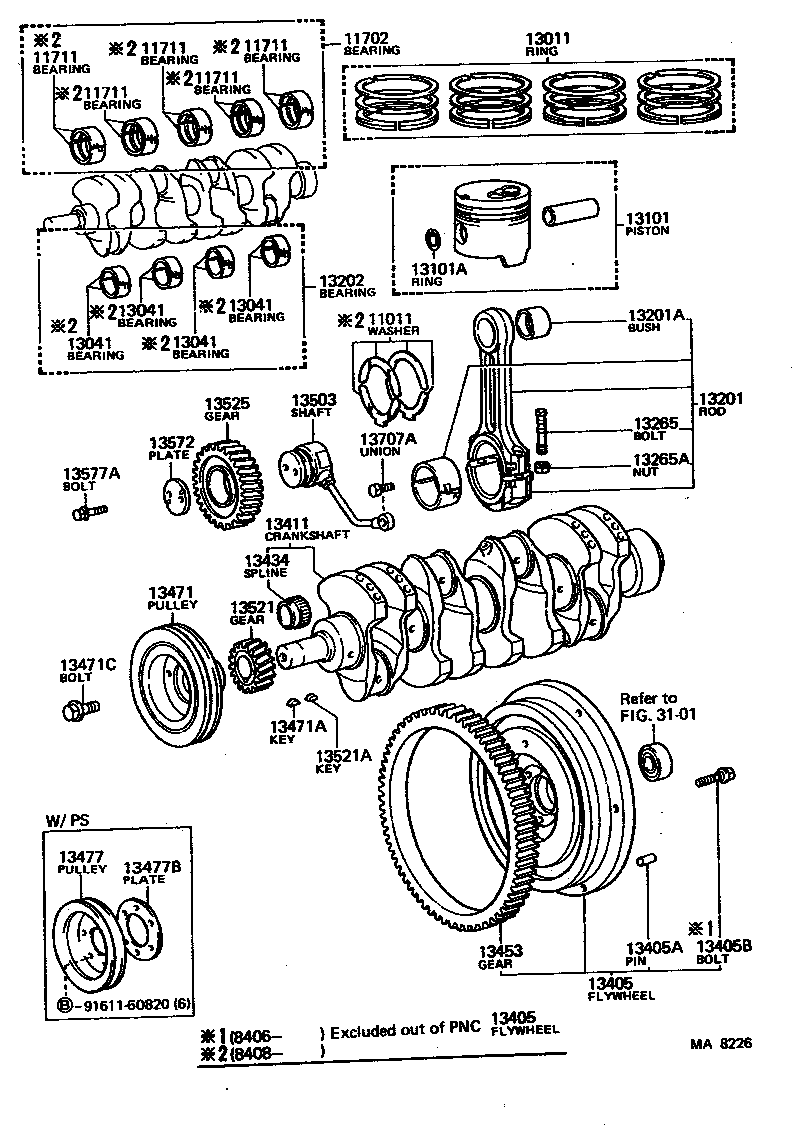

CRANKSHAFT PISTON

(8008- )3B

 LAND CRUISER 40 |  CRANKSHAFT PISTON 11011 - WASHER SET, CRANKSHAFT THRUST 11702 - BEARING SET, CRANKSHAFT 11711 - BEARING, CRANKSHAFT 11711 - BEARING, CRANKSHAFT 11711 - BEARING, CRANKSHAFT 11711 - BEARING, CRANKSHAFT 11711 - BEARING, CRANKSHAFT 13011 - RING SET, PISTON 13041 - BEARING, CONNECTING ROD 13041 - BEARING, CONNECTING ROD 13041 - BEARING, CONNECTING ROD 13041 - BEARING, CONNECTING ROD 13101 - PISTON SUB-ASSY, W/PIN 13101A - RING, HOLE SNAP(FOR PISTON PIN) 13201 - ROD SUB-ASSY, CONNECTING 13201A - BUSH(FOR CONNECTING ROD SMALL END) 13202 - BEARING SET, CONNECTING ROD 13265 - BOLT, CONNECTING ROD 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) 13405 - FLYWHEEL SUB-ASSY 13405 - FLYWHEEL SUB-ASSY 13405A - PIN, STRAIGHT(FOR FLYWHEEL) 13405B - BOLT, FLYWHEEL SET 13411 - CRANKSHAFT 13434 - SPLINE, OIL PUMP DRIVE 13453 - GEAR, FLYWHEEL RING 13471 - PULLEY, CRANKSHAFT 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) 13477 - PULLEY, CRANKSHAFT, NO.2 13477B - PLATE, CRANKSHAFT PULLEY, NO.2 13503 - SHAFT SUB-ASSY, IDLE GEAR 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) 13525 - GEAR, IDLE, NO.1 13572 - PLATE, IDLE GEAR THRUST 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) 13707A - UNION(FOR OIL PIPE, NO.1) ** Refer Fig  ** Std Part
