TOYOTA LAND CRUISER 40 BJ42LV-MCJK / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

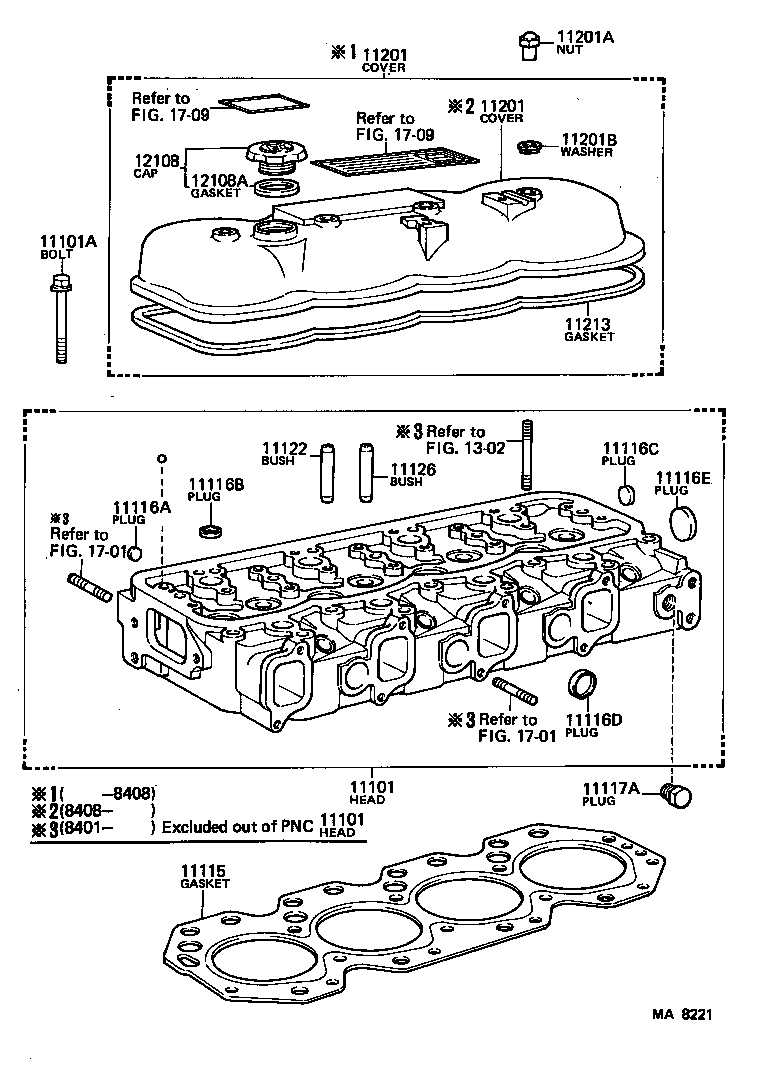

CYLINDER HEAD

(8008- )3B

 LAND CRUISER 40 |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11115 - GASKET, CYLINDER HEAD 11116A - PLUG, TIGHT, NO.1 11116B - PLUG, TIGHT, NO.2 11116C - PLUG, TIGHT, NO.3 11116D - PLUG, TIGHT, NO.4 11116E - PLUG, TIGHT, NO.5 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig
