TOYOTA CRESSIDA MX36L-WHNA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

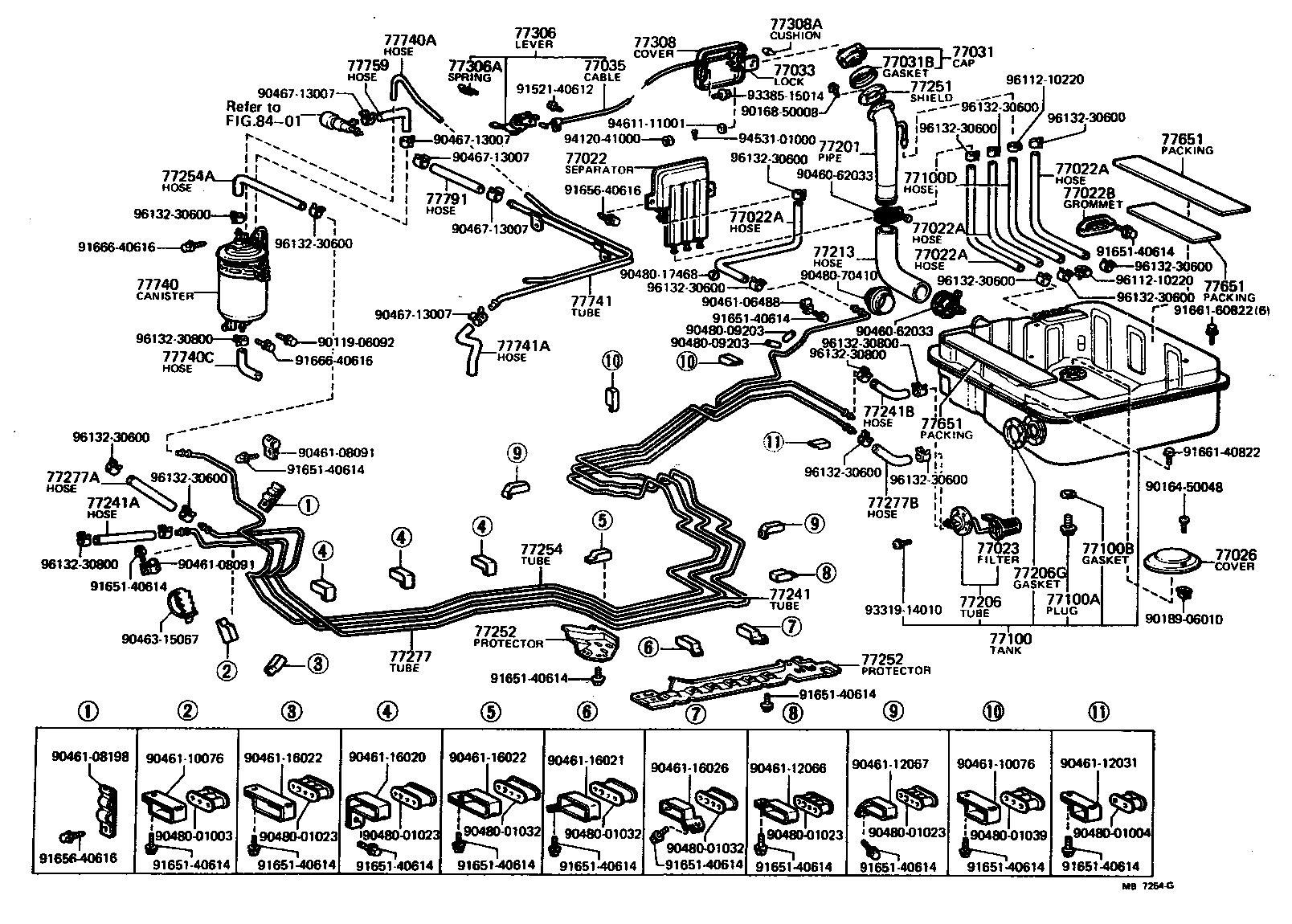

FUEL TANK TUBE

(7708-7908)MX36

CRESSIDA | FUEL TANK TUBE 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022B - GROMMET(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE) 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77026 - COVER SUB-ASSY, FUEL SENDER GAGE 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77033 - LOCK SUB-ASSY, FUEL TANK CAP 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) 77213 - HOSE, FUEL TANK SUB INLET 77241 - TUBE, FUEL MAIN, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77251 - SHIELD, FUEL TANK, INLET, NO.1 77252 - PROTECTOR, FUEL TUBE 77252 - PROTECTOR, FUEL TUBE 77254 - TUBE, FUEL EMISSION, NO.1 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77277 - TUBE, FUEL RETURN, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77306A - SPRING, FUEL LID OPEN LEVER 77308 - COVER SUB-ASSY, FUEL INLET BOX 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77651 - PACKING, FUEL TANK BRACKET 77651 - PACKING, FUEL TANK BRACKET 77651 - PACKING, FUEL TANK BRACKET 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77741 - TUBE, FUEL VAPOR FEED 77741A - HOSE, FUEL, (FOR VAPOR FEED) 77759 - HOSE, CHARCOAL CANISTER 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
