TOYOTA LAND CRUISER 40 55 FJ55LG-KA / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

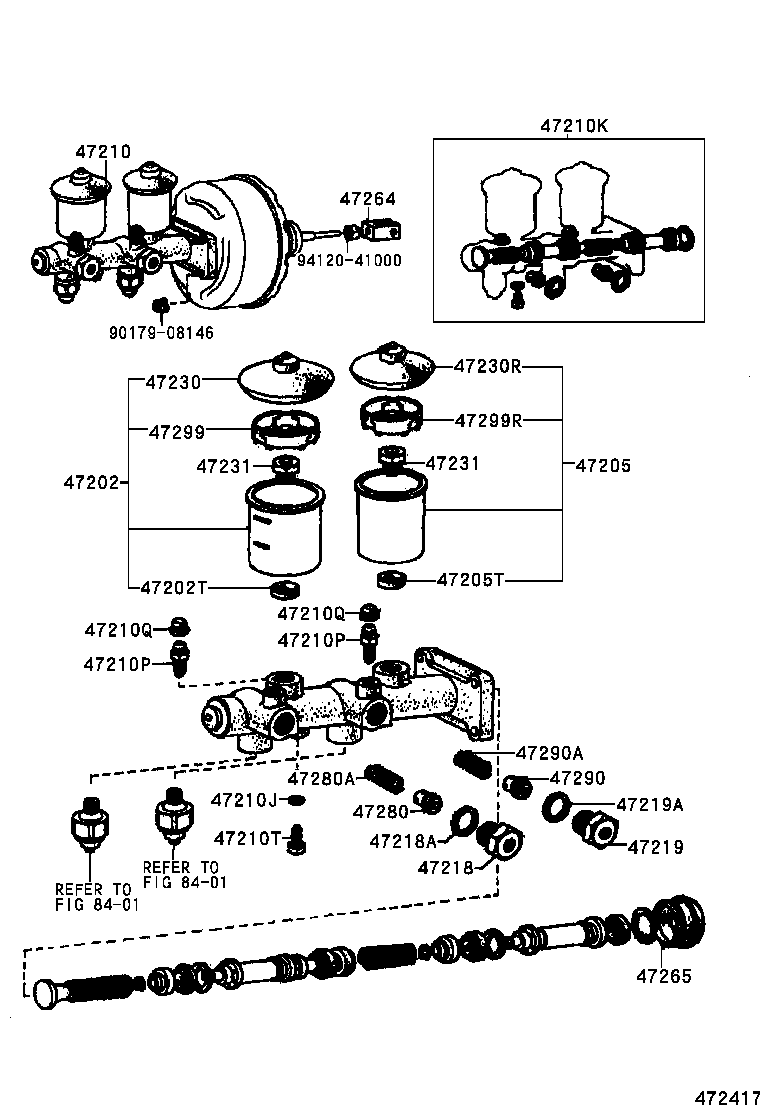

BRAKE MASTER CYLINDER

(7501-7509)

LAND CRUISER 40 55 | BRAKE MASTER CYLINDER 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER 47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1) 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) 47205T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2) 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER 47210J - GASKET(FOR MASTER CYLINDER) 47210K - CYLINDER KIT, BRAKE MASTER 47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER) 47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER) 47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER) 47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER) 47210T - BOLT(FOR BRAKE MASTER CYLINDER) 47218 - PLUG, MASTER CYLINDER FLUID OUTLET 47218A - GASKET(FOR FLUID OUTLET PLUG) 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET 47264 - CLEVIS, MASTER CYLINDER PUSH ROD 47265 - BOOT, MASTER CYLINDER 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK 47280A - SPRING, COMPRESSION 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR ** Refer Fig ** Refer Fig ** Std Part ** Std Part
