TOYOTA HIACE REGIUSACE KDH201K-ERPDY5 / POWERTRAIN-CHASSIS / OIL COOLER TUBE ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

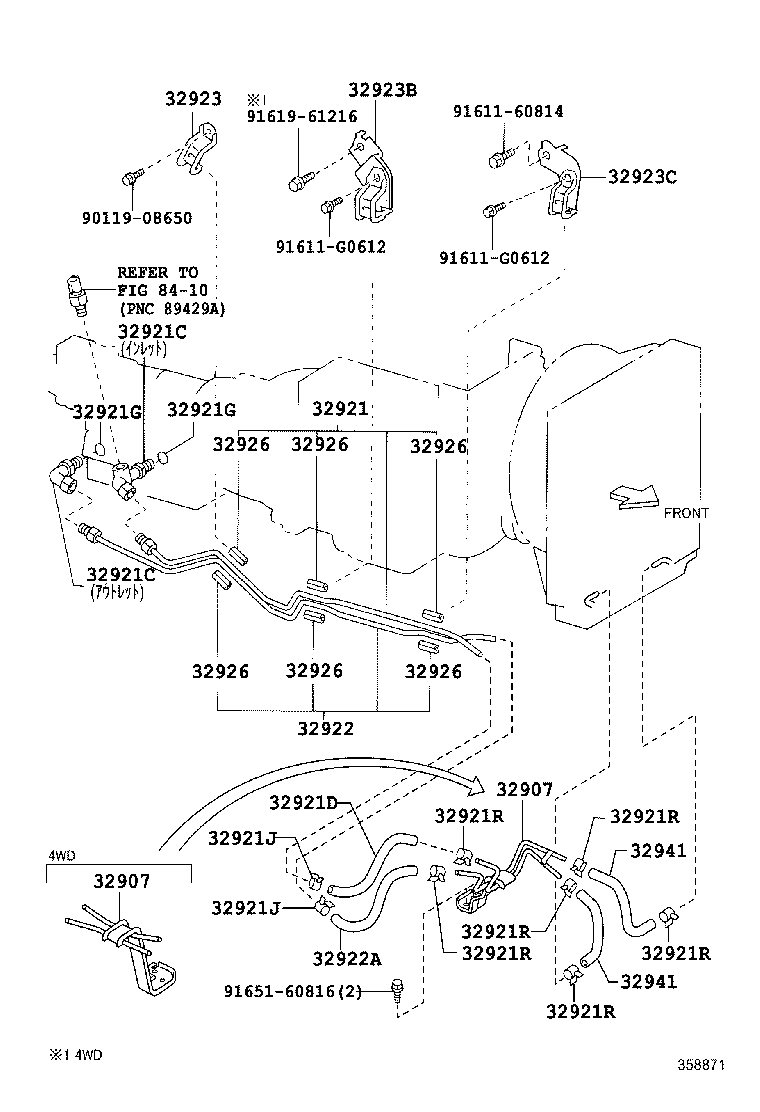

OIL COOLER TUBE ATM

A340E,A340F (1312- )KDH20#,211,22#..4FC

HIACE REGIUSACE | OIL COOLER TUBE ATM 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 32921 - TUBE, OIL COOLER INLET, NO.1 32921C - UNION(FOR OIL COOLER TUBE) 32921C - UNION(FOR OIL COOLER TUBE) 32921D - HOSE(FOR OIL COOLER INLET) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921J - CLIP(FOR OIL COOLER HOSE) 32921J - CLIP(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32922 - TUBE, OIL COOLER OUTLET, NO.1 32922A - HOSE(FOR OIL COOLER OUTLET) 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32941 - HOSE, OIL COOLER INLET, NO.1 32941 - HOSE, OIL COOLER INLET, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
