TOYOTA SIENTA NCP85G-KWPUK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

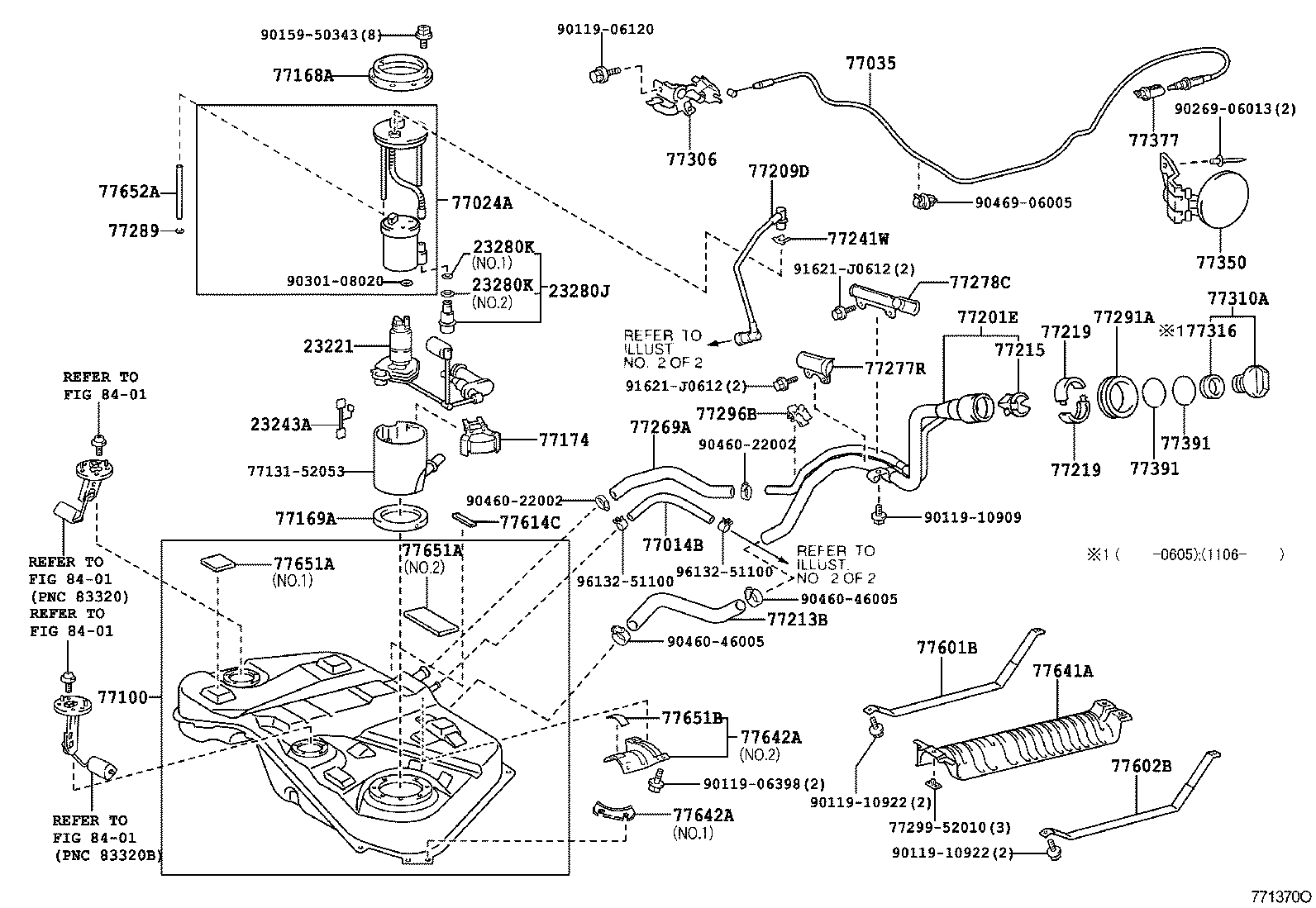

フユ-エル タンク ILLUST NO. 1 OF 2(0309- )NCP85

 SIENTA |  FUEL TANK TUBE 23221 - PUMP, FUEL 23243A - WIRE, FUEL PUMP MOTOR 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) 77024A - PLATE SUB-ASSY, FUEL SUCTION 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL  ** Std Part 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77215 - PLATE, FUEL TANK FILLER PIPE FLANGE 77219 - COVER, FUEL TANK FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77241W - CLIP, TUBE JOINT 77269A - HOSE, FUEL TANK BREATHER 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77289 - HOLDER, FUEL TANK PIPE SETTING 77291A - SHIELD, FUEL TANK FILLER PIPE 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1  ** Std Part 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77391 - RING, FUEL INLET BOX 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77614C - SEAL, FUEL TANK COVER 77641A - PROTECTOR, FUEL TANK, NO.1 77642A - PROTECTOR, FUEL TANK, NO.2 77642A - PROTECTOR, FUEL TANK, NO.2 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651B - CUSHION, FUEL TANK 77652A - CUSHION, FUEL TANK, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
