TOYOTA PORTE SPADE NCP145-BEXYK / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

(1207- )NCP145

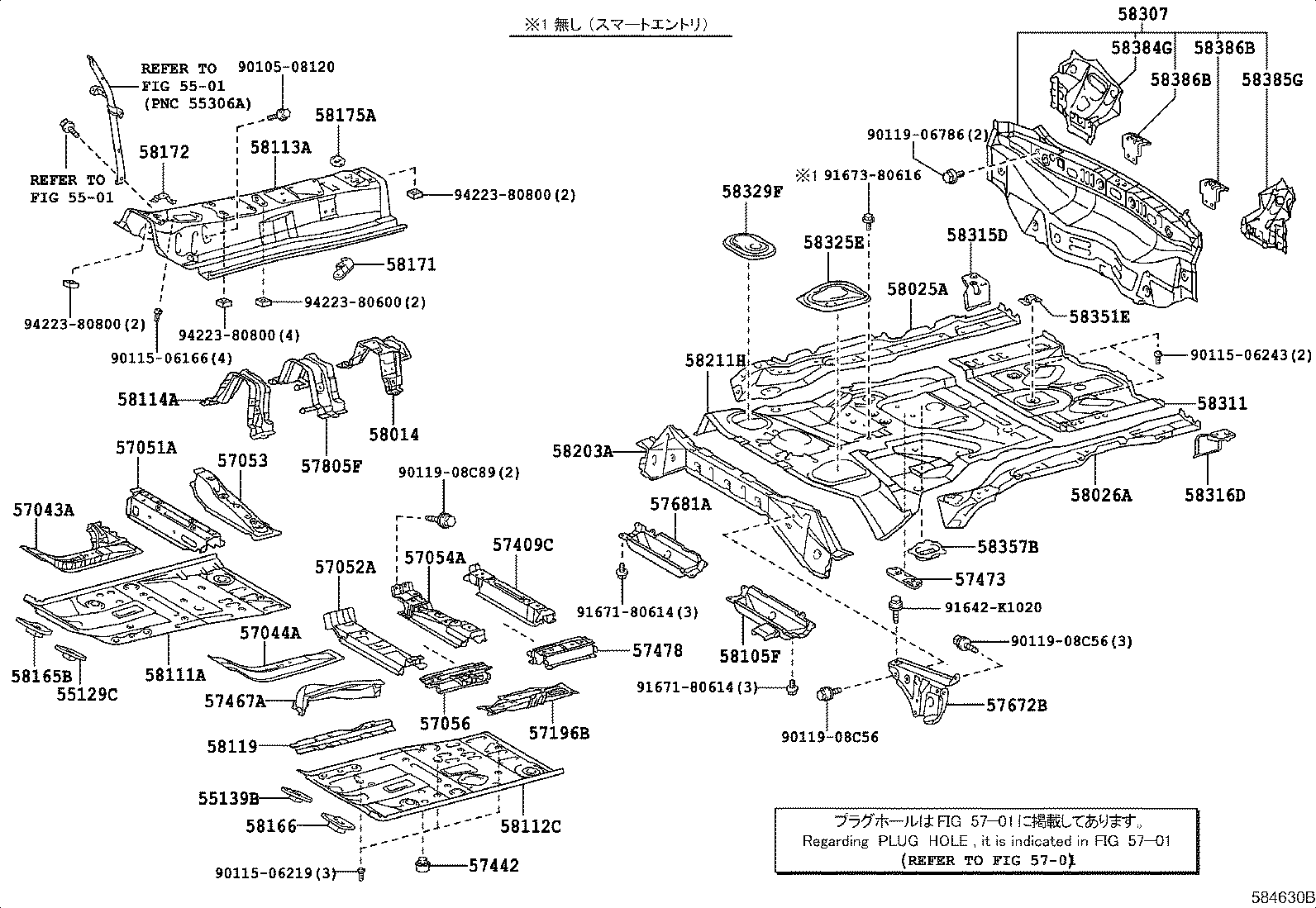

PORTE SPADE | FLOOR PAN LOWER BACK PANEL ** Refer Fig ** Refer Fig 55129C - COVER, DASH PANEL HOLE 55139B - COVER, DASH PANEL HOLE, LH ** Refer Fig 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57056 - REINFORCEMENT SUB-ASSY, CROSS MEMBER FLOOR, NO.6 57196B - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH 57409C - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57442 - PLUG, STEP PANEL HOLE 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH 57473 - REINFORCEMENT, REAR SEAT BACK HINGE 57478 - GUSSET, REAR SEAT, LH 57672B - BRACE, REAR FLOOR NO.1 CROSSMEMBER, LH 57681A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH 58105F - RETAINER SUB-ASSY, FLOOR CLAMP 58111A - PAN, FRONT FLOOR, RH 58112C - PAN, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58114A - REINFORCEMENT, FRONT FLOOR PANEL 58119 - PLATE, FRONT FLOOR SIDE, FRONT 58165B - COVER, FRONT FLOOR, RH 58166 - COVER, FRONT FLOOR, LH 58171 - REINFORCEMENT, PARKING BRAKE BASE 58172 - BRACKET, COMPUTER MOUNTING, NO.3 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH 58211H - PAN, CENTER FLOOR 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58315D - EXTENSION, REAR FLOOR PAN, RH 58316D - EXTENSION, REAR FLOOR PAN, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 58351E - BRACKET, SPARE WHEEL CLAMP 58357B - BRACKET, ACTUATOR COVER, NO.3 RH 58384G - GUSSET, LOWER BACK, UPPER RH 58385G - GUSSET, LOWER BACK, UPPER LH 58386B - BRACKET, REAR BUMPER COVER, NO.2 58386B - BRACKET, REAR BUMPER COVER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
