TOYOTA IQ KGJ10-BGXRG / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

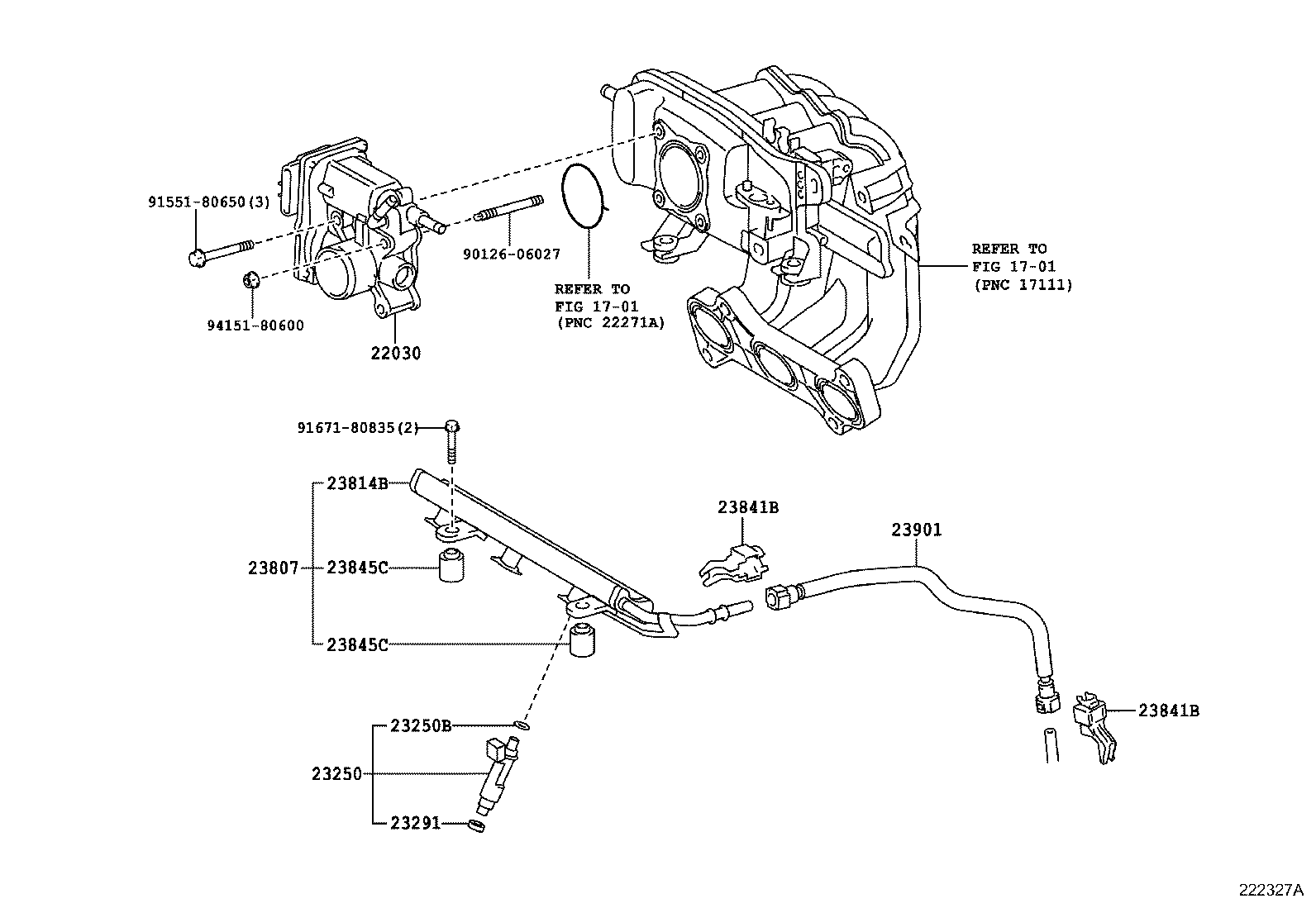

FUEL INJECTION SYSTEM

(0811-1304)1KRFE ; (1309- )1KRFE

 IQ |  FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig 22030 - BODY ASSY, THROTTLE W/MOTOR 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23291 - INSULATOR, INJECTOR VIBRATION 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23814B - PIPE, FUEL DELIVERY 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23845C - INSULATOR, FUEL PIPE 23845C - INSULATOR, FUEL PIPE 23901 - TUBE SUB-ASSY, FUEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part
