TOYOTA IQ KGJ10-BGXRG / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

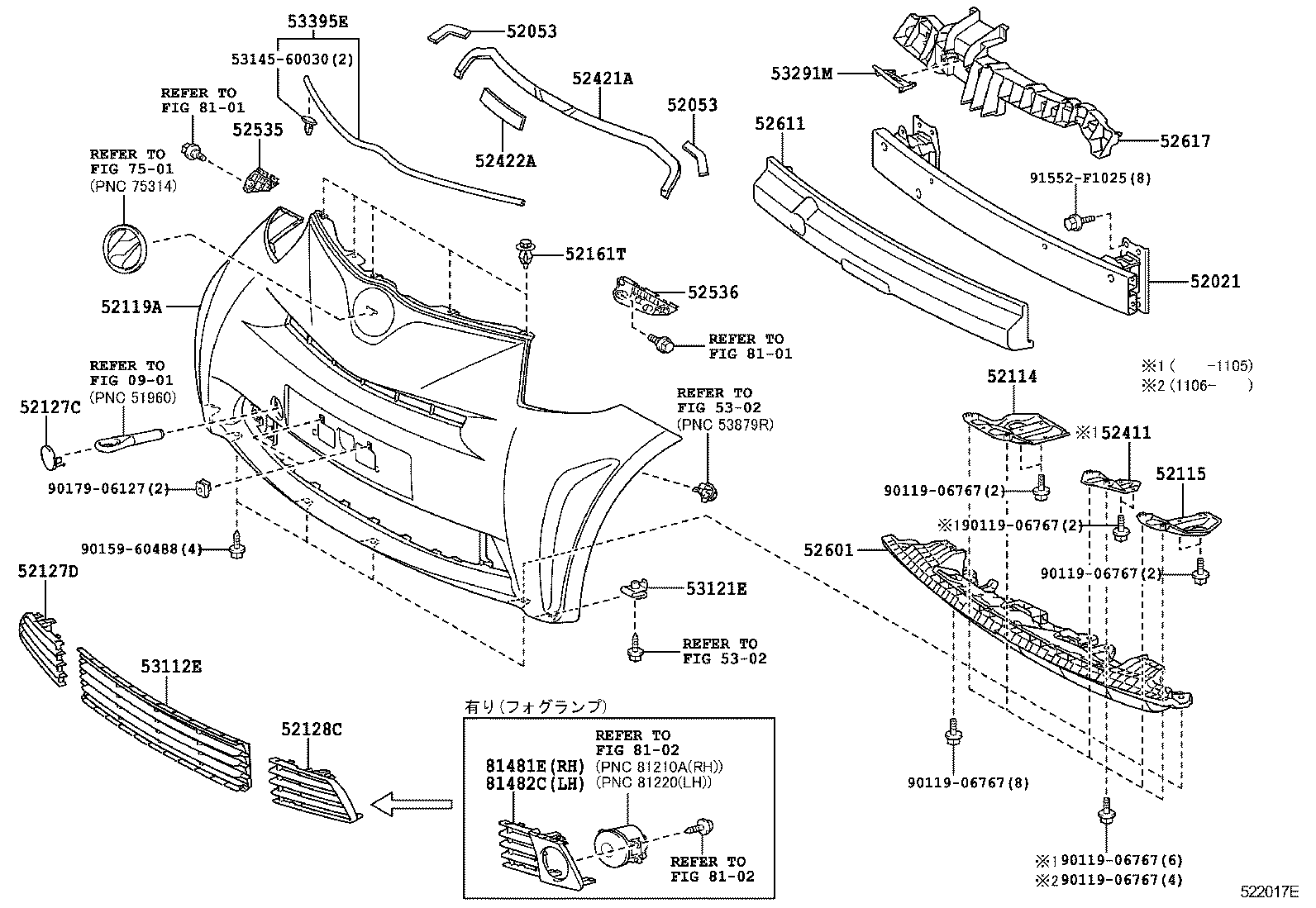

FRONT BUMPER BUMPER STAY

(0811-1205)CVFC ; (1205- )KGJ10

IQ | FRONT BUMPER BUMPER STAY ** Refer Fig 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52053 - PAD SUB-ASSY, FRONT BUMPER 52053 - PAD SUB-ASSY, FRONT BUMPER 52114 - GUARD, BUMPER, FRONT RH 52115 - GUARD, BUMPER, FRONT LH 52119A - COVER, FRONT BUMPER 52127C - COVER, FRONT BUMPER HOLE 52127D - COVER, FRONT BUMPER HOLE, RH 52128C - COVER, FRONT BUMPER HOLE, LH 52161T - PIECE, FRONT BUMPER 52411 - GUARD, FRONT BUMPER 52421A - PAD, FRONT BUMPER 52422A - PAD, FRONT BUMPER, RH 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY 52611 - ABSORBER, FRONT BUMPER ENERGY 52617 - ABSPRBER, RADIATOR SUPPORT, UPPER ** Refer Fig ** Refer Fig 53112E - GRILLE, RADIATOR, LOWER NO.1 53121E - CLIP(FOR FRONT BUMPER), NO.1 ** Std Part 53291M - SEAL, RADIATOR SUPPORT TO FRAME, RH 53395E - SEAL, HOOD TO FRONT END PANEL ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 81481E - COVER, FOG LAMP, RH 81482C - COVER, FOG LAMP, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
