TOYOTA DYNA TOYOACE XZU314D-TWMQW3 / TOOL-ENGINE-FUEL / TIMING GEAR COVER REAR END PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

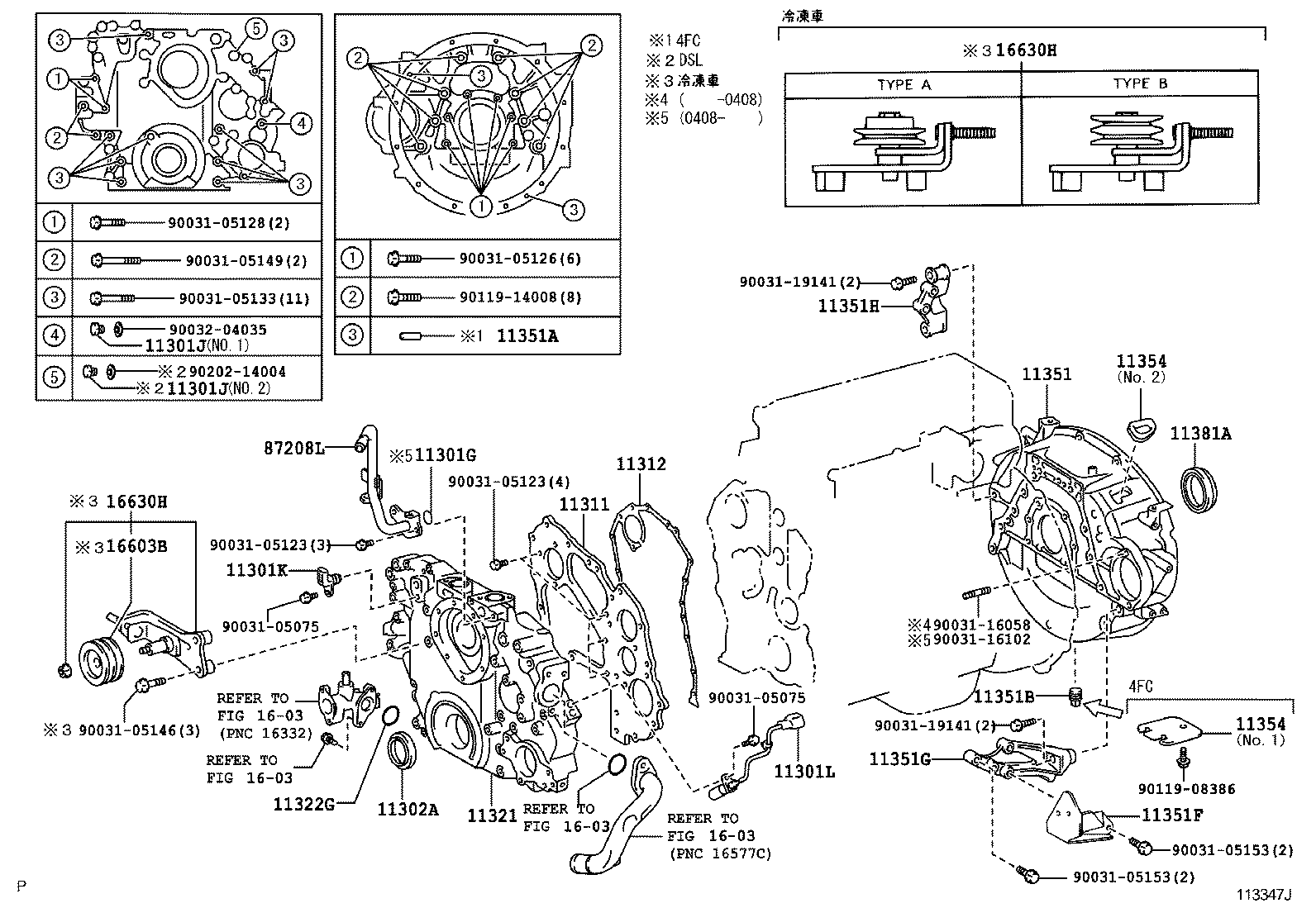

TIMING GEAR COVER REAR END PLATE

(0406- )N04C..CBU,IV3,IV6

 DYNA TOYOACE |  TIMING GEAR COVER REAR END PLATE 11301G - RING, O(FOR TIMING GEAR CASE, UPPER) 11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE) 11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE) 11301K - SENSOR, CRANK POSITION 11301L - SENSOR, CRANK POSITION NO.2 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) 11311 - PLATE, FRONT END 11312 - GASKET, FRONT END PLATE 11321 - CASE, TIMING GEAR 11322G - RING, O(FOR TIMING GEAR COVER) 11351 - HOUSING, FLYWHEEL 11351A - PIN, STRAIGHT(FOR FLYWHEEL HOUSING) 11351B - PLUG, HOLE(FOR FLYWHEEL HOUSING) 11351F - PLATE, STIFFENER, LH(FOR FLYWHEEL HOUSING) 11351G - STAY, LH(FOR FLYWHEEL HOUSING) 11351H - STAY, RH(FOR FLYWHEEL HOUSING) 11354 - SEAL, FLYWHEEL HOUSING DUST 11354 - SEAL, FLYWHEEL HOUSING DUST 11381A - SEAL, ENGINE REAR OIL ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 16603B - PULLEY SUB-ASSY, IDLER 16630H - PULLEY ASSY, IDLER 16630H - PULLEY ASSY, IDLER 87208L - PIPE SUB-ASSY, WATER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
