TOYOTA DYNA TOYOACE RZY281H-TQMGC3 / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

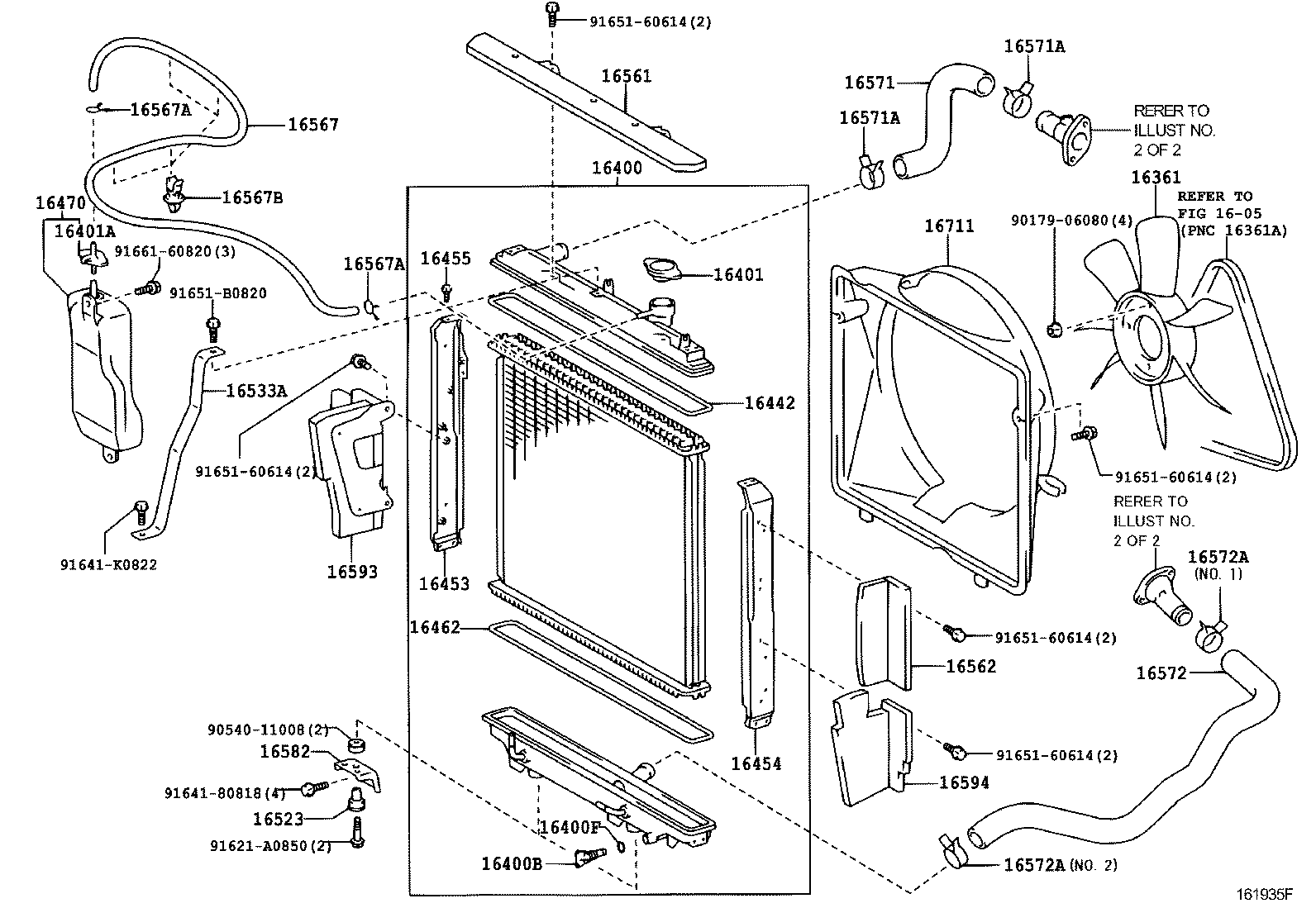

ILLUST NO. 1 OF 2(0308-0708)3RZFPE

DYNA TOYOACE | RADIATOR WATER OUTLET ** Refer Fig 16361 - FAN 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK 16442 - RING, O(FOR RADIATOR UPPER TANK) 16453 - PLATE, RADIATOR SIDE 16454 - PLATE, RADIATOR SIDE 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470 - TANK ASSY, RADIATOR RESERVE 16523 - CUSHION, SUB-RADIATOR SUPPORT 16533A - SUPPORT, SUB-RADIATOR 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 16567 - HOSE(FOR RADIATOR RESERVE TANK) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16582 - BRACKET, RADIATOR, NO.1 16593 - GUIDE, RADIATOR AIR, NO.1 16594 - GUIDE, RADIATOR AIR, NO.2 16711 - SHROUD, FAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
