TOYOTA DYNA TOYOACE KDY270-TKMDY / TOOL-ENGINE-FUEL / VACUUM PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

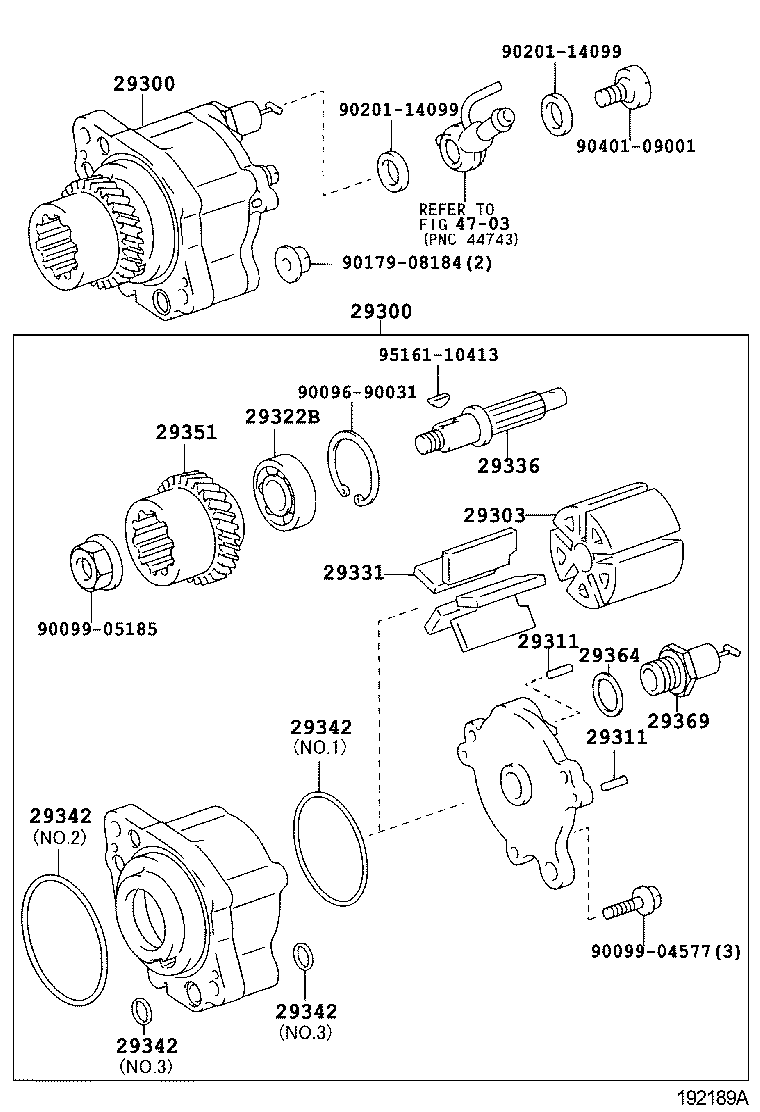

VACUUM PUMP

(0408- )1KDFTV,2KDFTV

 DYNA TOYOACE |  VACUUM PUMP 29300 - PUMP ASSY, VACUUM 29300 - PUMP ASSY, VACUUM 29303 - ROTOR SUB-ASSY, VACUUM PUMP 29311 - PIN, VACUUM PUMP DOWEL, NO.1 29311 - PIN, VACUUM PUMP DOWEL, NO.1 29322B - BEARING, VACUUM PUMP 29331 - BLADE, VACUUM PUMP, A 29336 - SHAFT, VACUUM PUMP 29342 - PACKING, VACUUM PUMP 29342 - PACKING, VACUUM PUMP 29342 - PACKING, VACUUM PUMP 29342 - PACKING, VACUUM PUMP 29351 - GEAR, VACUUM PUMP 29364 - WASHER, VACUUM PUMP 29369 - VALVE SUB-ASSY, CHECK ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
