TOYOTA DYNA TOYOACE KDY230-TKPFY3 / TOOL-ENGINE-FUEL / TIMING GEAR COVER REAR END PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

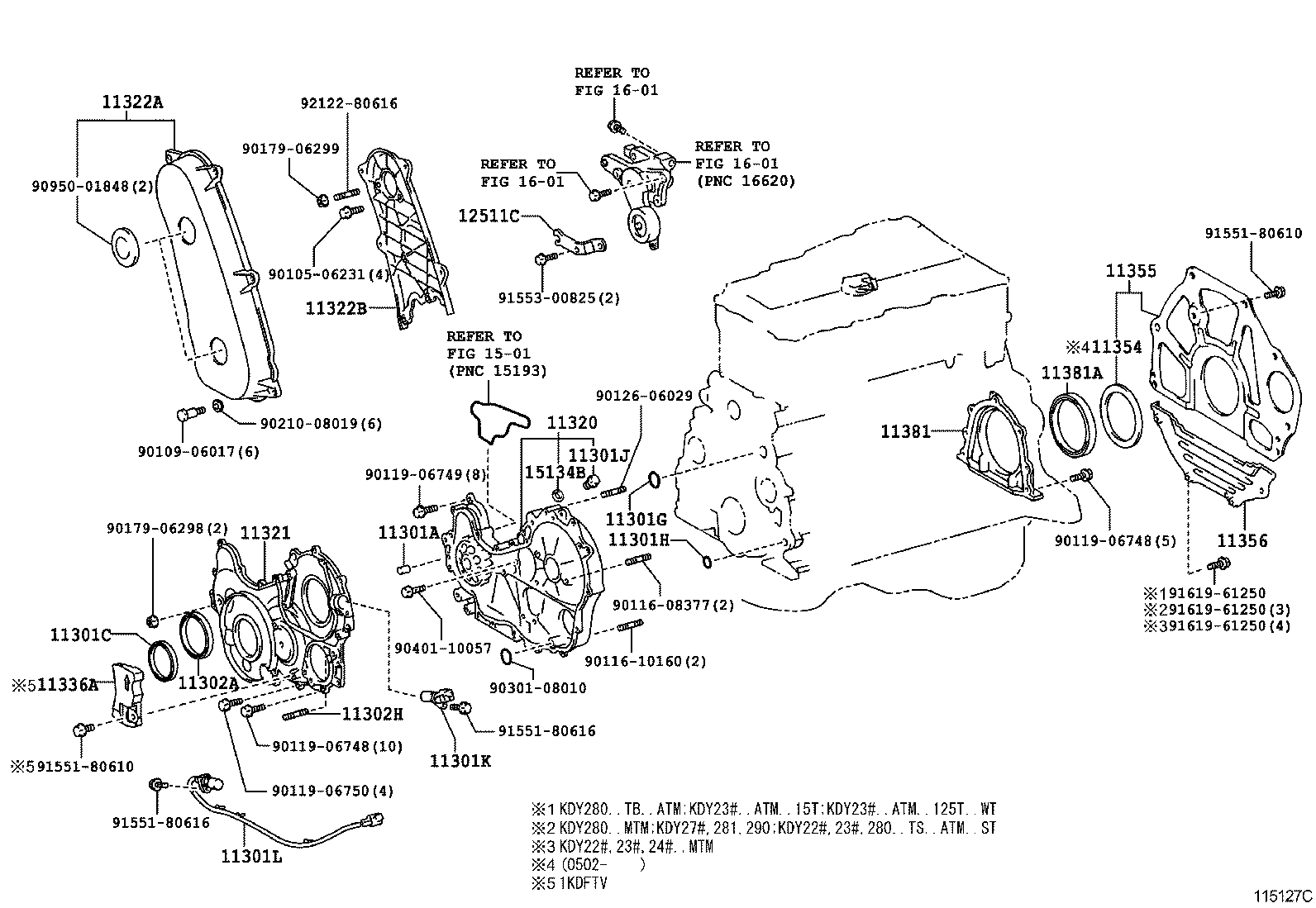

TIMING GEAR COVER REAR END PLATE

(0408-0708)2KDFTV ; (0709-1008)1KDFTV

 DYNA TOYOACE |  TIMING GEAR COVER REAR END PLATE 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) 11301G - RING, O(FOR TIMING GEAR CASE, UPPER) 11301H - RING, O(FOR TIMING GEAR CASE, LOWER) 11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE) 11301K - SENSOR, CRANK POSITION 11301L - SENSOR, CRANK POSITION NO.2 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) 11302H - BOLT, STUD(FOR TIMING GEAR COVER) 11320 - CASE ASSY, TIMING GEAR 11321 - CASE, TIMING GEAR 11322A - COVER, TIMING BELT, NO.1 11322B - COVER, TIMING BELT, NO.2 11336A - INSULATOR, TIMING GEAR COVER 11354 - SEAL, FLYWHEEL HOUSING DUST 11355 - PLATE, REAR END 11356 - PLATE, REAR END, NO.2 11381 - RETAINER, ENGINE REAR OIL SEAL 11381A - SEAL, ENGINE REAR OIL 12511C - BRACKET, ALTERNATOR ** Refer Fig 15134B - GASKET, OIL PUMP RELIEF VALVE ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
