RADIATOR WATER OUTLET

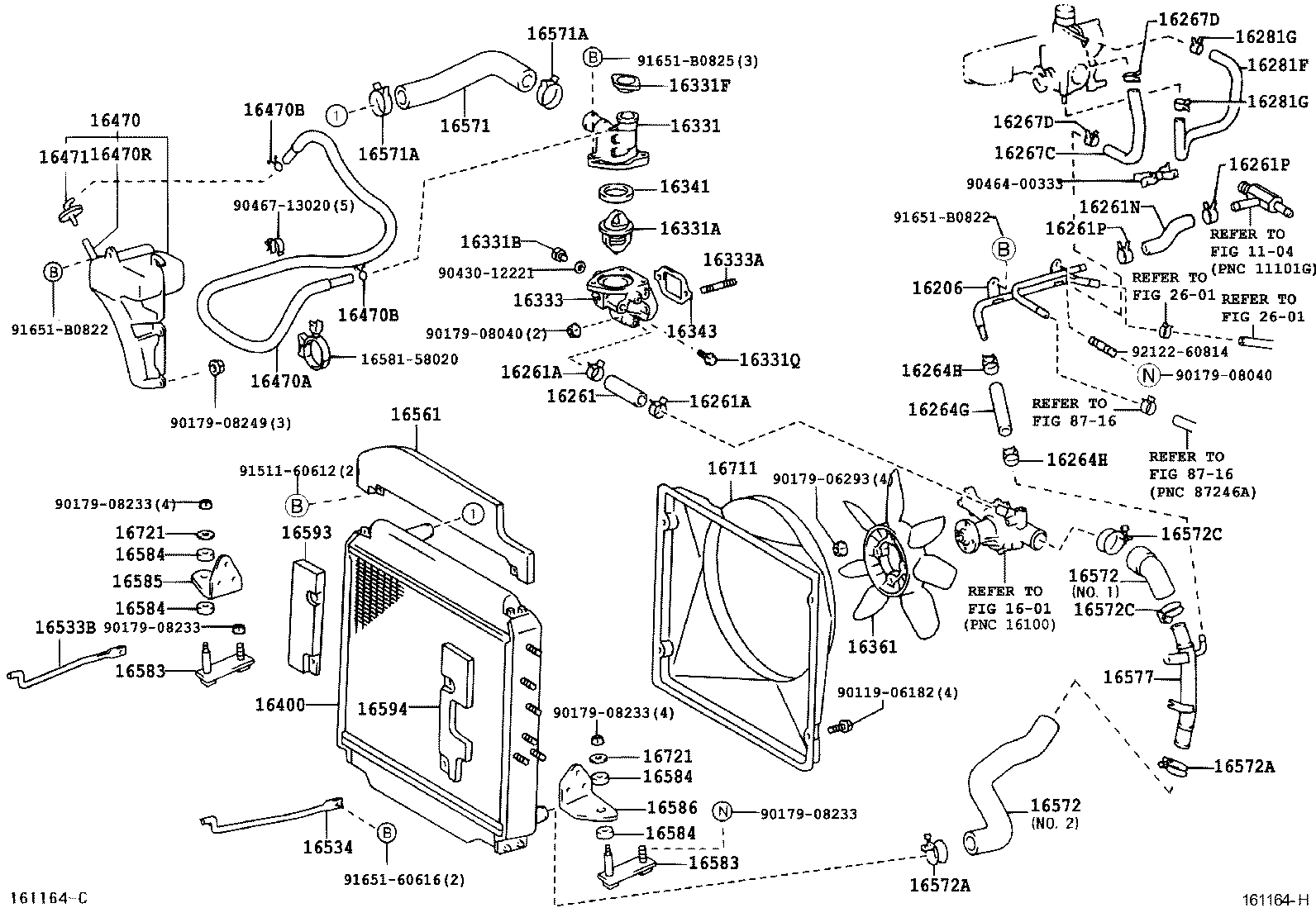

ILLUST NO. 1 OF 2(0306- )1BZ#

 DYNA TOYOACE |  RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig 16206 - PIPE SUB-ASSY, WATER BY-PASS 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261N - HOSE, WATER BY-PASS, NO.2 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264G - HOSE, WATER BY-PASS, NO.3 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) 16267C - HOSE, WATER BY-PASS, NO.4 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) 16281F - HOSE, WATER BY-PASS, NO.5 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) 16331 - OUTLET, WATER 16331A - THERMOSTAT 16331B - PLUG(FOR WATER OUTLET) 16331F - CAP SUB-ASSY(FOR WATER OUTLET) 16331Q - PLUG(FOR WATER OUTLET) 16333 - HOUSING, WATER OUTLET 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) 16341 - GASKET, WATER OUTLET 16343 - GASKET, WATER OUTLET HOUSING 16361 - FAN 16400 - RADIATOR ASSY 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16533B - SUPPORT, RADIATOR, NO.1 16534 - SUPPORT, RADIATOR, NO.2 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) 16577 - PIPE, RADIATOR, NO.7  ** Std Part 16583 - BRACKET, RADIATOR, NO.2 16583 - BRACKET, RADIATOR, NO.2 16584 - INSULATOR, RADIATOR MOUNTING 16584 - INSULATOR, RADIATOR MOUNTING 16584 - INSULATOR, RADIATOR MOUNTING 16584 - INSULATOR, RADIATOR MOUNTING 16585 - BRACKET, RADIATOR, NO.3 16586 - BRACKET, RADIATOR, NO.4 16593 - GUIDE, RADIATOR AIR, NO.1 16594 - GUIDE, RADIATOR AIR, NO.2 16711 - SHROUD, FAN 16721 - PLATE, HOLDER 16721 - PLATE, HOLDER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
