TOYOTA KLUGER L V MCU25W-BWPGK / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR SIDE MEMBER

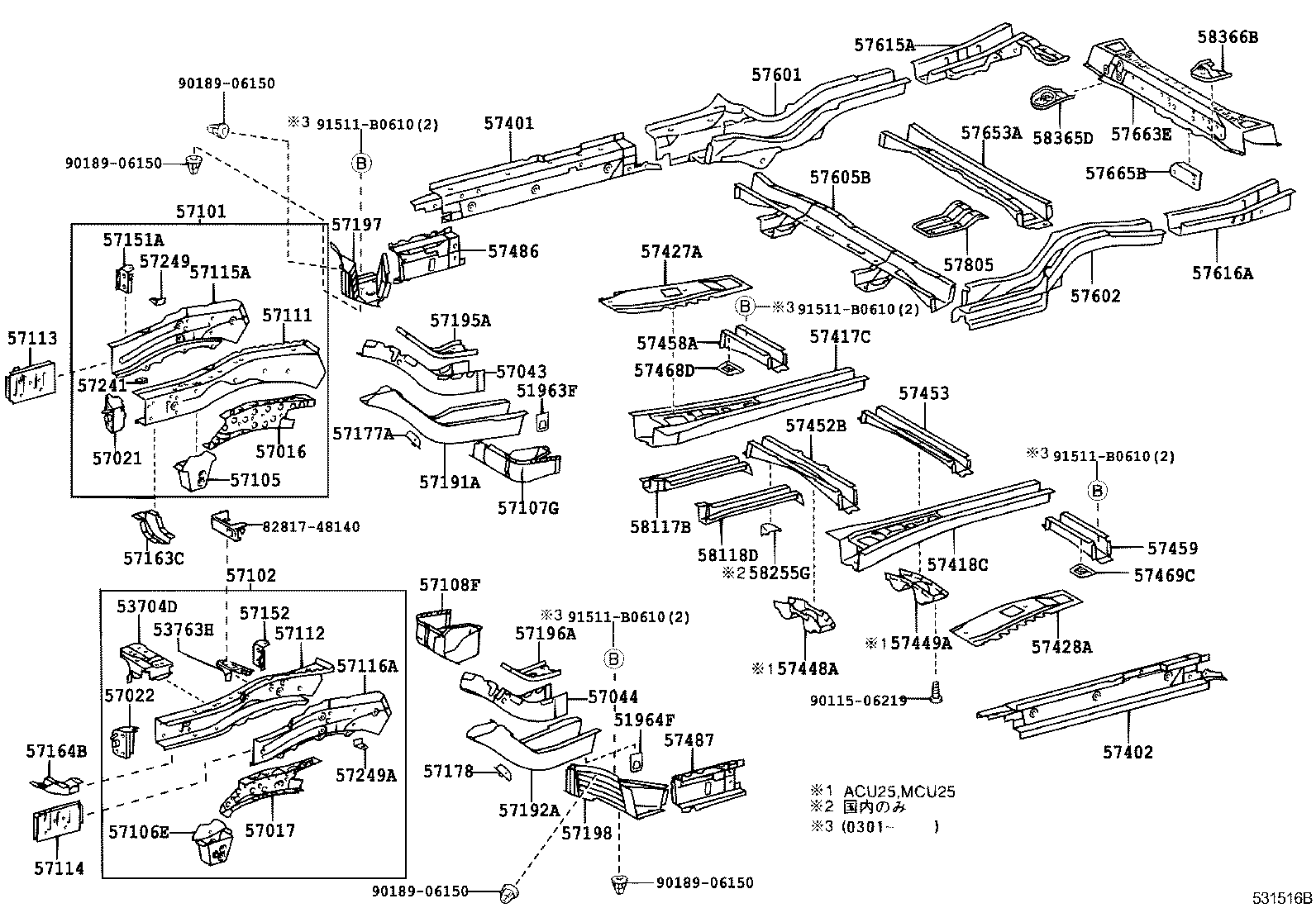

ILLUST NO. 1 OF 2(0208-0308)

KLUGER L V | FLOOR SIDE MEMBER 51963F - HOOK, TRANSPORT 51964F - HOOK, TRANSPORT, LH 53704D - SUPPORT SUB-ASSY, BATTERY, LH 53763H - BRACKET, AIR CLEANER INLET MOUNTING 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH 57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH 57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH 57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH 57191A - MEMBER, FRONT SIDE, INNER REAR RH 57192A - MEMBER, FRONT SIDE, INNER REAR LH 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH 57197 - BOX, TORQUE, FRONT RH 57198 - BOX, TORQUE, FRONT LH 57241 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH 57249 - BRACKET, FLEXIBLE HOSE, NO.1 57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57417C - REINFORCEMENT, FRONT FLOOR UNDER 57418C - REINFORCEMENT, FRONT FLOOR UNDER, LH 57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH 57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH 57448A - BRACKET, DIFF LOCK LEVER MOUNT, NO.1 57449A - BRACKET, DIFF LOCK LEVER MOUNT, NO.2 57452B - MEMBER, FRONT FLOOR CROSS, NO.2 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 57458A - PLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH 57459 - MEMBER, FRONT FLOOR CROSS, NO.2 57468D - BRACKET, FRONT SEAT, OUTSIDE, REAR RH 57469C - BRACKET, FRONT SEAT, OUTSIDE, REAR LH 57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH 57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57615A - MEMBER, REAR FLOOR SIDE, REAR RH 57616A - MEMBER, REAR FLOOR SIDE, REAR LH 57653A - MEMBER, REAR FLOOR CROSS, NO.2 57663E - MEMBER, REAR FLOOR CROSS, CENTER 57665B - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR 58117B - REINFORCEMENT, FRONT FLOOR SIDE, RH 58118D - REINFORCEMENT, FRONT FLOOR SIDE, LH 58255G - MEMBER, FRONT FLOOR CROSS 58365D - BRACKET, FUEL TANK SUPPORT, RH 58366B - BRACKET, FUEL TANK SUPPORT, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
