TOYOTA ALTEZZA ALTEZZA GITA SXE10-AEFVF / ELECTRICAL / NAVIGATION FRONT MONITOR DISPLAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

NAVIGATION FRONT MONITOR DISPLAY

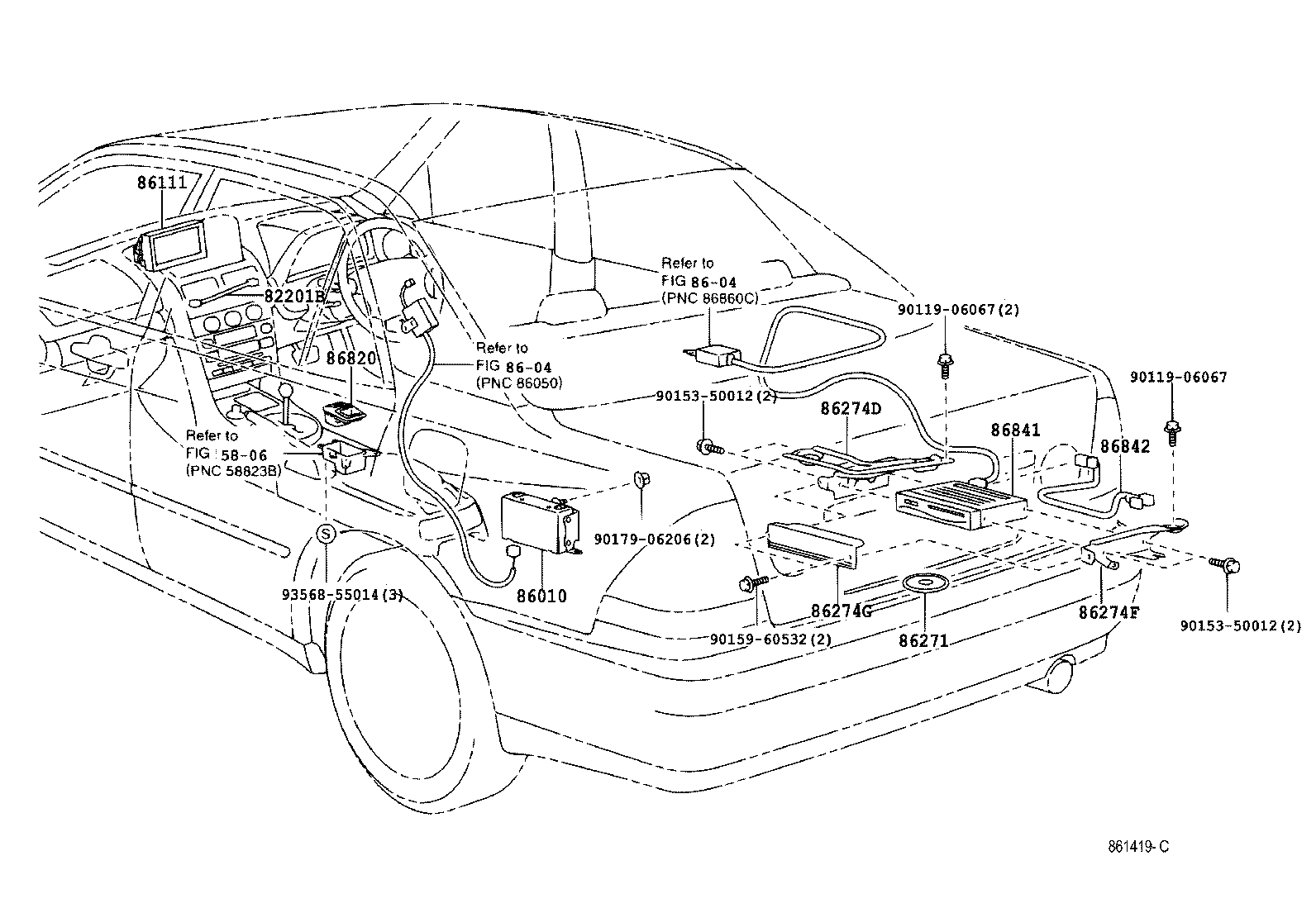

ILLUST NO. 1 OF 2(0105- )SED

ALTEZZA ALTEZZA GITA | NAVIGATION FRONT MONITOR DISPLAY ** Refer Fig 82201B - WIRE, INSTRUMENT PANEL 86010 - TUNER ASSY, TELEVISION ** Refer Fig ** Refer Fig 86111 - MULTI-DISPLAY 86271 - DISC, DISC PLAYER 86274D - BRACKET, DISC PLAYER 86274F - BRACKET, DISC PLAYER, NO.2 86274G - BRACKET, DISC PLAYER, NO.3 86820 - CONTROLLER ASSY, NAVIGATION 86841 - COMPUTER, NAVIGATION 86842 - WIRE, NAVIGATION, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
