TOYOTA WILL VI NCP19-DESNK / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

STEERING COLUMN SHAFT

(0001- )

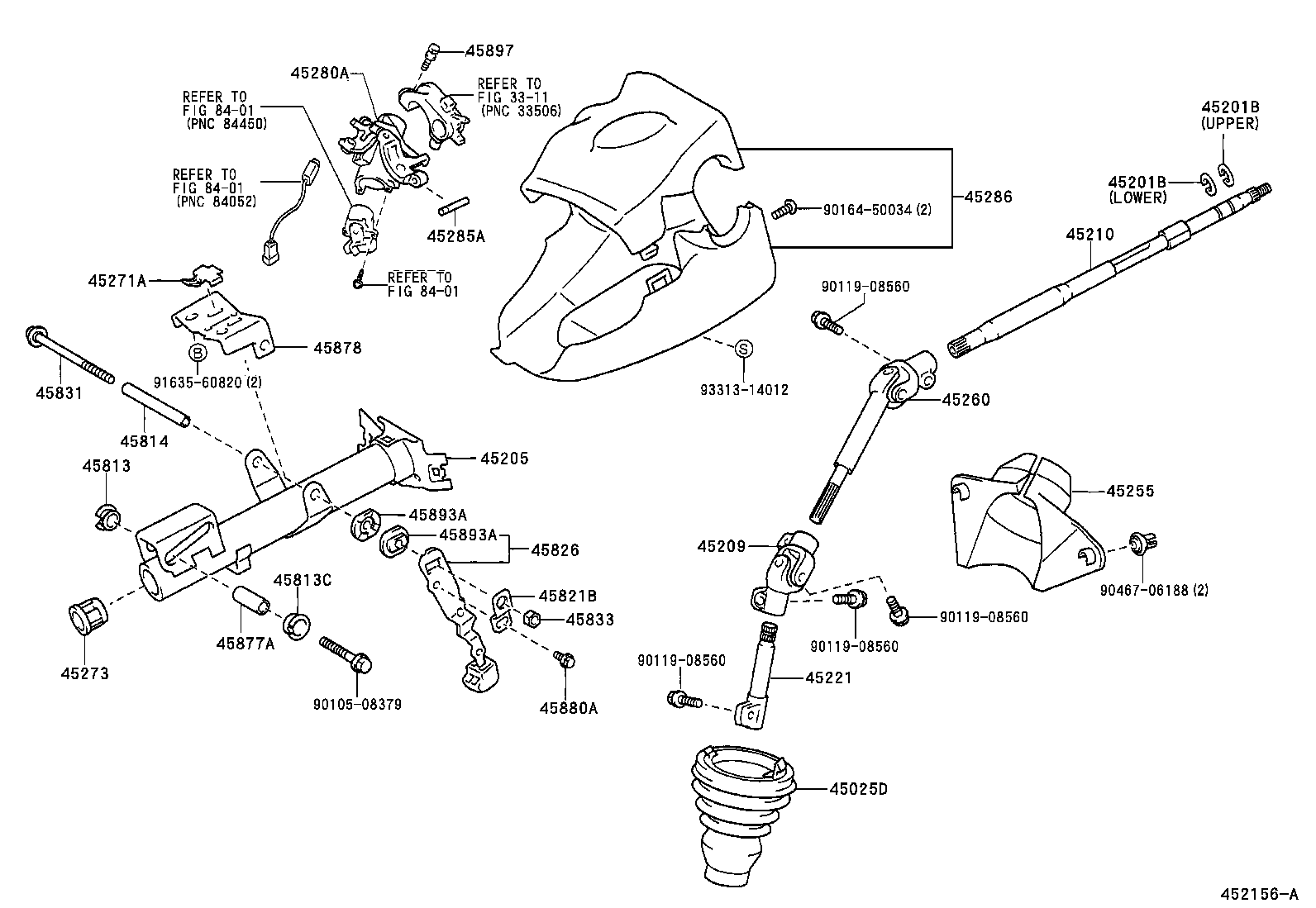

WILL VI | STEERING COLUMN SHAFT ** Refer Fig 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45205 - TUBE SUB-ASSY, STEERING COLUMN 45209 - YOKE SUB-ASSY, STEERING SLIDING 45210 - SHAFT ASSY, STEERING MAIN 45221 - SHAFT, STEERING INTERMEDIATE 45255 - PLATE, STEERING COLUMN HOLE COVER 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 45271A - CLAMP, STEERING COLUMN, UPPER NO.2 45273 - BUSH, STEERING MAIN SHAFT 45280A - BRACKET ASSY, STEERING COLUMN, UPPER 45285A - PIN, STEERING LOCK 45286 - COVER, STEERING COLUMN 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 45813C - COLLAR, TILT STEERING SUPPORT, NO.1 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 45826 - LEVER, STEERING TILT 45831 - BOLT, TILT LEVER LOCK, NO.1 45833 - NUT, TILT STEERING ADJUSTING, NO.1 45877A - SPACER, STEERING COLUMN BRACKET 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT 45880A - BOLT(FOR STEERING TILT LEVER) 45893A - STOPPER, TILT STEERING PAWL 45893A - STOPPER, TILT STEERING PAWL 45897 - BOLT, STEERING LOCK SET ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
