TOYOTA OPA ZCT10-ZHSEK / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR PANEL GLASS

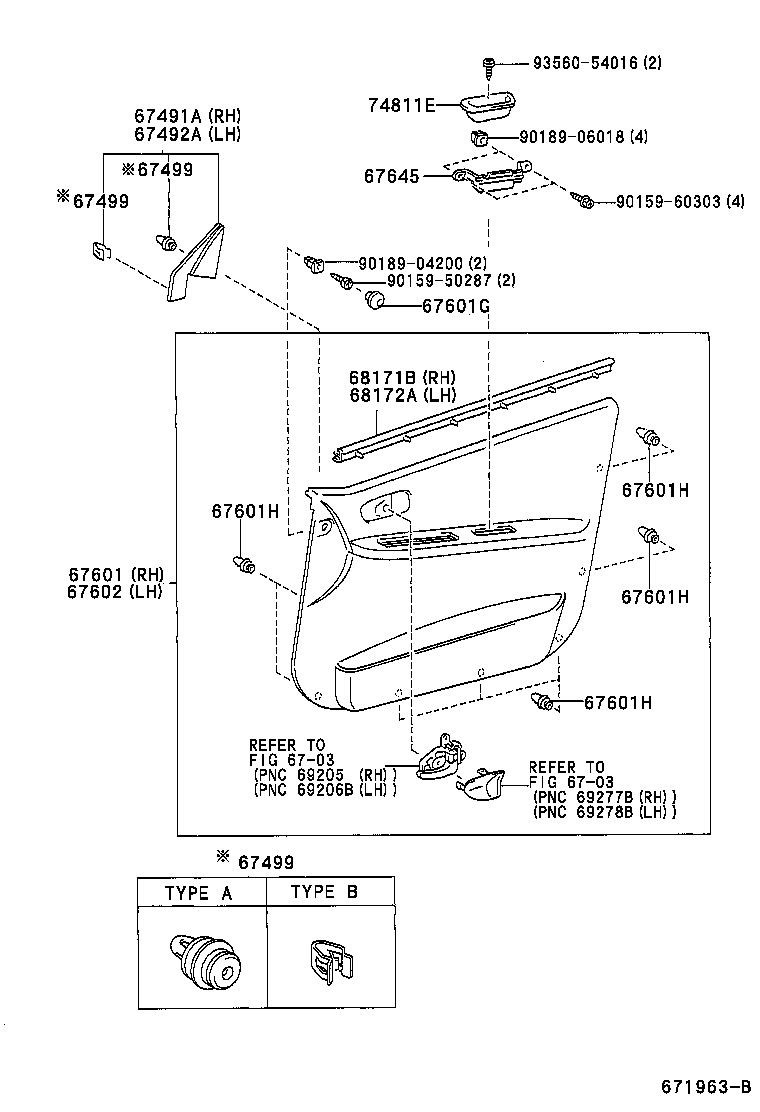

ILLUST NO. 1 OF 3(0004-0205)

OPA | FRONT DOOR PANEL GLASS ** Refer Fig ** Refer Fig 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) 67601H - RETAINER, DOOR TRIM, RH 67601H - RETAINER, DOOR TRIM, RH 67601H - RETAINER, DOOR TRIM, RH 67601H - RETAINER, DOOR TRIM, RH 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67645 - BRACKET, FRONT DOOR ARMREST SET, RH 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH 74811E - HANDLE, DOOR PULL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
