TOYOTA HILUX SURF KZN185G-GKPXH / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VALVE BODY OIL STRAINER ATM

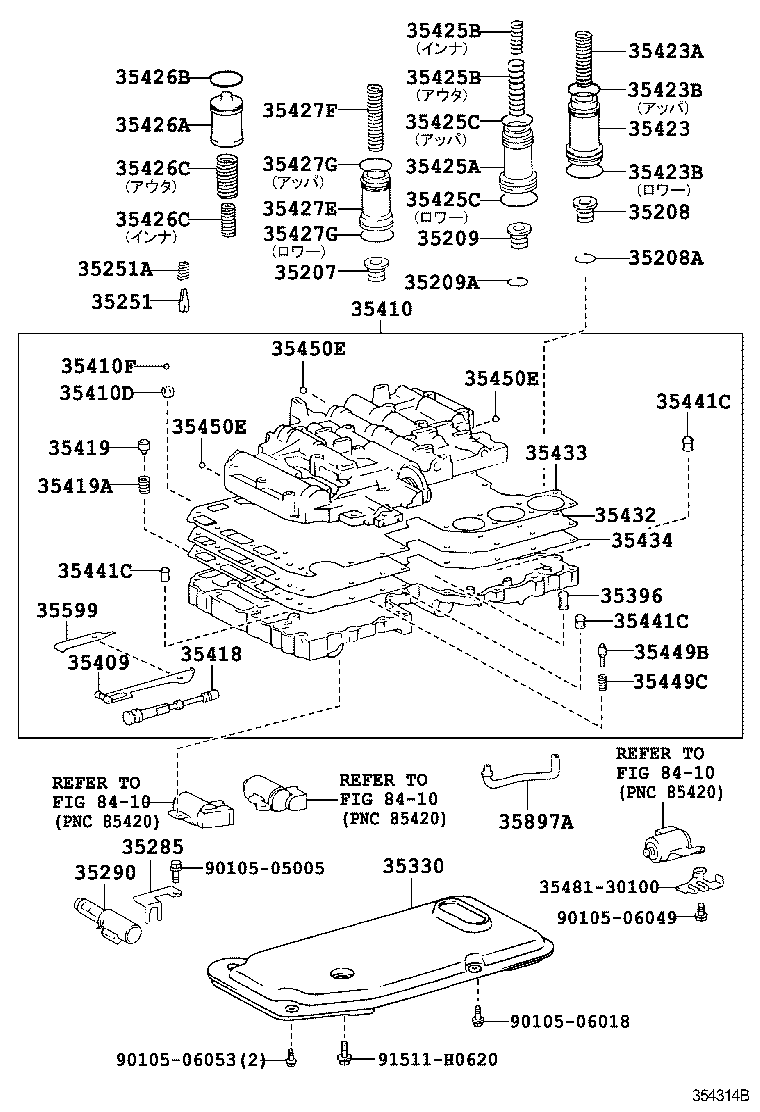

A340F ILLUST NO. 1 OF 4(9807-9908)KZN185..4FC

HILUX SURF | VALVE BODY OIL STRAINER ATM 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) 35251 - BODY, CHECK BALL 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) 35285 - PLATE, SOLENOID LOCK 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL 35330 - STRAINER ASSY, VALVE BODY OIL 35396 - STRAINER, THROTTLE OIL 35409 - SPRING SUB-ASSY, MANUAL DETENT 35410 - BODY ASSY, TRANSMISSION VALVE 35410D - VALVE, CHECK 35410F - BALL (FOR CHECK VALVE) 35418 - VALVE, MANUAL 35419 - VALVE, CHECK, NO.1 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) 35423 - PISTON, B-2 ACCUMULATOR 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35425A - PISTON, C-2 ACCUMULATOR 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35426A - PISTON, C-0 ACCUMULATOR 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) 35427E - PISTON, B-0 ACCUMULATOR 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) 35432 - PLATE, VALVE BODY, NO.1 35433 - GASKET, VALVE BODY, NO.1 35434 - GASKET, VALVE BODY, NO.2 35441C - STRAINER, SOLENOID OIL 35441C - STRAINER, SOLENOID OIL 35441C - STRAINER, SOLENOID OIL 35449B - VALVE, PRESSURE RELIEF 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) 35450E - BALL (FOR UPPER VALVE BODY) 35450E - BALL (FOR UPPER VALVE BODY) 35450E - BALL (FOR UPPER VALVE BODY) ** Std Part 35599 - COVER, MANUAL DETENT SPRING 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
