TOYOTA DYNA 200 TOYOACE G25 XZU130A-TMMQS3 / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

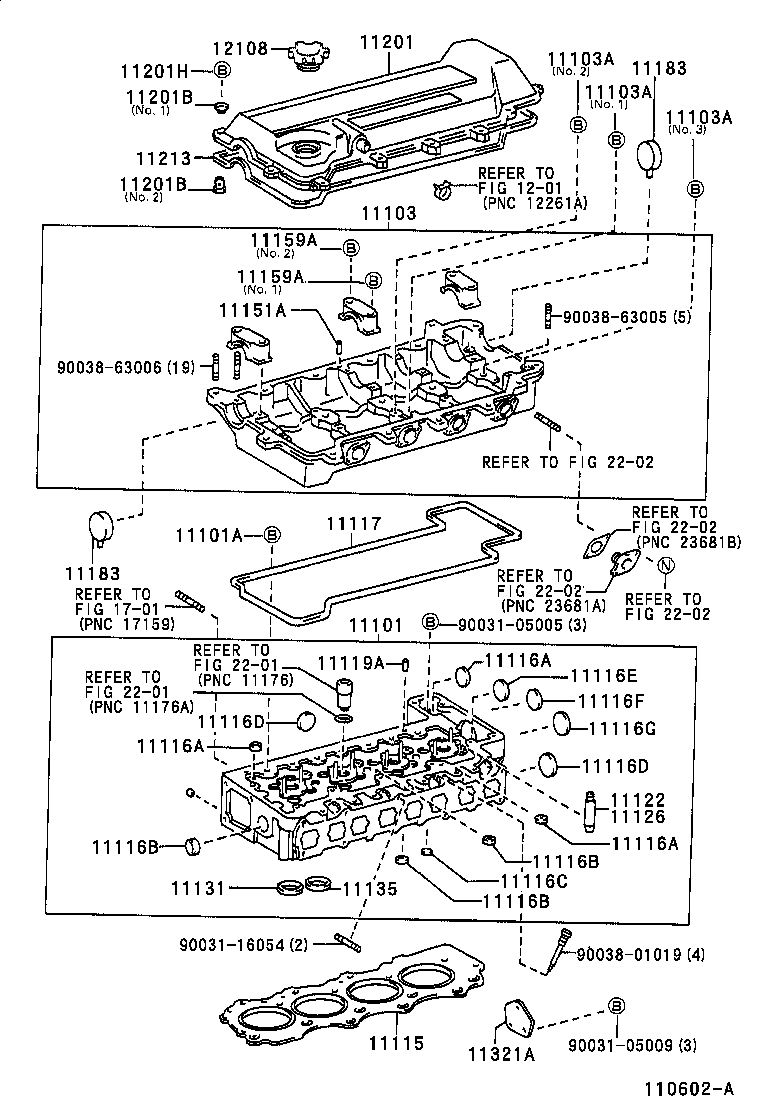

CYLINDER HEAD

(9510-9812)J05C

DYNA 200 TOYOACE G25 | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11103 - HOUSING SUB-ASSY, CAMSHAFT 11103A - BOLT(FOR CAMSHAFT HOUSING SET) 11103A - BOLT(FOR CAMSHAFT HOUSING SET) 11103A - BOLT(FOR CAMSHAFT HOUSING SET) 11115 - GASKET, CYLINDER HEAD 11116A - PLUG, TIGHT, NO.1 11116A - PLUG, TIGHT, NO.1 11116A - PLUG, TIGHT, NO.1 11116B - PLUG, TIGHT, NO.2 11116B - PLUG, TIGHT, NO.2 11116B - PLUG, TIGHT, NO.2 11116C - PLUG, TIGHT, NO.3 11116D - PLUG, TIGHT, NO.4 11116D - PLUG, TIGHT, NO.4 11116E - PLUG, TIGHT, NO.5 11116F - PLUG, TIGHT, NO.6 11116G - PLUG, TIGHT, NO.7 11117 - GASKET, CAMSHAFT HOUSING, NO.1 11119A - PIN, STRAIGHT, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11183 - PLUG, SEMICIRCULAR 11183 - PLUG, SEMICIRCULAR 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201H - BOLT(FOR CYLINDER HEAD COVER) 11213 - GASKET, CYLINDER HEAD COVER 11321A - COVER, TIMING GEAR ** Refer Fig 12108 - CAP SUB-ASSY, OIL FILLER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
