TOYOTA QUICK DELIVERY LY151-QLQDS / BODY / FRONT FLOOR PANEL FRONT FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FLOOR PANEL FRONT FLOOR MEMBER

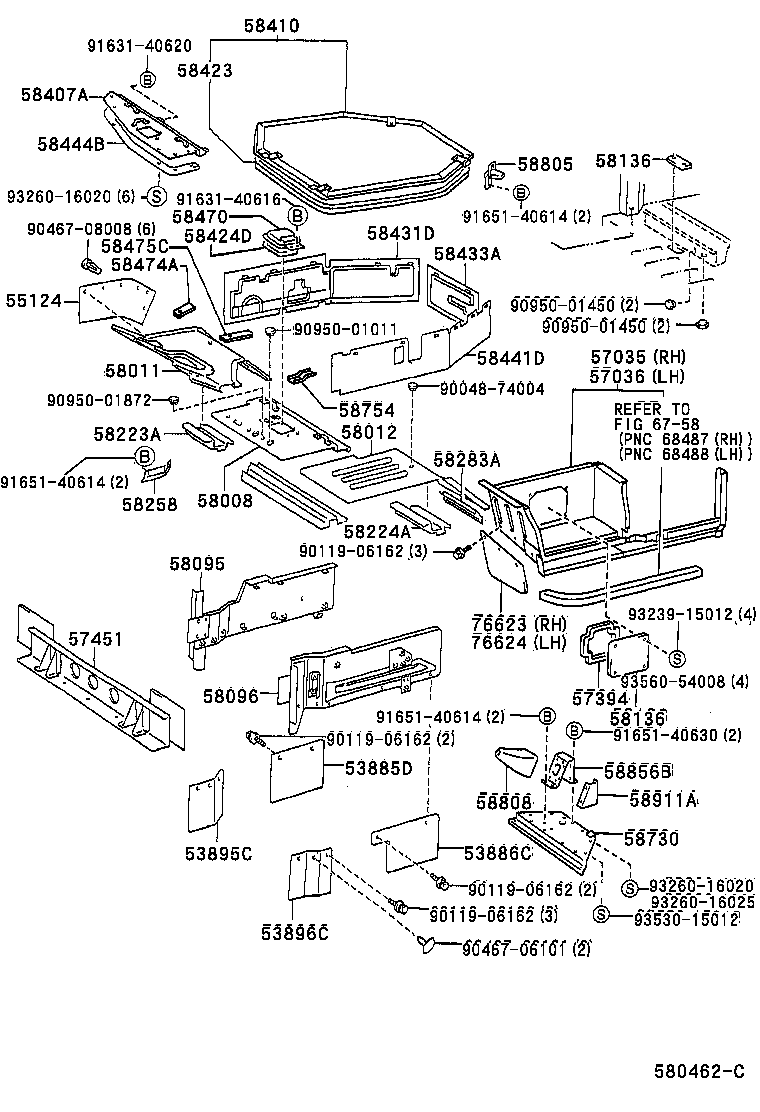

ILLUST NO. 1 OF 2(9505- )LY15#

QUICK DELIVERY | FRONT FLOOR PANEL FRONT FLOOR MEMBER 53885D - SHIELD, SIDE FLOOR APRON, REAR 53886C - SEAL, FENDER APRON MUDGUARD, LH 53895C - SHIELD, SIDE FLOOR APRON, FRONT RH 53896C - SHIELD, SIDE FLOOR APRON, FRONT LH 55124 - SHIELD, STEERING SUPPORT 57035 - PANEL SUB-ASSY, FRONT STEP, RH 57036 - PANEL SUB-ASSY, FRONT STEP, LH 57394 - PACKING, FRONT STEP SERVICE HOLE 57451 - MEMBER, FRONT FLOOR CROSS 58008 - PANEL SUB-ASSY, FRONT FLOOR, FRONT 58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH 58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH 58095 - PANEL SUB-ASSY, FRONT FLOOR APRON, RH 58096 - PANEL SUB-ASSY, FRONT FLOOR APRON, LH 58136 - COVER, FRONT FLOOR HOLE 58136 - COVER, FRONT FLOOR HOLE 58223A - REINFORCEMENT, FLOOR SIDE PANEL, RH 58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH 58258 - PLATE, WATER GUARD, NO.1 58283A - REINFORCEMENT, NO.2 SEAT, FRONT LH 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB 58410 - COVER, ENGINE SERVICE HOLE 58423 - PACKING, ENGINE SERVICE HOLE COVER, NO.2 58424D - PACKING, ENGINE COVER 58431D - SILENCER, ENGINE ROOM SIDE, FRONT RH 58433A - SILENCER, ENGINE ROOM SIDE END 58441D - SILENCER, ENGING ROOM SIDE, FRONT LH 58444B - PACKING, ENGINE SUB COVER 58470 - COVER ASSY, INSPECTION HOLE 58474A - PACKING, ENGINE SUB COVER, NO.2 58475C - PACKING, ENGIN SUB COVER, NO.3 58730 - COVER ASSY, ENGINE SERVICE, REAR 58754 - PLATE, ENGINE SERVICE COVER CATCH 58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER 58808 - COVER SUB-ASSY, SHIFTING HOLE 58856B - COVER, TRANSFER LEVER HOLE 58911A - PANEL, BOX SIDE, NO.1 ** Refer Fig 76623 - MUDGUARD, FRONT BODY, REAR RH 76624 - MUDGUARD, FRONT BODY, REAR LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
