TOYOTA QUICK DELIVERY BU68VH-QLQNS / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

(9505- )BU68

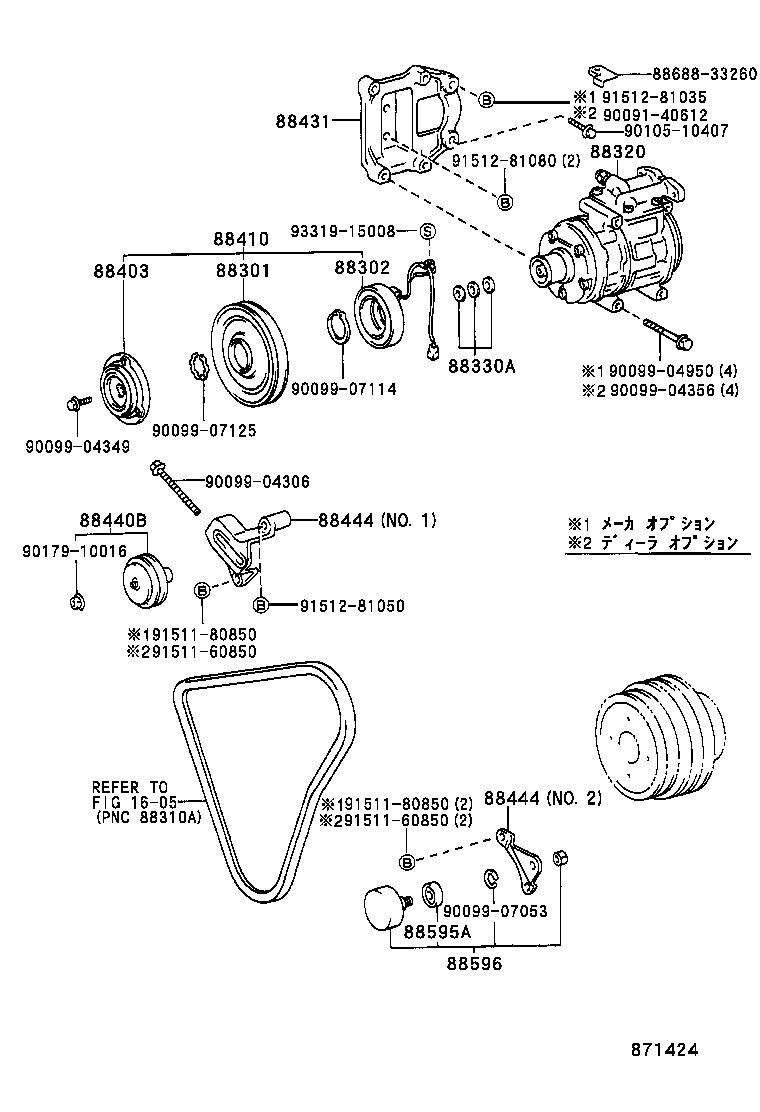

QUICK DELIVERY | HEATING AIR CONDITIONING COMPRESSOR ** Refer Fig 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH 88302 - STATOR SUB-ASSY, MAGNET CLUTCH 88320 - COMPRESSOR ASSY, COOLER 88330A - WASHER (FOR MAGNET CLUTCH) 88403 - HUB SUB-ASSY, MAGNET CLUTCH 88410 - CLUTCH ASSY, MAGNET 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 88440B - PULLEY ASSY, IDLE 88444 - BRACKET, IDLE PULLEY 88444 - BRACKET, IDLE PULLEY 88595A - BEARING (FOR COOLER IDLE PULLEY) 88596 - PULLEY ASSY, IDLE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
