TOYOTA MEGA CRUISER BXD20V-RRPEW / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SPRING SHOCK ABSORBER

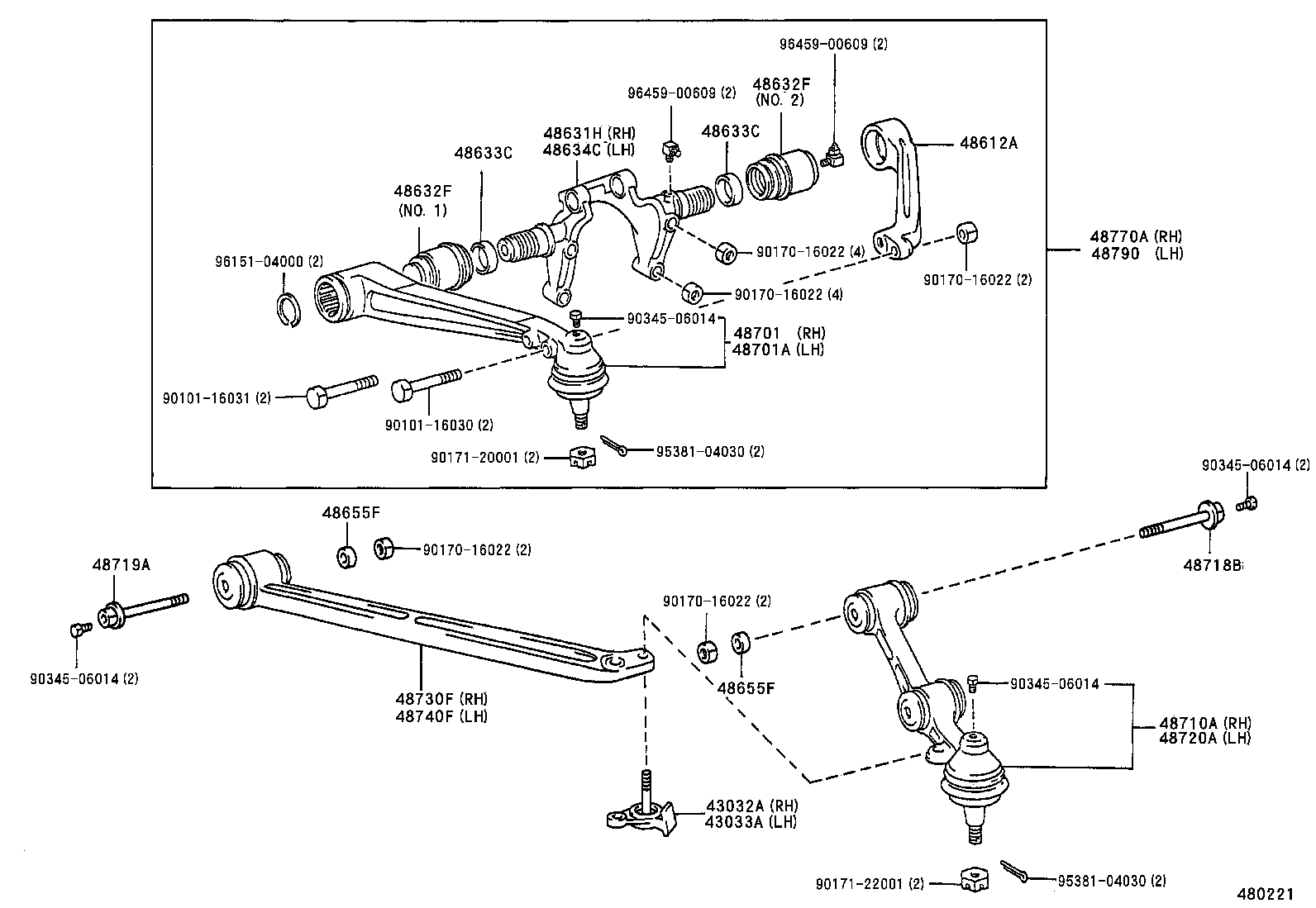

ILLUST NO. 1 OF 2(9601- )

MEGA CRUISER | REAR SPRING SHOCK ABSORBER 43032A - STOPPER SUB-ASSY, STEERING KNUCKLE, RH 43033A - STOPPER SUB-ASSY, STEERING KNUCKLE, LH 48612A - ARM, REAR UPPER CONTROL, NO.2 48631H - SHAFT, REAR UPPER ARM, NO.2 RH 48632F - BUSH, REAR SUSPENSION UPPER ARM 48632F - BUSH, REAR SUSPENSION UPPER ARM 48633C - SEAL, REAR SUSPENSION UPPER ARM PIVOT DUST 48633C - SEAL, REAR SUSPENSION UPPER ARM PIVOT DUST 48634C - SHAFT, REAR SUSPENTION UPPER ARM 48655F - BUSH, LWR ARM, NO.2 48655F - BUSH, LWR ARM, NO.2 48701 - ARM SUB-ASSY, UPPER CONTROL, RH 48701A - ARM SUB-ASSY, UPPER CONTROL, LH 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH 48718B - SHAFT, REAR SUSPENTION LOWER ARM, NO.1 48719A - SHAFT, REAR SUSPENTION LOWER ARM, NO.2 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH 48770A - ARM ASSY, UPPER CONTROL, REAR RH 48790 - ARM ASSY, UPPER CONTROL, REAR LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
