TOYOTA QUICK DELIVERY LH81VH-QLSDS / POWERTRAIN-CHASSIS / FRONT AXLE ARM STEERING KNUCKLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

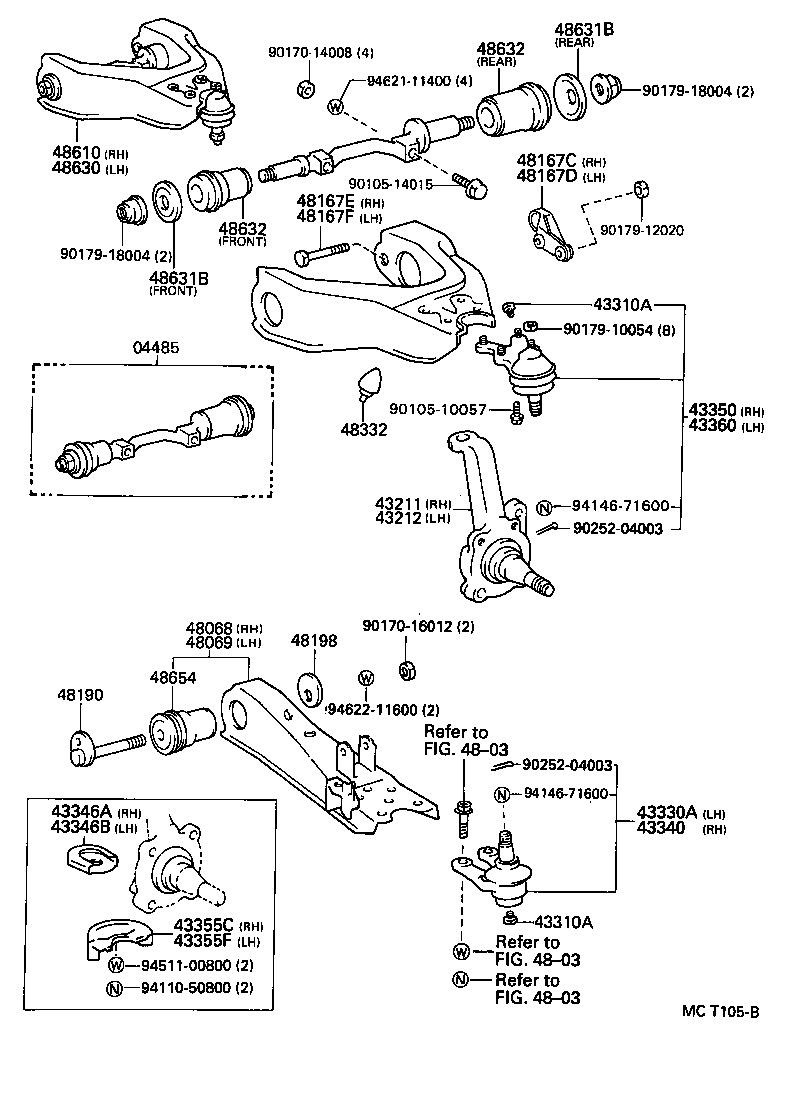

FRONT AXLE ARM STEERING KNUCKLE

(9505-9508)LH81

QUICK DELIVERY | FRONT AXLE ARM STEERING KNUCKLE 04485 - SHAFT KIT, UPPER SUSPENSION ARM 43211 - KNUCKLE, STEERING, RH 43212 - KNUCKLE, STEERING, LH 43310A - PLUG (FOR BALL JOINT) 43310A - PLUG (FOR BALL JOINT) 43330A - SERRATION BOLT(FOR FRONT LOWER BALL JOINT) 43340 - JOINT ASSY, LOWER BALL, FRONT 43346A - PROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH 43346B - PROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH 43350 - JOINT ASSY, FRONT UPPER BALL, RH 43355C - DEFLECTOR, LOWER ARM ICE, RH NO.1 43355F - DEFLECTOR, LOWER ARM ICE, RH NO.4 43360 - JOINT ASSY, FRONT UPPER BALL, LH ** Refer Fig ** Refer Fig ** Refer Fig 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH 48167C - ARM, FRONT SUSPENSION TORQUE, RH 48167D - ARM, FRONT SUSPENSION TORQUE, LH 48167E - BOLT(FOR FRONT SUSPENSION TORQUE ARM RH) 48167F - BOLT(FOR FRONT SUSPENSION TORQUE ARM LH) 48190 - CAM ASSY, CAMBER ADJUST 48198 - CAM, CAMBER ADJUST, NO.2 48332 - BUMPER, FRONT SPRING, NO.2 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) 48632 - BUSH, UPPER ARM 48632 - BUSH, UPPER ARM 48654 - BUSH, LOWER ARM ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
