TOYOTA GRANVIA GRAND HIACE RCH11W-GRSGK / ELECTRICAL / METER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

METER

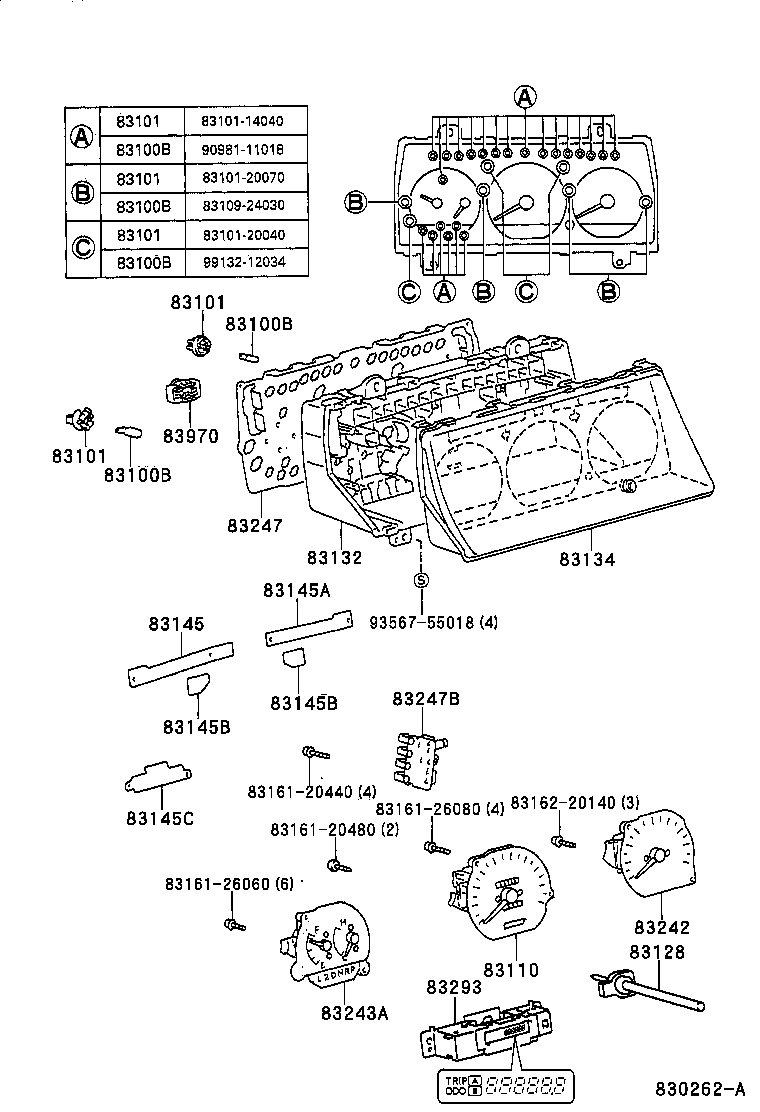

ｱﾅﾛｸﾞﾒ-ﾀ,ｱﾘ(ﾀｺﾒ-ﾀ) ILLUST NO. 1 OF 2(9508-9708)G

GRANVIA GRAND HIACE | METER 83100B - BULB, COMBINATION METER, NO.1 83100B - BULB, COMBINATION METER, NO.1 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83110 - SPEEDOMETER ASSY 83128 - KNOB, TRIP COUNTER 83132 - CASE, COMBINATION METER 83134 - COVER, COMBINATION METER, NO.1 83145 - LENS, METER, NO.1 83145A - LENS, METER, NO.2 83145B - LENS, METER, NO.3 83145B - LENS, METER, NO.3 83145C - LENS, METER, NO.4 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 83242 - TACHOMETER ASSY, ENGINE 83243A - GAUGE SUB-ASSY, FUEL RECEIVER 83247 - PLATE, METER CIRCUIT 83247B - PLATE, METER CIRCUIT, NO.2 83293 - COMPUTER, TOTAL COUNTER MODULE 83970 - BUZZER ASSY, REVERSE WARNING ** Std Part
