TOYOTA GRANVIA GRAND HIACE KCH12K-RRSDT / POWERTRAIN-CHASSIS / OIL COOLER TUBE ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

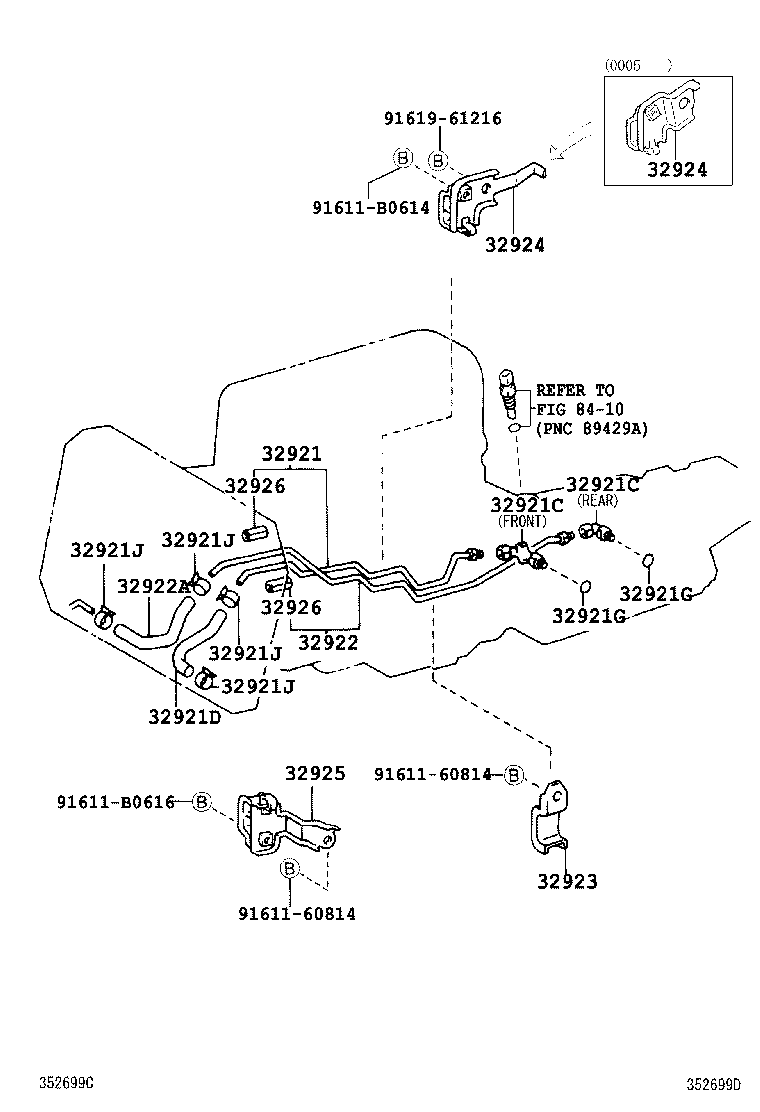

OIL COOLER TUBE ATM

A340E,A340F,A343F (9508- )KCH1#

GRANVIA GRAND HIACE | OIL COOLER TUBE ATM 32921 - TUBE, OIL COOLER INLET, NO.1 32921C - UNION(FOR OIL COOLER TUBE) 32921C - UNION(FOR OIL COOLER TUBE) 32921D - HOSE(FOR OIL COOLER INLET) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921J - CLIP(FOR OIL COOLER HOSE) 32921J - CLIP(FOR OIL COOLER HOSE) 32921J - CLIP(FOR OIL COOLER HOSE) 32921J - CLIP(FOR OIL COOLER HOSE) 32922 - TUBE, OIL COOLER OUTLET, NO.1 32922A - HOSE(FOR OIL COOLER OUTLET) 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE 32924 - CLAMP, OIL COOLER TUBE, NO.2 32924 - CLAMP, OIL COOLER TUBE, NO.2 32925 - CLAMP, OIL COOLER TUBE, NO.3 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
