TOYOTA DYNA TOYOACE BU73-MDPDT4 / POWERTRAIN-CHASSIS / POWER TAKE OFF LEVER LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

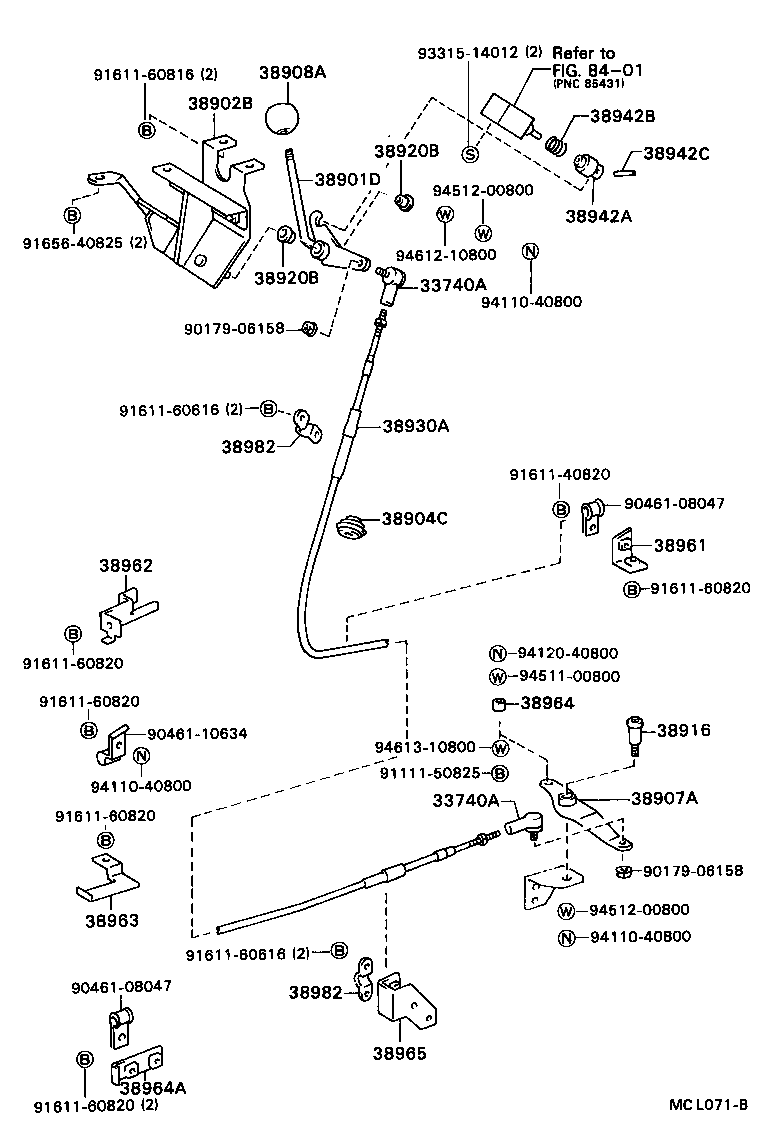

POWER TAKE OFF LEVER LINK

(9005- )BU73..IV4

DYNA TOYOACE | POWER TAKE OFF LEVER LINK 33740A - END ASSY, PUSH-PULL CONTROL CABLE 33740A - END ASSY, PUSH-PULL CONTROL CABLE 38901D - LEVER SUB-ASSY, VALVE CONTROL 38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER 38904C - GROMMET, PUSH PULL CABLE 38907A - LEVER SUB-ASSY, POWER TAKE-OFF CONTROL 38908A - KNOB SUB-ASSY, CONTROL LEVER 38916 - PIN, CONTROL SHIFT 38920B - BUSH (FOR POWER TAKE-OFF CONTROL LEVER) 38920B - BUSH (FOR POWER TAKE-OFF CONTROL LEVER) 38930A - CABLE ASSY, PUSH PULL 38942A - BUSH, CONTROL SHAFT 38942B - SPRING, COMPRESSION (FOR CONTROL SHAFT) 38942C - PIN, SLOTTED SPRING (FOR CONTROL SHAFT) 38961 - BRACKET, CABLE CLAMP, NO.1 38962 - BRACKET, CABLE CLAMP, NO.2 38963 - BRACKET, CABLE CLAMP, NO.3 38964 - COLLAR, CONTROL LEVER 38964A - BRACKET, CABLE CLAMP, NO.4 38965 - BRACKET, CABLE CLAMP, NO.5 38982 - CLAMP, PUSH PULL CABLE, NO.1 38982 - CLAMP, PUSH PULL CABLE, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
